GIGABYTE Z890 EAGLE WIFI7 PLUS Intel LGA 1851 ATX Motherboard, Support Core Ultra (Series 2), DDR5, 14+1+2 Power Phase, 4x M.2, PCIe 5.0, USB4, WiFi 7, 2.5GbE, EZ-Latch, D5 Bionic Corsa

Be the first to review this product...

Intel Socket LGA 1851: Ready to support Intel Core Ultra (Series 2) Processors.
Enhanced Power Solution: 14+1+2 Twin Digital VRM Design with premium chokes and capacitors for steady power delivery.
Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
Boost Your Memory: Compatible with DDR5 Memory and supports 4 DIMMs with Intel XMP Memory Module Support.

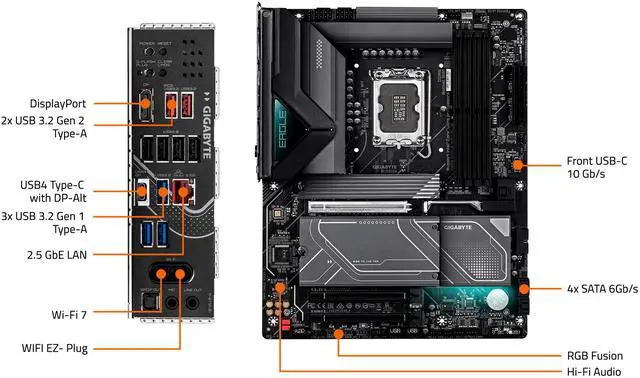

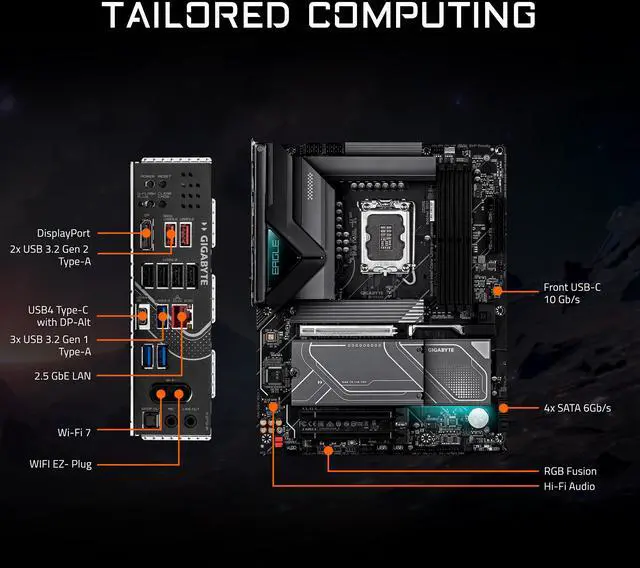

Comprehensive Connectivity: 1x PCIe 5.0 x16 slot with reinforced PCIe UD armor, 1x PCIe 5.0 M.2 slot, 3x PCIe 4.0 M.2 slots, 1x USB4 Type-C with DP-Alt, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A, and Front USB-C 10Gb/s for hassle-free setup.
Smooth Online Experience: WIFI7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 2.5 GbE LAN, and Bluetooth 5.4.
DIY Friendly Design: Smooth building experience with suite of easy building features, such as PCIe EZ-Latch Plus for single-click release design for GPU, M.2 EZ-Latch Click & Plus for screwless installation for M.2 heatsink and SSD, WIFI EZ-Plug for quick installation for the WIFI antenna, DriverBIOS for pre-installed WiFi driver, and Rear EZ Buttons for orgranized troubleshooting.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Q-Flash Plus: Effortlessly upgrade your BIOS without installing CPU, RAM, or GPU.

Overview

Specs

Reviews

Model
Brand	GIGABYTE
Model	Z890 EAGLE WIFI7 PLUS

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support up to DDR5 9466+MT/s (OC)
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Expansion Slots
PCI Express 5.0 x16	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x4	Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	BLUETOOTH 5.4

Rear Panel Ports

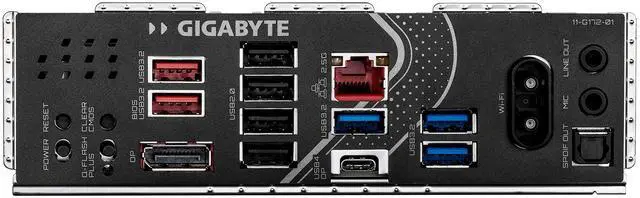

Back I/O Ports	1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 2 x audio jacks 1 x optical S/PDIF Out connector

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
BIOS Feature	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Additional Information
First Listed on Newegg	March 30, 2026
