Main image of GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 2 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 3 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 4 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 5 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 6 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 7 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Alt view image 8 of 8 - GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Customer images

Shop All GIGABYTE Products | Visit Slava Computers Store

GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Name: GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard
Brand: GIGABYTE
SKU: N82E16813145397
Price: 296.90 CAD
Availability: InStock
Rating: 4 (423 reviews)

(423)(45) Write a Review

Option: Z690I AORUS ULTRA LITE

Z690 AORUS PRO
Z690 AORUS XTREME
Z690I AORUS ULTRA LITE

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMS
Commanding Power Design: 10+2+1 Phases Digital VRM Solution with 105A Power Stage, 10-Layer PCB
Cutting-Edge Thermal Design: Advanced Thermal Solution with Fins Array II and Thermal Guards III
Next Gen Connectivity: PCIe 3.0, Dual NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
Fast Networking: Intel WiFi 6 AX201, Intel 2.5GbE LAN, BT 5.2
Dynamic Audio: AMP-UP Audio with ALC4080 and WIMA
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU

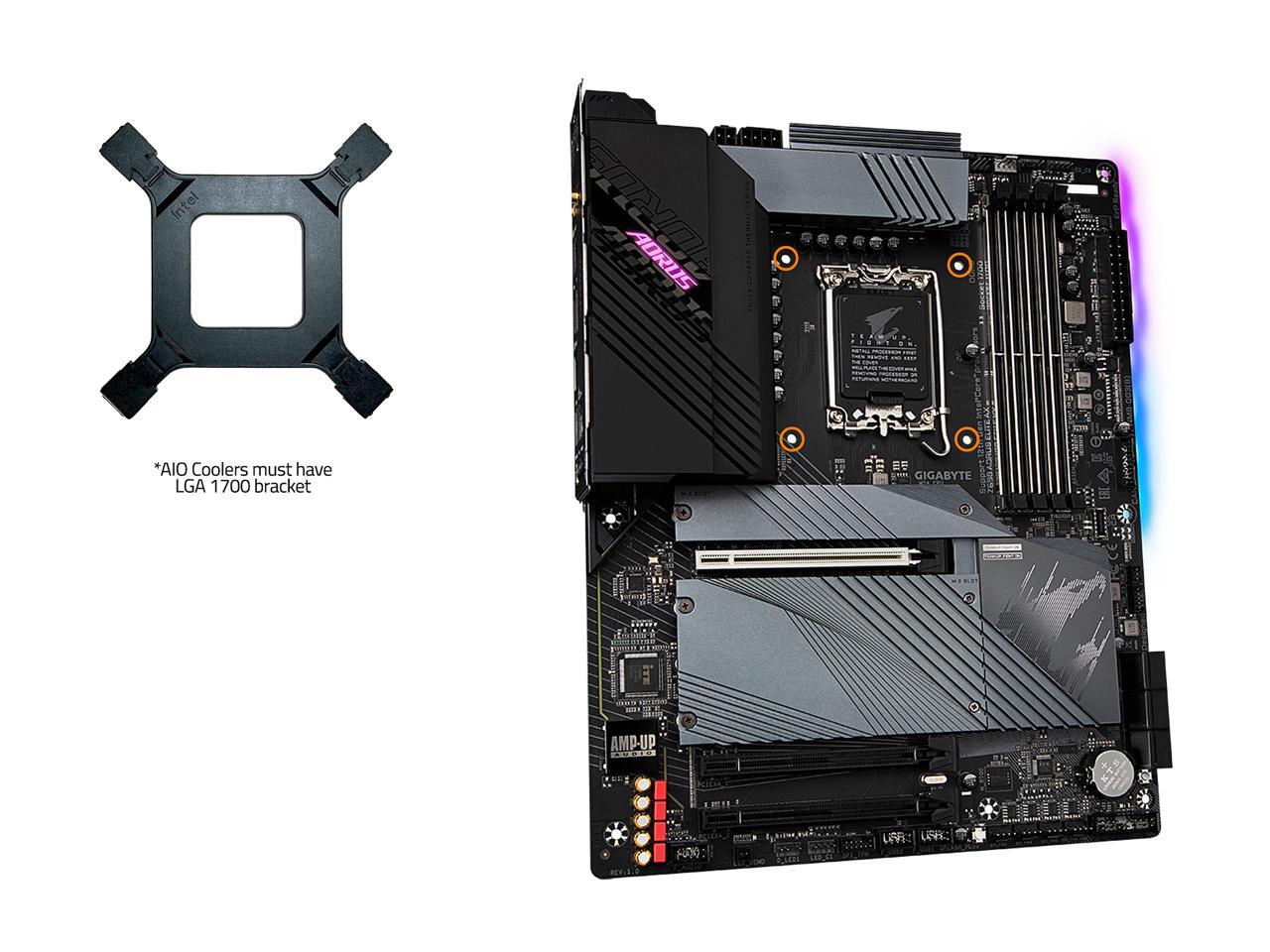

Only Compatible with Intel LGA1700 Cooling Brackets

Overview

Specs

Reviews (423)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by Slava Computers Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Number of Memory Slots	2x288pin (DDR5)
Memory Standard	DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel Optane Ready	Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

Audio Chipset	Realtek ALC4080
Audio Channels	2 Channels

Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 AX201 WIFI a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Meet Your Seller

GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

Learn more about the GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0)

Customer Reviews of the GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header(Note 1) (Note 1) The connector is on the front of GC-Z690I BTB PLUG.
Other Connectors	1 x external power connector(Note 1) 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1)) 1 x addressable LED strip header(Note 1) 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header(routed from the adapter card on the rear panel) 1 x speaker header 1 x reset button(Note 1) 1 x reset jumper 1 x Clear CMOS jumper (Note 1) The connector is on the front of GC-Z690I BTB PLUG. * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Form Factor	Mini ITX
LED Lighting	RGB
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
