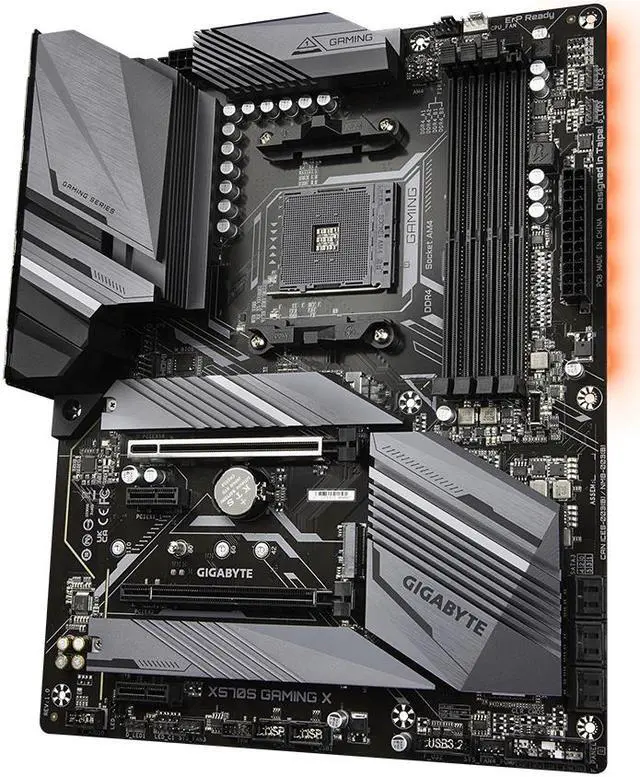

Main image of GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Alt view image 2 of 5 - GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Alt view image 3 of 5 - GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Alt view image 4 of 5 - GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Alt view image 5 of 5 - GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Shop All GIGABYTE Products

GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Name: GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard
Brand: GIGABYTE
SKU: N82E16813145483
Rating: 5 (4 reviews)

(4) Write a Review

Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen Processors
Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
Dual Channel ECC / Non-ECC Unbuffered DDR4 memory, 4 DIMMs
High-bandwidth and low-latency network support by 2.5GbE LAN
Front and rear USB 3.2 Type-C connectors
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Overview

Specs

Reviews (4)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

CPU Socket Type	AM4
CPU Type	Ryzen 2000 Series / Ryzen 2000G Series / Ryzen 3000 Series / Ryzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

PCI Express 4.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot. (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. * Actual support may vary by AMD CPU's specification
PCI Express x1	2 x PCI Express x1 slots, integrated in the Chipset, supporting PCIe 4.0(Note)/3.0 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
SATA RAID	0/1/10

Audio Chipset	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Audio Channels	7.1 Channels

GIGABYTE X570S Gaming X AMD Ryzen 5000 PCIe 4.0 SATA 20Gb/s USB 3.2 AMD X570S ATX Motherboard

Learn more about the GIGABYTE X570S GAMING X

Customer Reviews of the GIGABYTE X570S GAMING X

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	2.5Gbps

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
