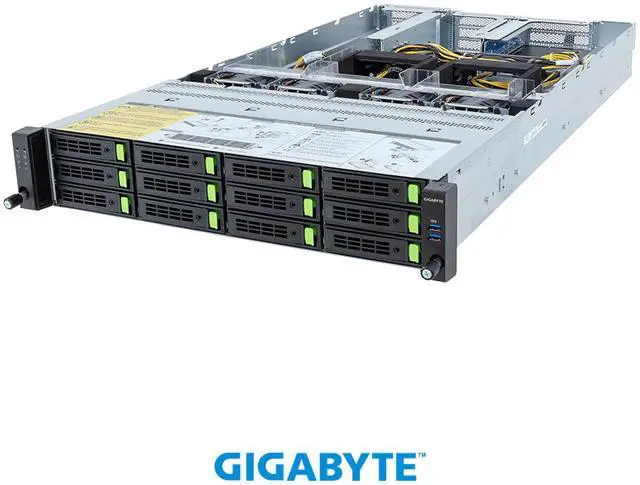

GIGABYTE R283-SF0-AAL1 Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 4 x PCIe Gen5 GPUs (12 x drives)
- Supports up to 4 x Dual slot Gen5 GPUs
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 1 x FHHL PCIe Gen5 x16 slot
- 1 x OCP NIC 3.0 Gen5 x16 slot
- Dual 2700W 80 PLUS Titanium redundant power supply
+
+
Specs
Reviews
Learn more about the GIGABYTE R283-SF0-AAL1
| Brand | GIGABYTE |
|---|---|
| Model | R283-SF0-AAL1 |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Supports 4th/5th Generation Intel Xeon Scalable and Intel Xeon CPU Max Series Processor |
|---|---|
| CPU Socket | LGA 4677 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| CPU Features | Dual processor, TDP up to 350W |
| North Bridge | Intel C741 |
|---|
| Memory Slots | 32 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | 5th Gen Intel Xeon: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel Xeon: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel Xeon Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Channel Supported | 8 Channel |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|
| GPU/VPU | Aspeed AST2600 |
|---|
| PCI Express | 4 x FHFL PCIe Gen5 x16 slots for GPUs 1 x FHHL PCIe Gen5 x16 slot 1 x OCP NIC 3.0 Gen5 x16 slot |
|---|
| Max. LAN Speed | 1 Gigabit |
|---|
| Hot-Swap Bays | Front hot-swap: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 - (6 x NVMe from CPU_0, 6 x NVMe from CPU_1) |
|---|
| Buttons | 1 x NMI button 1 x Reset button |
|---|---|
| LEDs | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED |
| Front USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| DisplayPort | 1 x Mini DisplayPort |
| Rear USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| RJ45 | 2 |
| Other Ports | 1 x MLAN |
| Max. Power | Dual 2700W 80 PLUS Titanium redundant power supply |
|---|
| Fans | 1 x 40x40x28mm (34,000rpm) 4 x 80x80x38mm (18,300rpm) |
|---|
| Temperature | Operating temperature: 10°C to 30°C Non-operating temperature: -40°C to 60°C |
|---|---|
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 3.44" x 17.24" x 32.09" |
|---|---|
| Weight | 64.73 lbs. |
| Package Contents | 1 x R283-SF0-AAL1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 100mm) 1 x GPU power cable (12VHPWR, 300mm) 1 x GPU power cable (12VHPWR, 450mm) 1 x GPU power cable (12VHPWR, 650mm) 6 x Carriers 1 x 2-Section Rail kit |
|---|
| First Listed on Newegg | August 18, 2025 |
|---|
