Main image of GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Alt view image 2 of 7 - GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Alt view image 3 of 7 - GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Alt view image 4 of 7 - GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Alt view image 5 of 7 - GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Alt view image 6 of 7 - GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Alt view image 7 of 7 - GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Shop All GIGABYTE Products

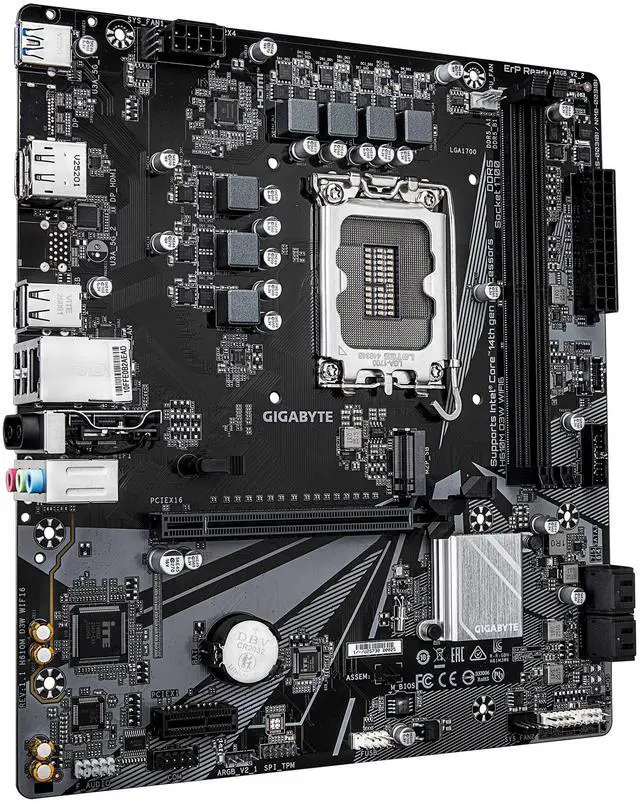

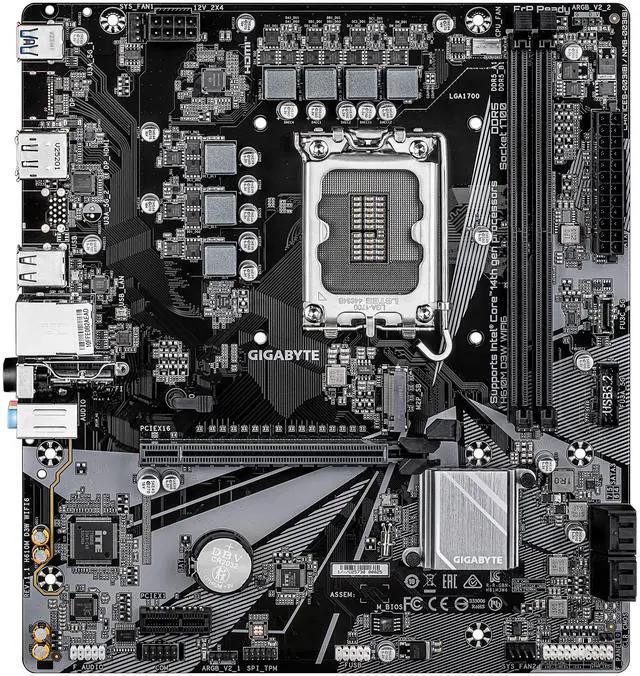

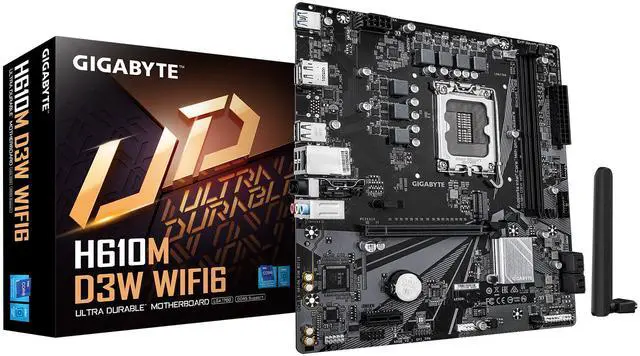

GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Intel LGA 1700 Socket: Ready to support 14th, 13th, and 12th Gen Intel Core Processors.
Enhanced Power Solutions: Hybrid Digital 5+1+1 Power Phase with PCIe 4.0 Ready PCB and 50A Low RDS (on) MOSFETs for steady power delivery.
Thermal Armor: Chipset heatsinks for better heat dissipation.
Boost Your Memory Performance: Compatible with DDR5 Memory and supports 2 DIMMs with Intel XMP Memory Module Support.

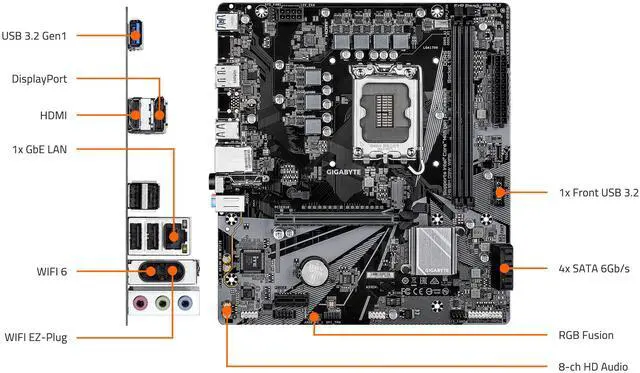

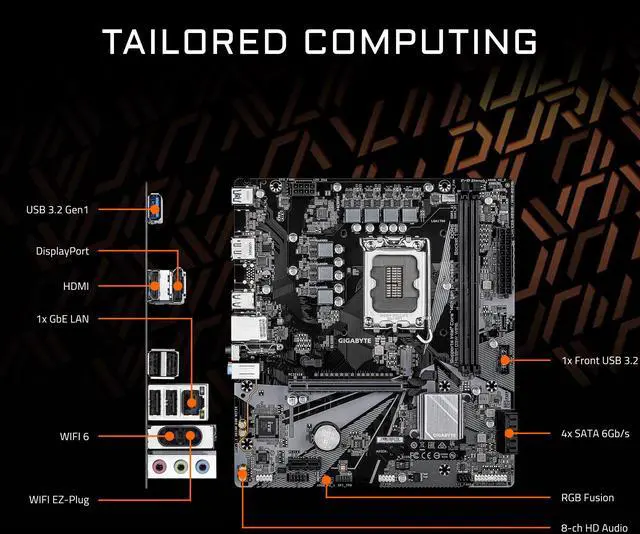

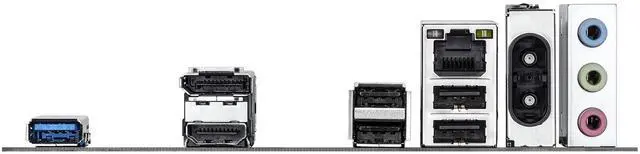

Comprehensive Connectivity: 1x PCIe Gen4 x16 reinforced slot, 1x PCIe 3.0 M.2 slot, 1x USB 3.2 Gen 1 Type-A, Front USB 3.2 Gen 1 Type-A, and Front USB 3.2 Gen 1 Type-C.
Smooth Online Experience: WIFI6 for smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps, GbE LAN, and Bluetooth 5.3.
DIY Friendly Design: Smooth building experience with suite of easy building features, such as WIFI EZ-Plug for quick installation for the WIFI antenna.
Friendly UI: Smart Fan 6 and Q-Flash in BIOS. Effortlessly upgrade your BIOS without entering operating system.

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Number of Memory Slots	2x288pin (DDR5)
Memory Standard	Support up to DDR5 5600 MT/s memory module
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

PCI Express 4.0 x16	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)

Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	BLUETOOTH 5.3

GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard, Supports 14th/13th/12th Gen Intel Processors, 5+1+1 Power Phase, DDR5, 1x M.2, PCIe 4.0 x16, USB 3.2 Gen 1, WIFI6, GbE LAN, WIFI EZ-Plug

Learn more about the GIGABYTE H610M D3W WIFI6

Customer Reviews of the GIGABYTE H610M D3W WIFI6

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.7"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
