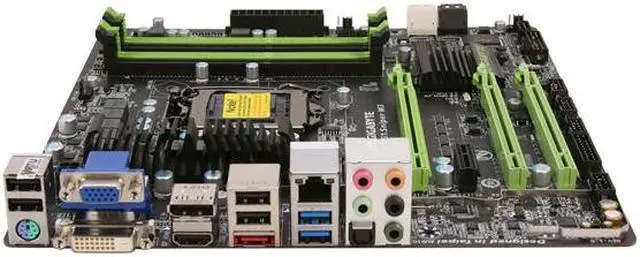

Main image of GIGABYTE G1.Sniper M3 LGA 1155 Intel Z77 HDMI USB 3.0 Micro ATX Intel Motherboard

Shop All GIGABYTE Products

GIGABYTE G1.Sniper M3 LGA 1155 Intel Z77 HDMI USB 3.0 Micro ATX Intel Motherboard

Be the first to review this product...

Intel Z77
Core i7 / i5 / i3 (LGA1155)
DDR3 2400(OC)/1600/1333/1066

Overview

Specs

Reviews

Model
Brand	GIGABYTE
Model	G1.Sniper M3

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 (LGA1155)

Chipsets
Chipset	Intel Z77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 2400(OC)/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 (x16, x8)
PCI Express 2.0 x16	1 @x4
PCI Express x1	1 x PCI Express x1

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Creative CA0132
Audio Channels	6 Channels

Onboard LAN
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
eSATA	1 x eSATA 3Gb/s
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 6 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x System fan headers 1 x front panel header 1 x front panel audio header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin

Features
Features	GIGABYTE 3D Power: Digital Voltage, Frequency and Phase Control GIGABYTE 3D BIOS Super Sight Super Hearing Super Speed Super Shield 3rd Generation Intel Core processors Intel Rapid Start Technology Designed for PCI Express Gen.3 Support Intel Smart Connect Technology GIGABYTE Ultra Durable 4 - Insist on an Ultra Durable Motherboard

Additional Information
First Listed on Newegg	July 18, 2012
