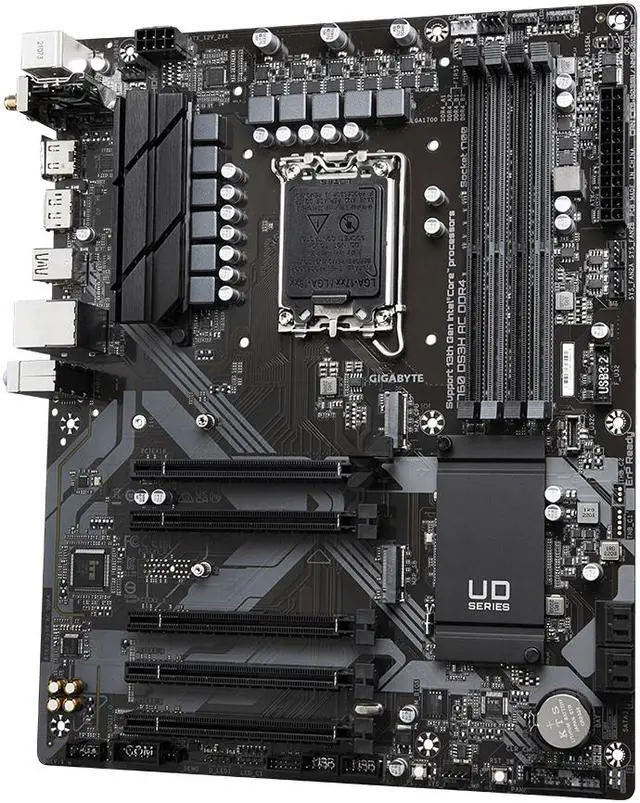

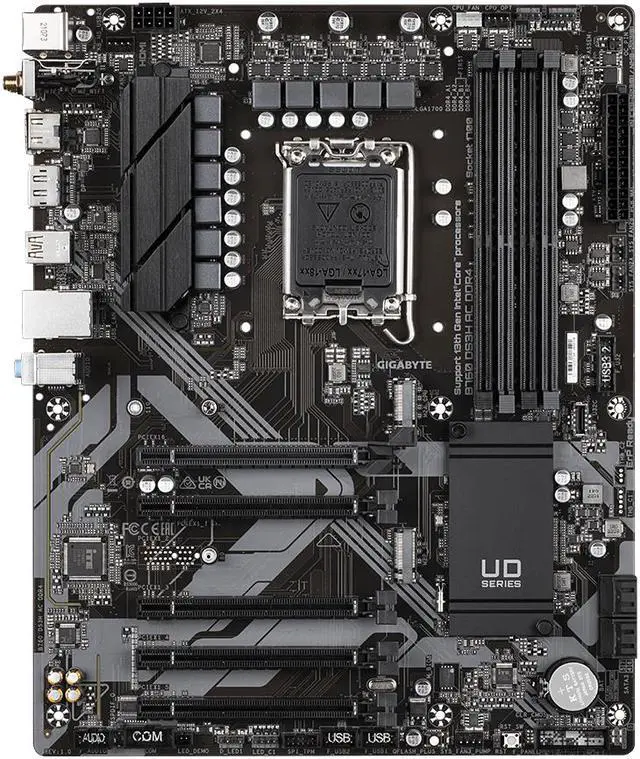

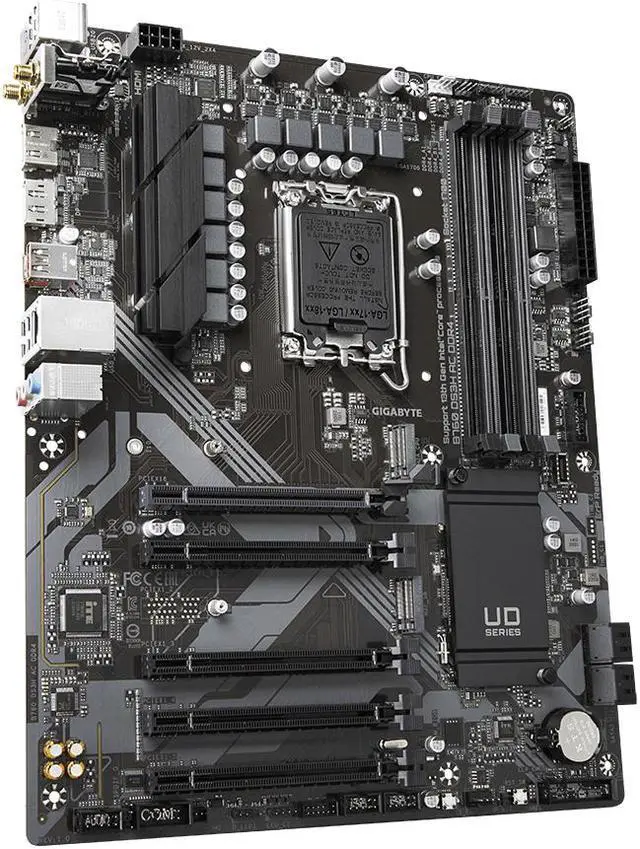

Main image of GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 2 of 5 - GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 3 of 5 - GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 4 of 5 - GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 5 of 5 - GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Customer images

Shop All GIGABYTE Products | Visit Hot Deals 4 Less Store

GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Name: GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash
Brand: GIGABYTE
SKU: N82E16813145448
Rating: 4 (145 reviews)

(145)(17) Write a Review

Option: B760 DS3H AC DDR4

B760M AORUS ELITE AX
B760 GAMING X AX DDR4
B760M GAMING X AX DDR4
B760M DS3H AX DDR4
B760M DS3H DDR4
B760I AORUS PRO DDR4
B760M DS3H AX
B760 GAMING X AX
B760 AORUS ELITE AX
B760 DS3H AC DDR4
B760M C
B760M GAMING PLUS WIFI DDR4

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
Sturdy Power Design: Hybrid 8+2+1 Phases Digital VRM Solution
Next Gen Connectivity: PCIe 4.0, M.2, USB 3.2 Gen 2 Type-C
Fast Networking: LAN, Realtek Wi-Fi
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Overview

Specs

Reviews (145)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Hot Deals 4 Less Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	0/1/5/10

Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ac
Bluetooth	Bluetooth 4.2

Meet Your Seller

GIGABYTE B760 DS3H AC DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi Realtek GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Learn more about the GIGABYTE B760 DS3H AC DDR4

Customer Reviews of the GIGABYTE B760 DS3H AC DDR4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
