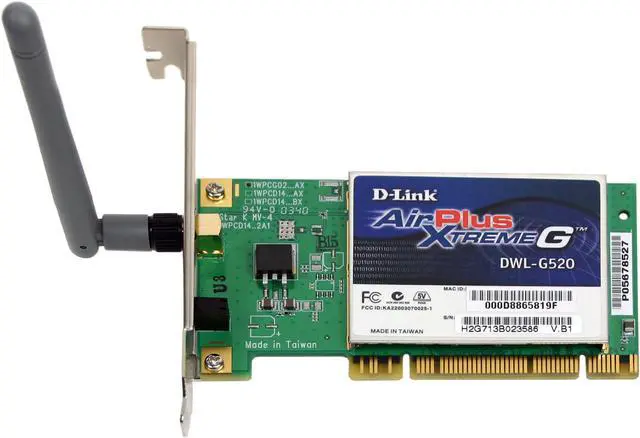

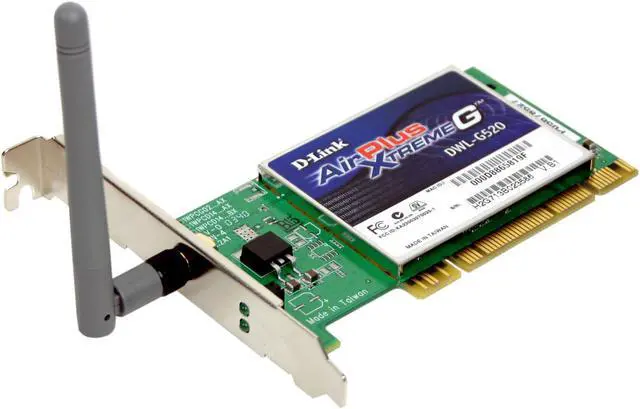

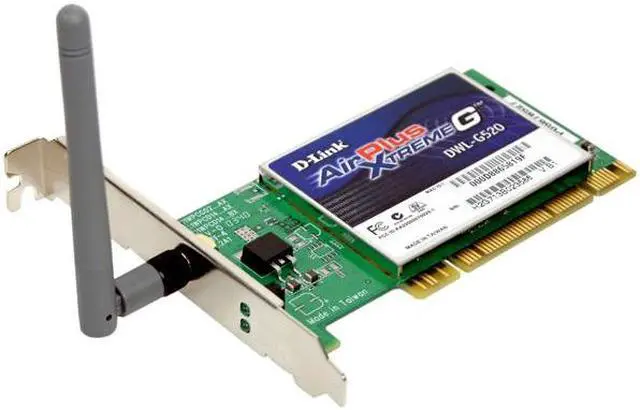

D-Link DWL-G520 High Speed Wireless Adapter IEEE 802.11, 802.11b/g 32bit PCI2.2 Up to 108Mbps Wireless Data Rates

Name: D-Link DWL-G520 32bit PCI2.2 High Speed Wireless Adapter
Brand: D-Link
SKU: N82E16833127118
Rating: 4 (158 reviews)

Specs

Reviews (158)

Learn more about the D-Link DWL-G520

Model
Brand	D-Link
Model	DWL-G520

Details
Standards	IEEE 802.11, 802.11b/g
Wireless Data Rates	Up to 108Mbps
Security	64, 128-WEP 802.1x WPA—Wi-Fi Protected Access (64/128-bit WEP with TKIP, MIC, IV Expansion, Shared Key Authentication)
Interface	32bit PCI2.2
Frequency Band	2.4 GHz - 2.462 GHz
Modulation	OFDM, CCK
Transmitted Power	15 dBm ± 2dB
Antenna	Dipole with detachable reverse SMA connector
Operating Range	Indoors: Up to 328 feet (100 meters) Outdoors: Up to 1,312 feet (400 meters)

Feature
Features	Wireless Signal Rates With Automatic Fallback: D-Link 108G: 108 Mbps,54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 11 Mbps, 9 Mbps, 6 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps Media Access Control: CSMA/CA with ACK Power Consumption: PowerSave mode = 28 mA, Standby mode = 4.66 mA, Transmit mode = 248 mA

Dimensions & Weight
Dimensions	4.6" x 2.1"x 0.3"
Weight	0.12 lbs.

Environmental
Temperature	0°C - 55°C (32°F - 131°F)
Humidity	95% Maximum, Non-Condensing

Packaging

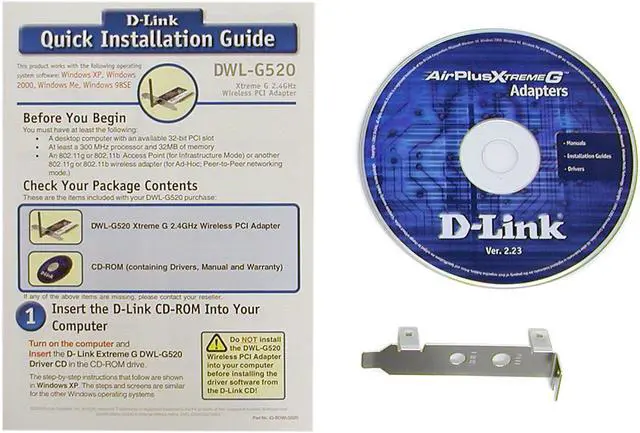

Package Contents	DWL-G520 Resource Disk Quick Installation Guide Bracket

Additional Information
First Listed on Newegg	April 16, 2003
