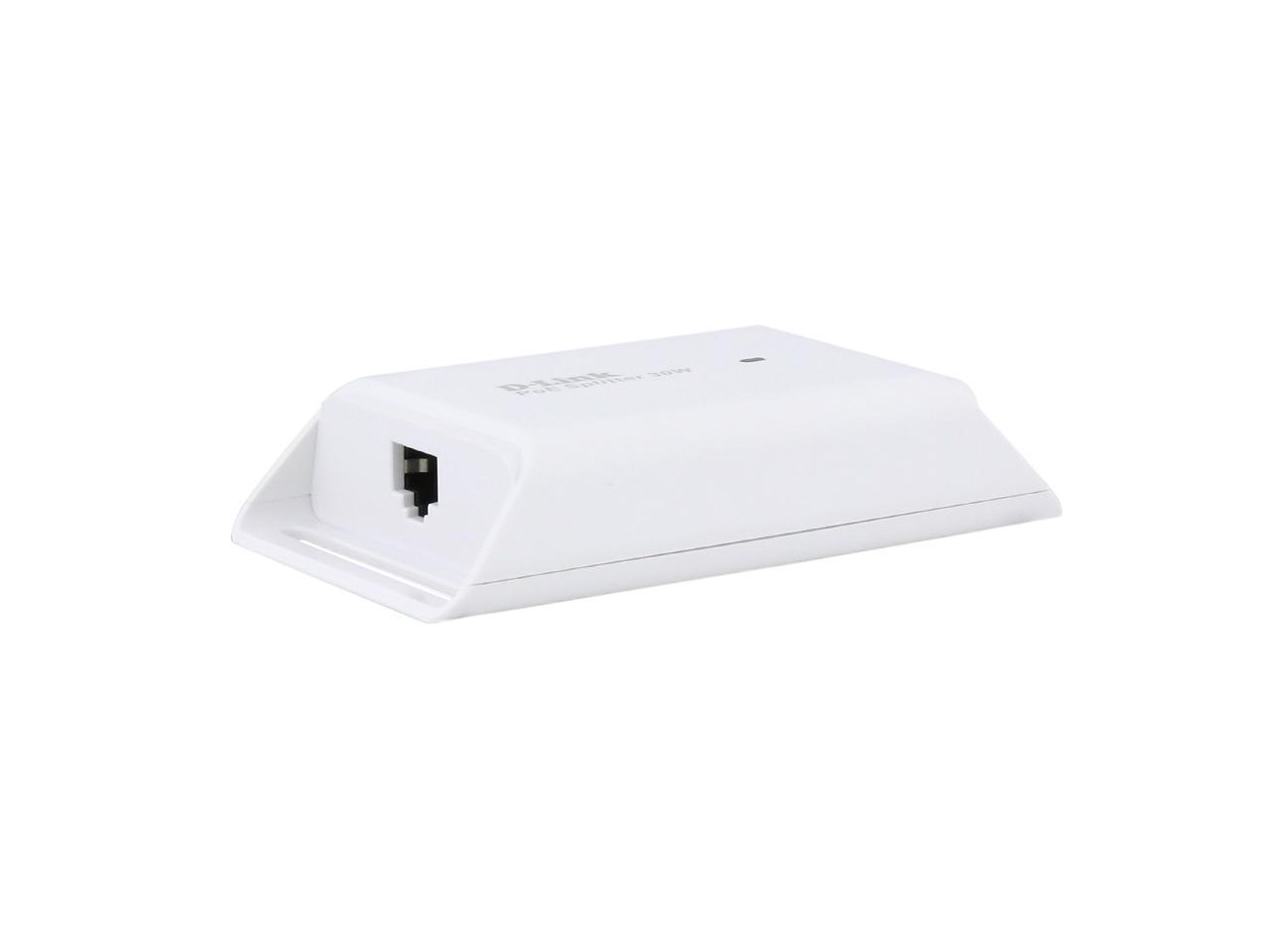

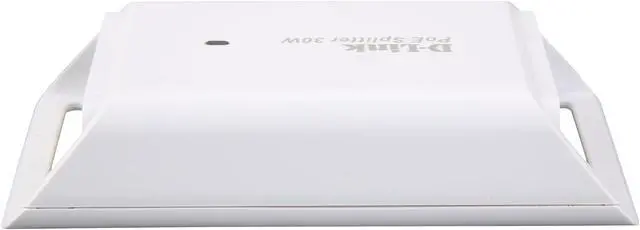

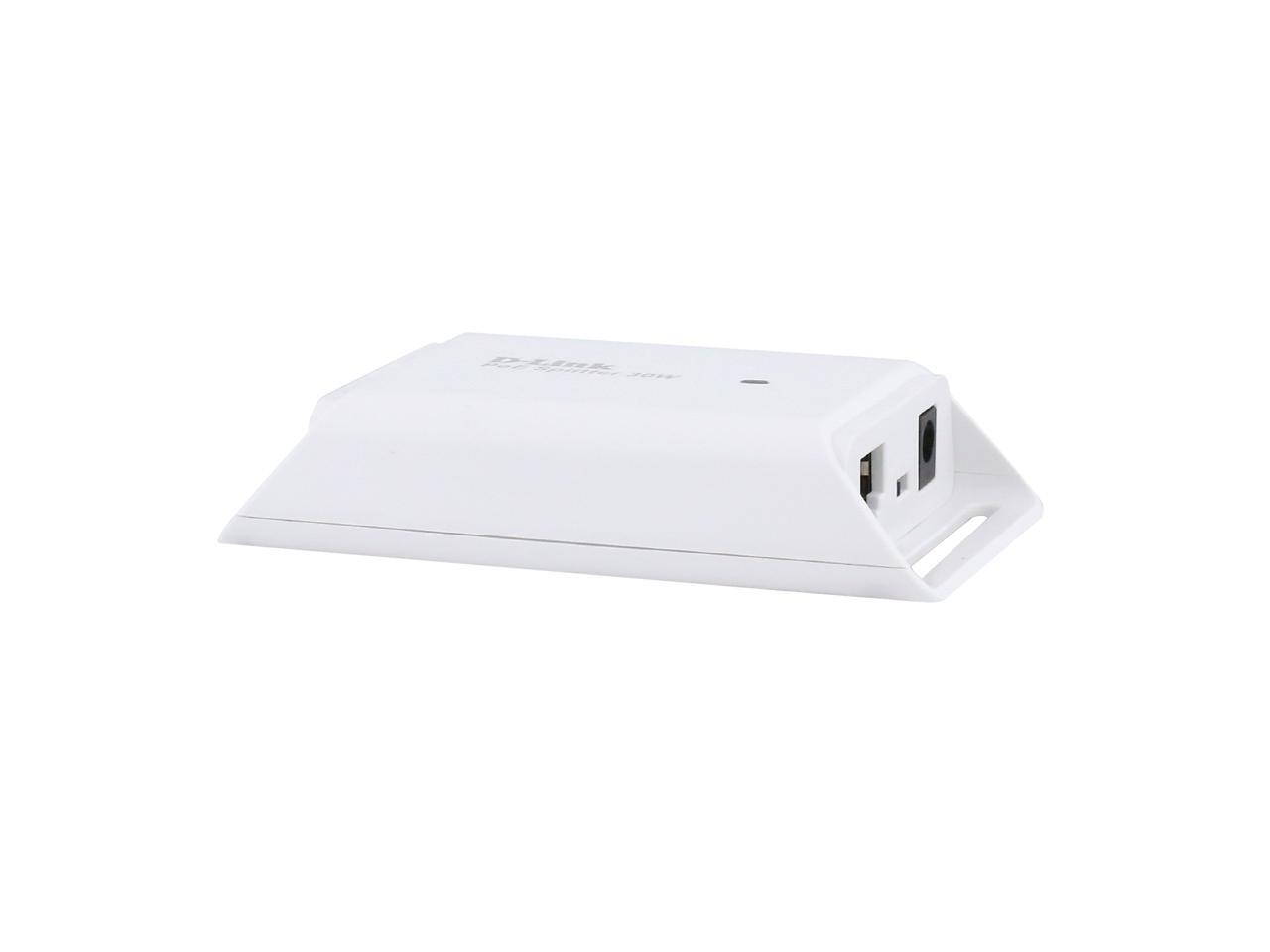

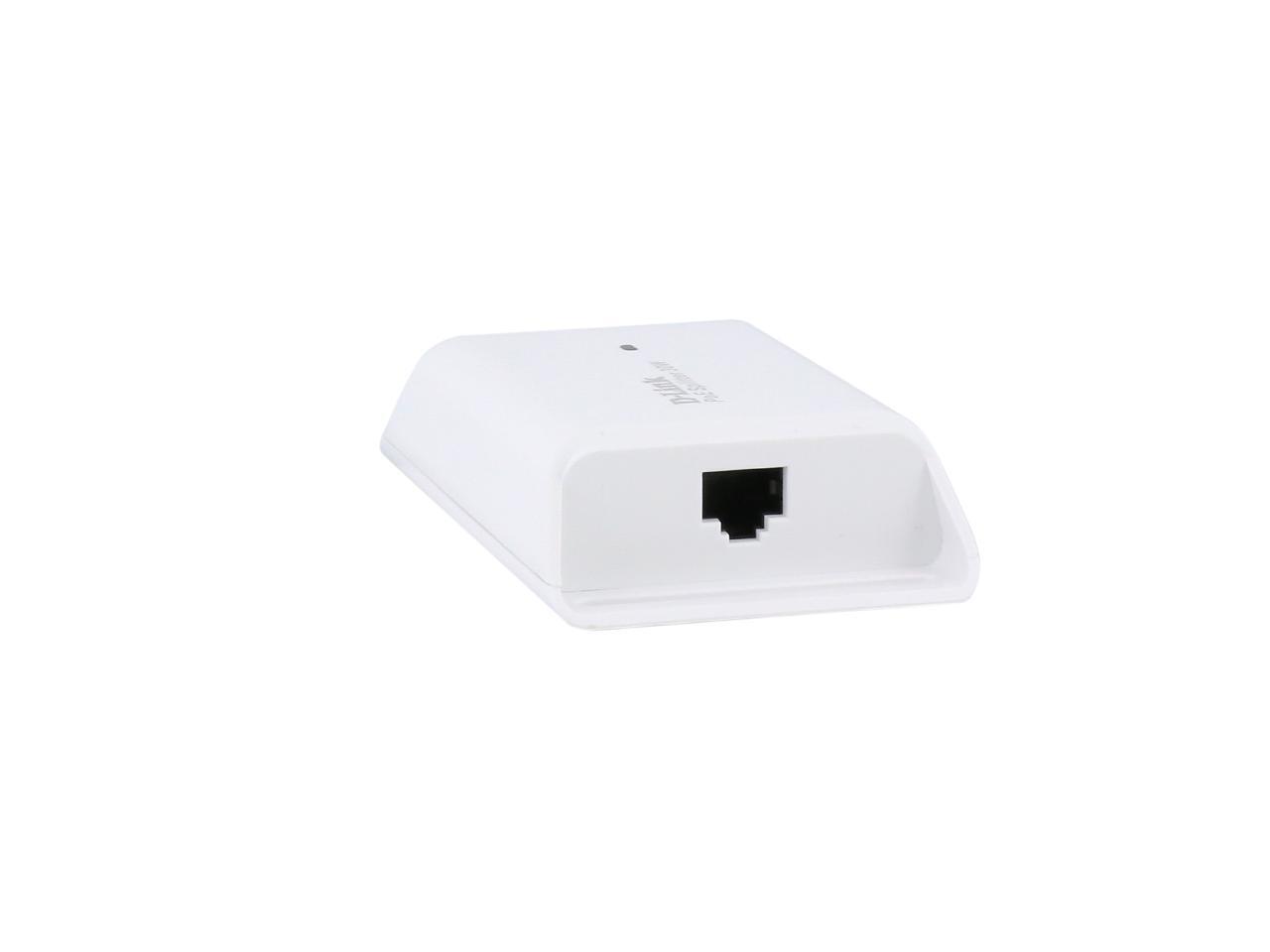

D-Link DPE-301GS 1-Port Gigabit PoE Splitter

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

1-PORT GIGABIT POE+ SPLITTER

Model
Brand	D-Link
Model	DPE-301GS

Details
Type	PoE Splitter
Color	Black
Specifications	Ports: PoE and Data Label: PoE IN IEEE 802.3 / 10BASE-T IEEE 802.3u / 100BASE-Tx IEEE 802.3ab / 1000BASE-T IEEE 802.3af / 802.3at Half / full-Duplex operation CSMA / CD Data Label: LAN OUT IEEE 802.3 / 10BASE-T IEEE 802.3u / 100BASE-Tx IEEE 802.3ab / 1000BASE-T Half / full-Duplex operation CSMA / CD Power Consumption Maximum: 32.4 Watts LED Indicators Blue: Power On Green: Link On DC Power Out: Switchable Output Voltage 5V DC, 2.5A max. 9V DC, 2A max. 12V DC, 2A max.100 - 240V, 50/60 Hz Included Power Adapter Cables 5.5mm male to 5.5mm male 5.5mm male to 3.8mm male Standards: IEEE 802.3af, IEEE 802.3atIEEE 802.3u compliant IEEE 802.3ab compliant 10/100/1000BASE-T port LED Indicators: Blue: Power On Green: Link On Power: Power Adapter: 54 V / 0.6 A Max Consumption: 32.4 watts Output: 0.6 A at 54 V Temperature: Operating: 0 to 50 degree C (32 to 122 degree F) Storage: -30 to 70 degree C (-4 to 158 degree F) Humidity: Operating: 5% to 95% non-condensing Storage: 5% to 95% non-condensing

Features

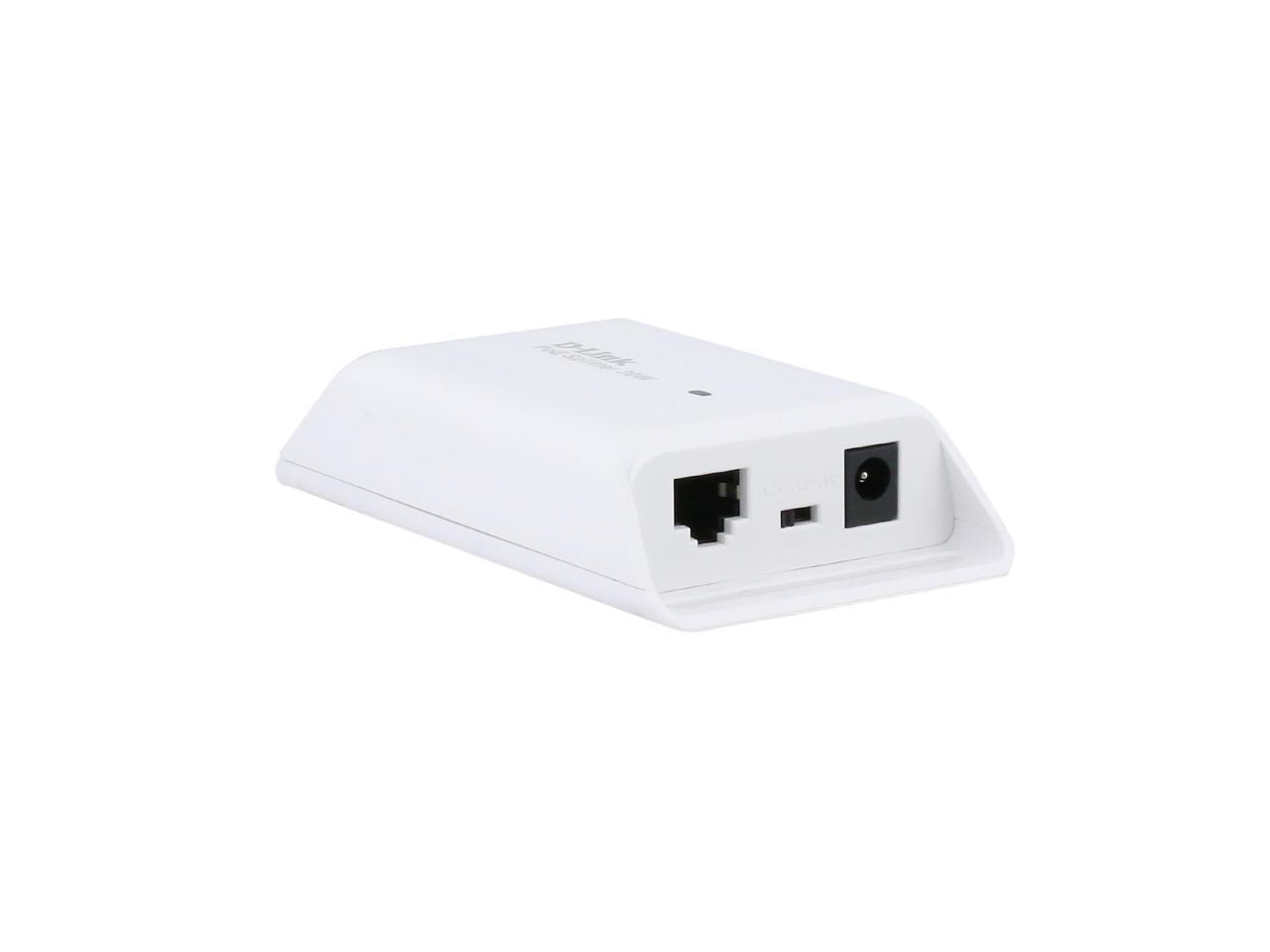

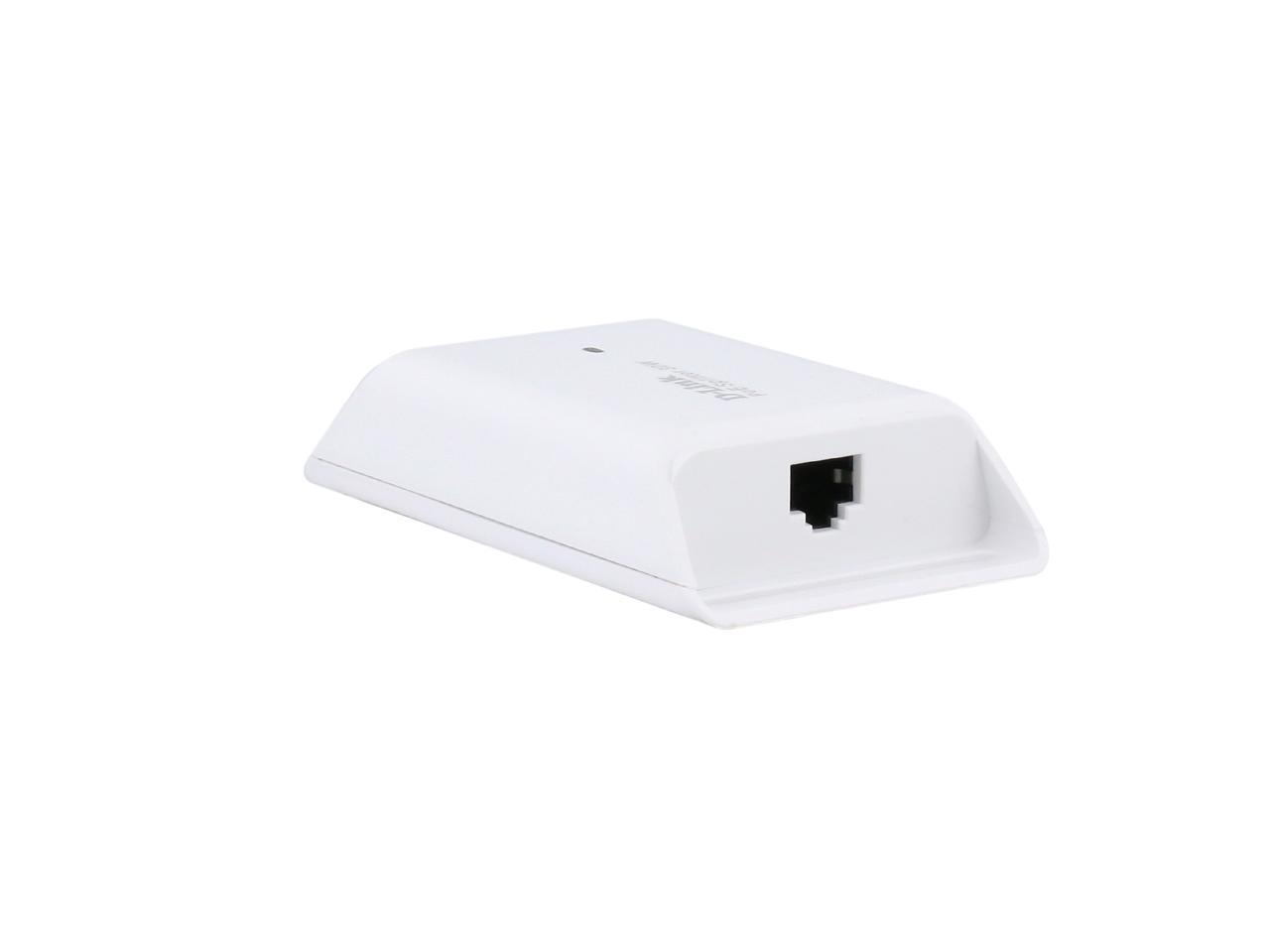

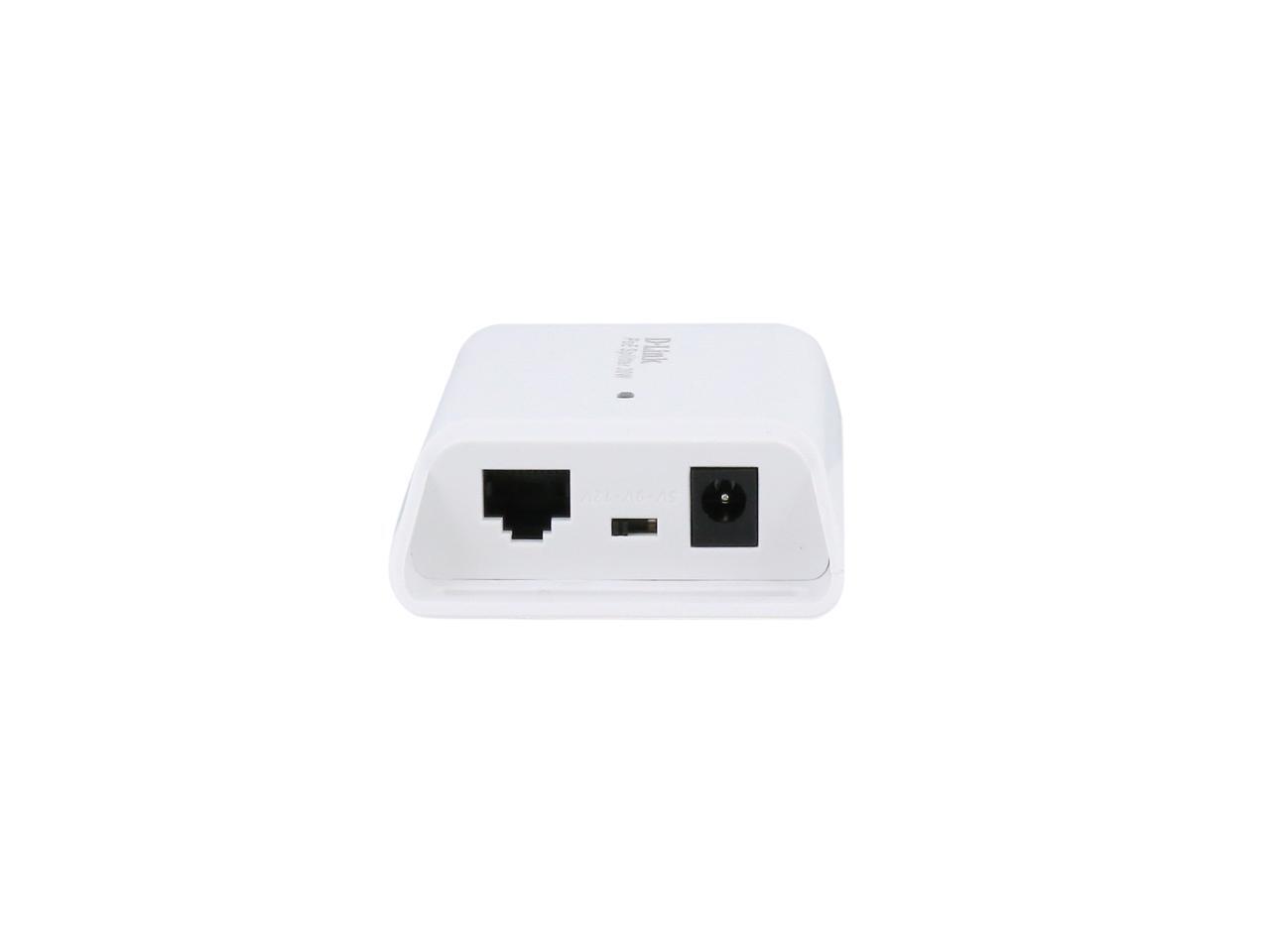

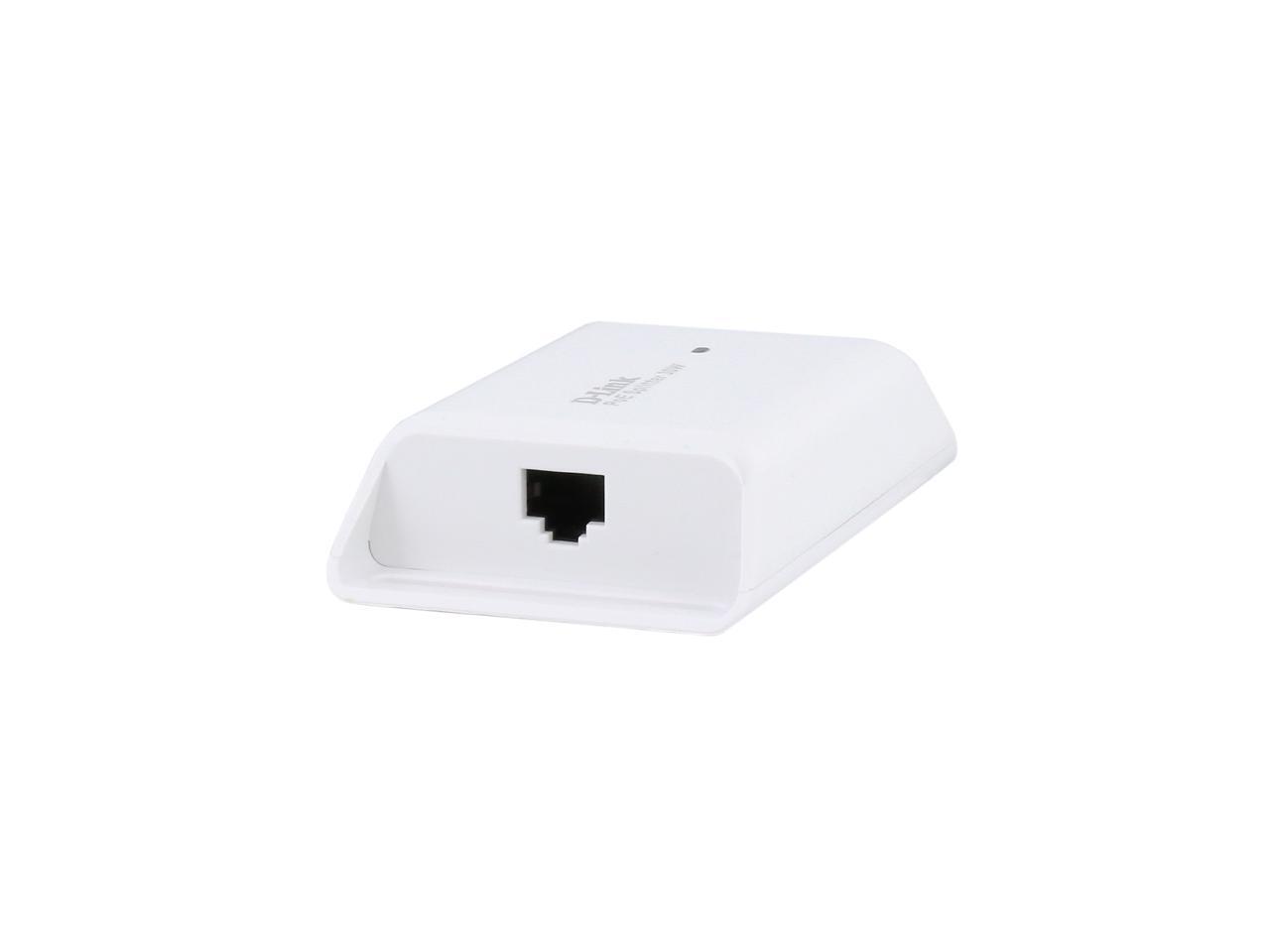

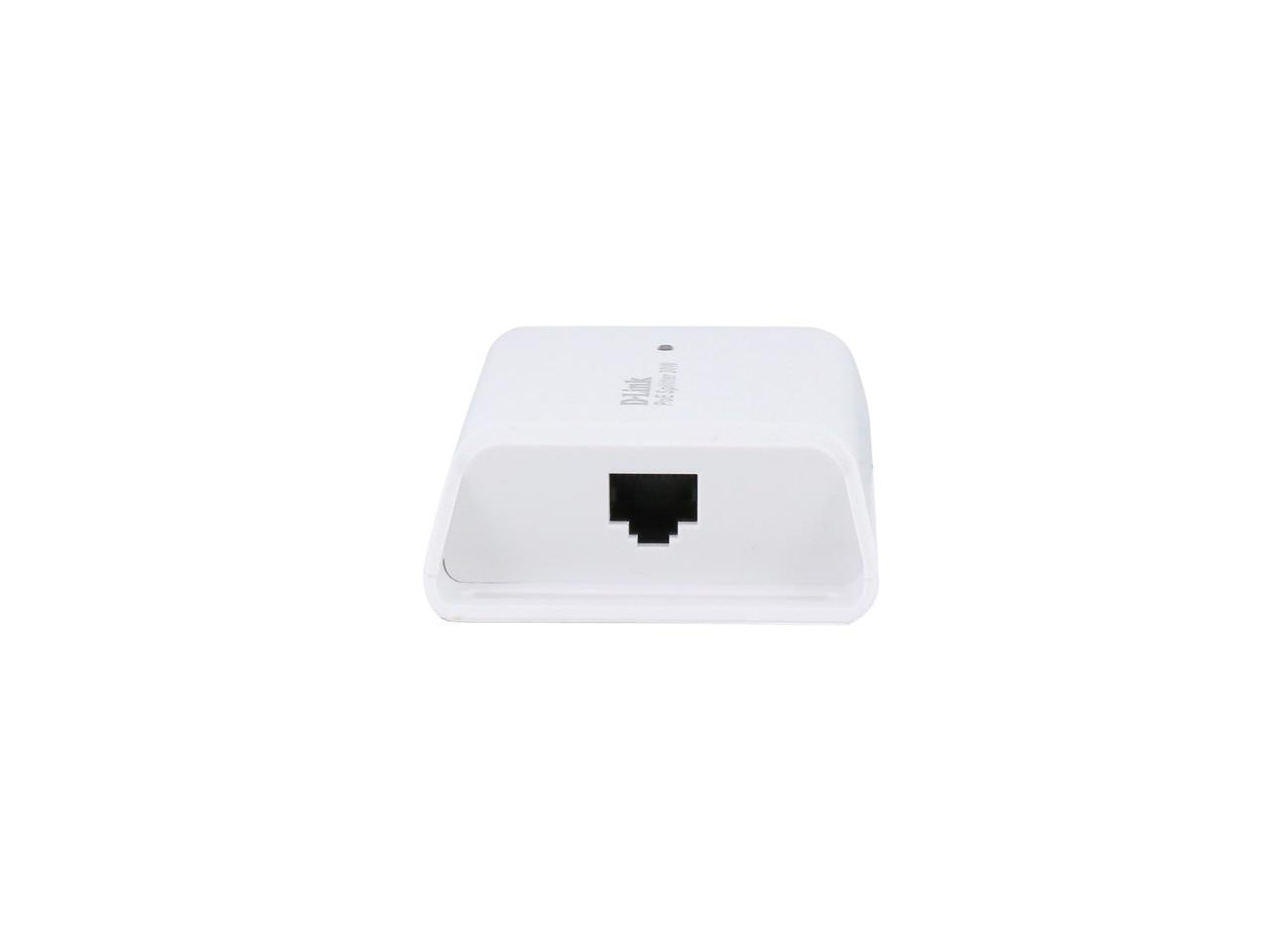

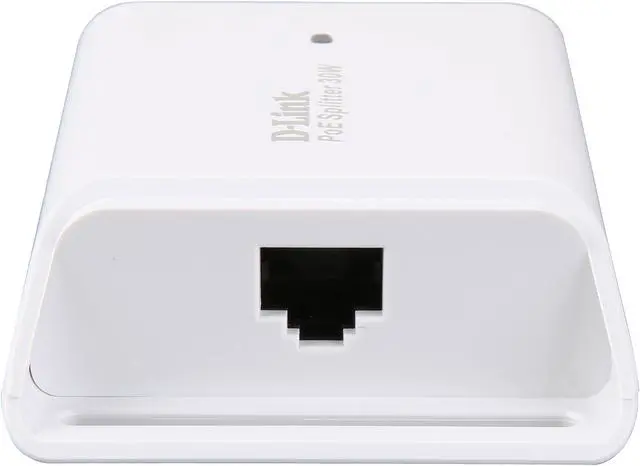

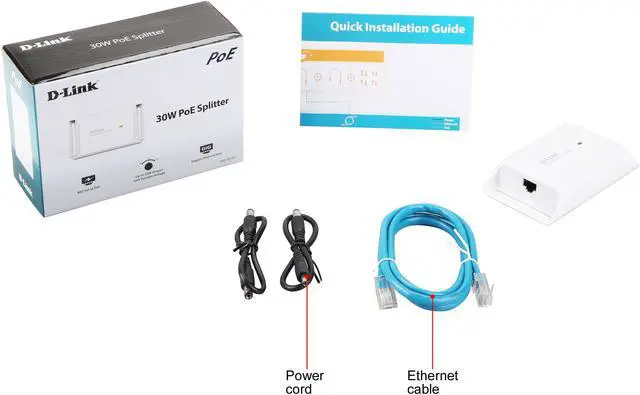

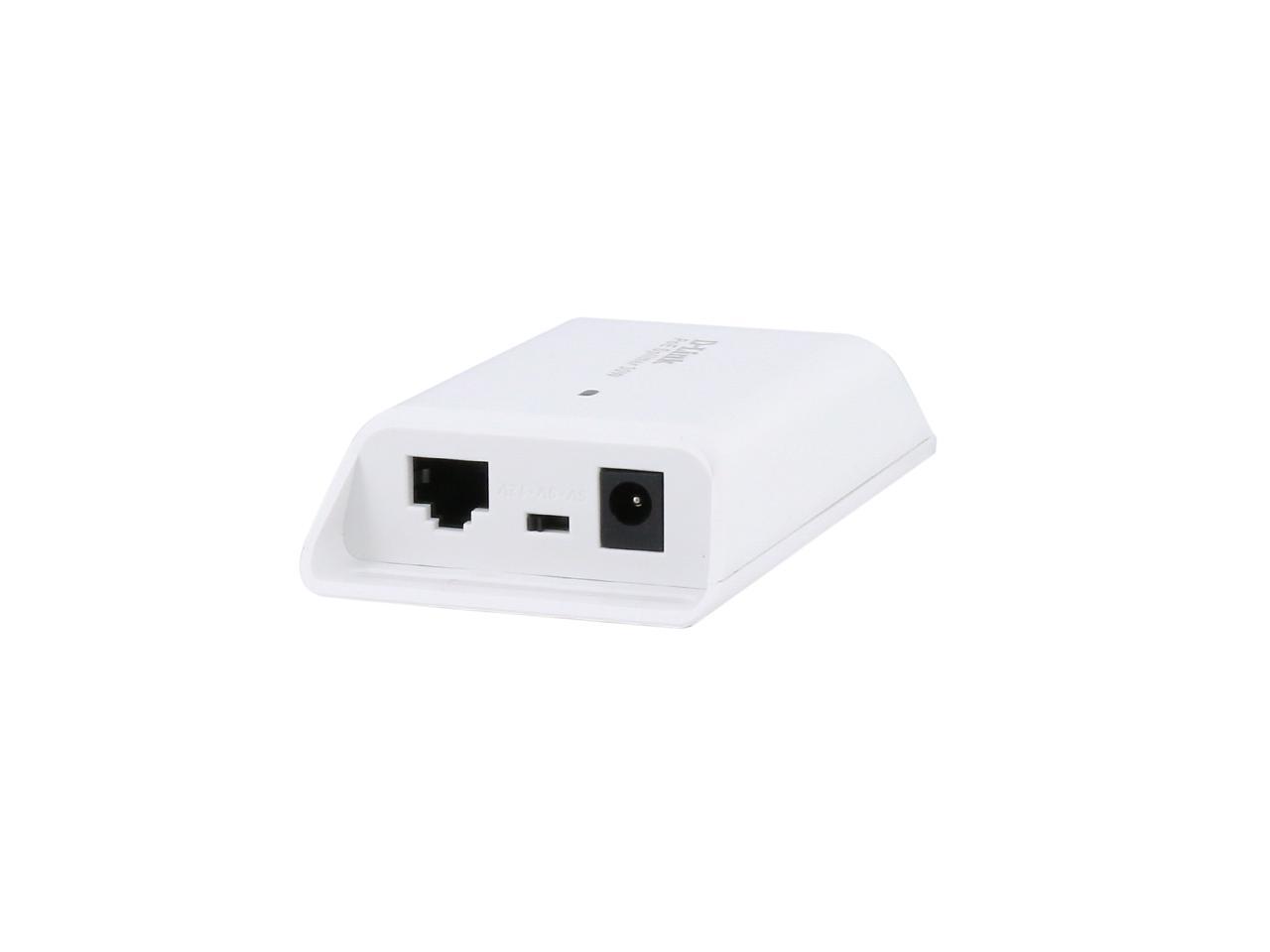

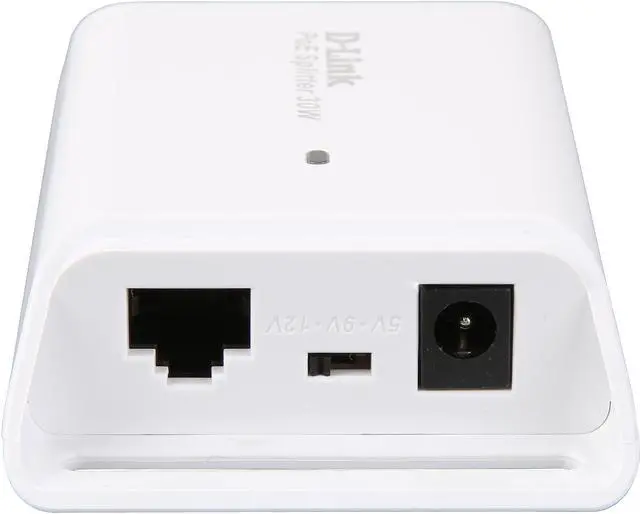

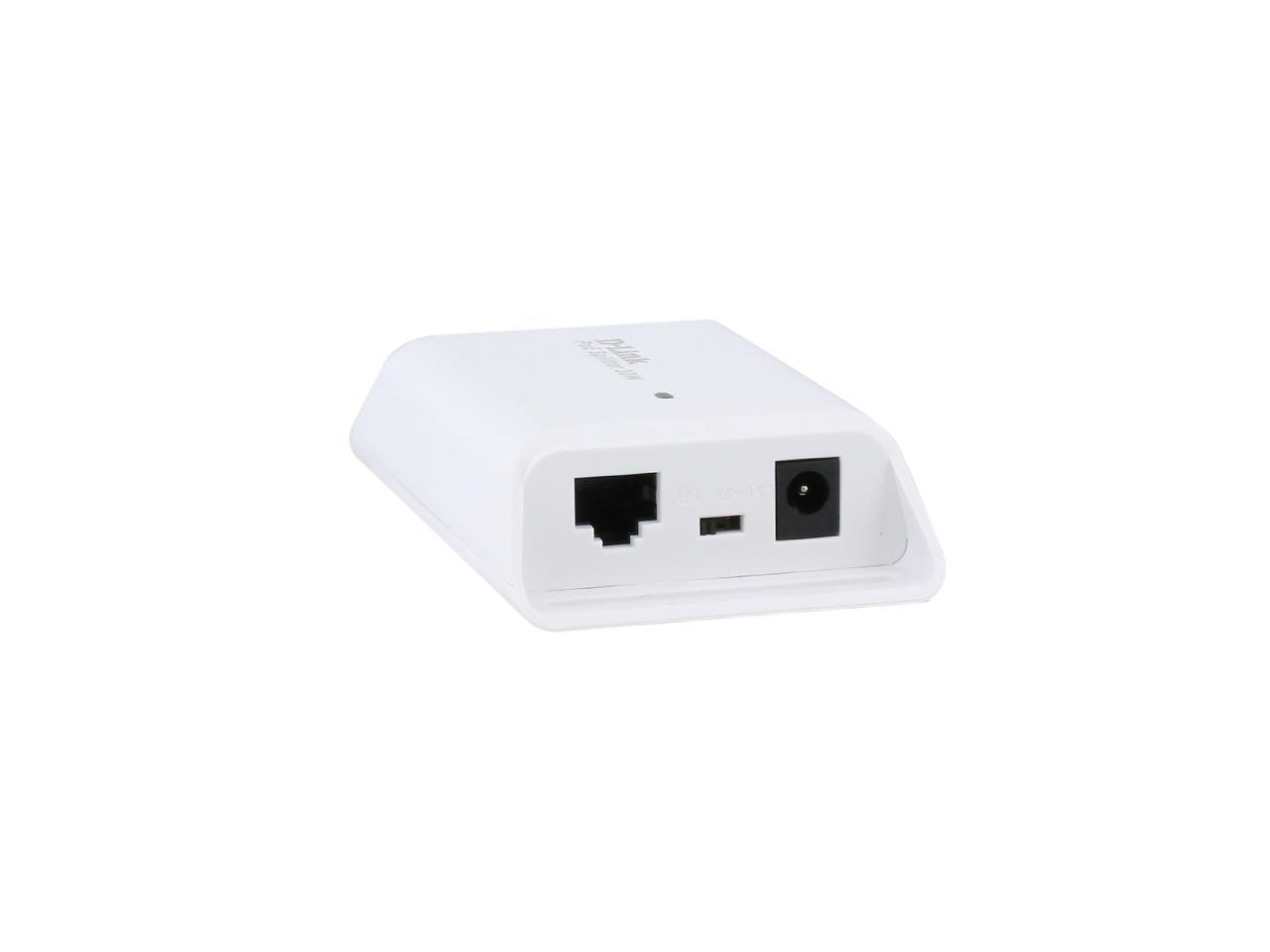

Features	The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don’t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device. The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.

Additional Information
First Listed on Newegg	December 31, 2015
