10/100 BASE-TX Fast Ethernet port Supports 802.3af PoE MicroSD/SDHC card slot DI/DO ports Audio In/Out 3.5mm Jacks
Camera
Pan/Tilt/Zoom
Digital Pan/Tilt/Zoom 10x digital zoom
Sensor & Detector
1/4" Megapixel progressive CMOS sensor
MAX Resolution
1280 x 800
Video Capture Resolution
16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording
Frame Rate
30fps@1280 x 720
Lens Type
Focal length: 4.3 mm Aperture: F2.0
Security
Administrator and user group protection Password authentication HTTP and RTSP digest encryption
Night Vision
Yes
Audio
2-Way Audio Support G.726 G.711
Power
Power over Ethernet
Yes
Power
5 V DC, 1.2 A through external power adapter External Power Adapter Input: 100 to 240 V AC, 50/60 Hz
Feature
Operating Systems Supported
Windows 7/Vista/XP system, Pocket PC, or mobile phone mydlink mobile app for iOS and Android mobile devices
Video Compression: H.264/MPEG-4/MJPEG simultaneous format compression H.264/MPEG-4 multicast streaming JPEG for still images
System Requirements for Web Interface: Internet Explorer, Mozilla Firefox, or Google Chrome
D-ViewCam System Requirements: Operating System: Microsoft Windows 7/Vista/XP Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP
D-ViewCam Software Functions: Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen Supports all management functions in web interface Scheduled motion triggered or manual recording options
Dimensions: 2.56" x 3.17" x 6.96" (65mm x 80.5mm x 176.5mm)
Weight: 510g +/- 5%
Package Contents
Package Contents

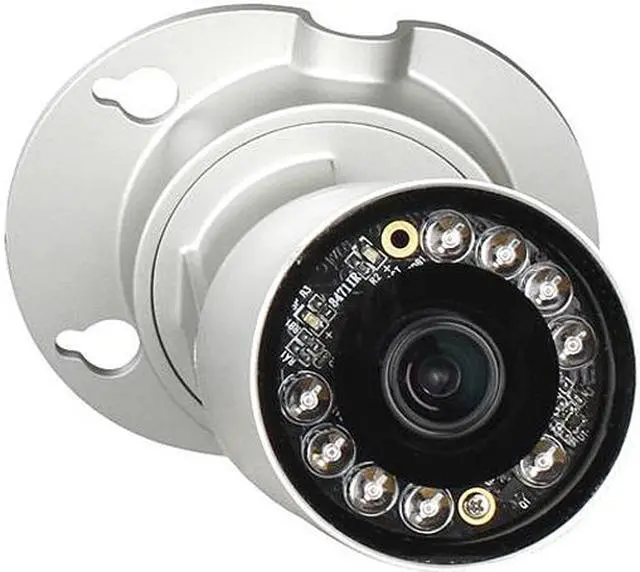

Cloud Camera 7100 (DCS-7010L) Ethernet Cable Power Adapter Mounting Kit Quick Install Guide
