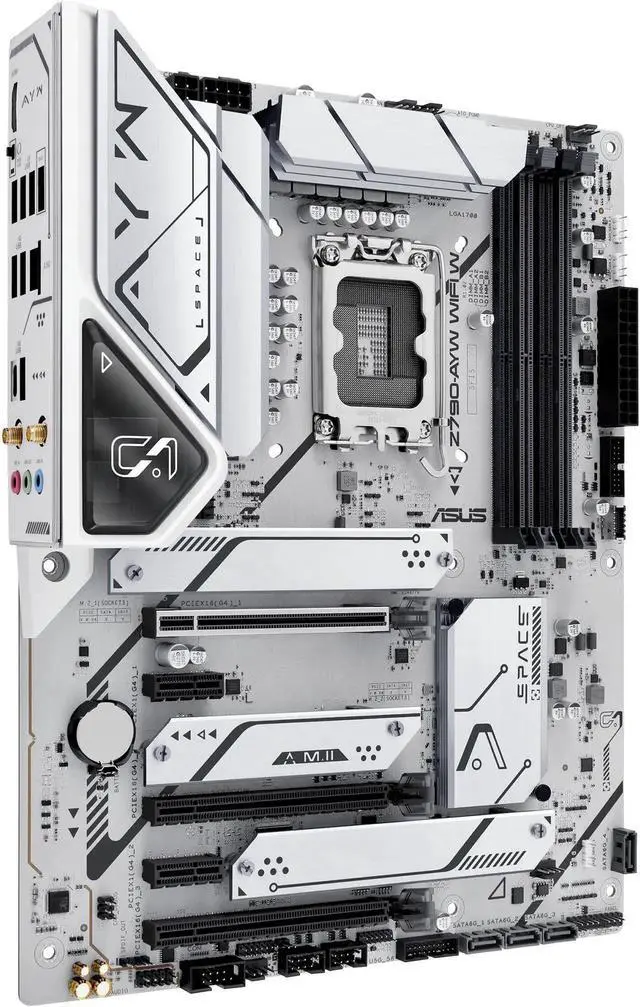

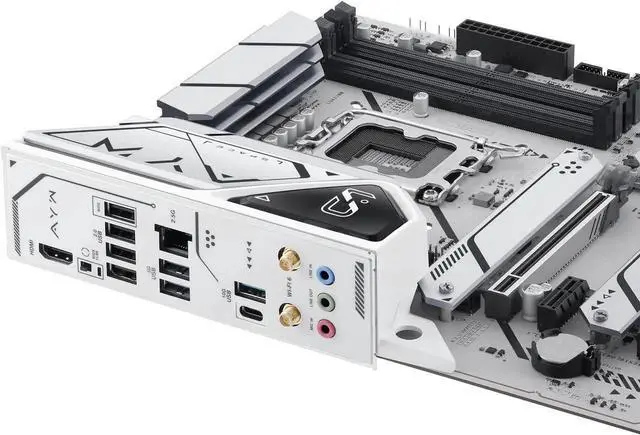

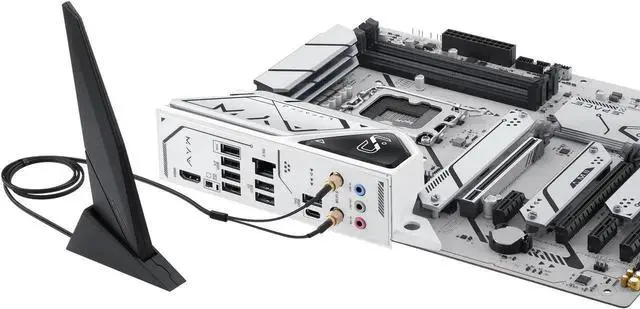

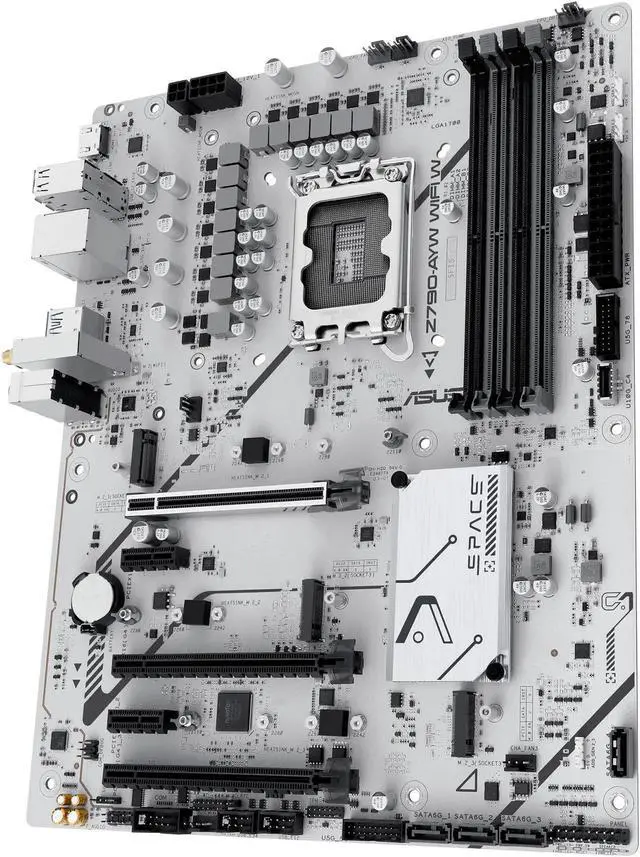

Main image of ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Alt view image 2 of 7 - ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Alt view image 3 of 7 - ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Alt view image 4 of 7 - ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Alt view image 5 of 7 - ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Alt view image 6 of 7 - ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Alt view image 7 of 7 - ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Shop All ASUS Products | Visit TECH EDGE Store

ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2 slots, 12+1 DrMOS, DDR5, WIFI 6, 2.5Gb LAN, USB 10Gbps Type-C, Thunderbolt (USB4), Aura Sync, Armoury Crate

Be the first to review this product...

Intel LGA 1700 socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen Pentium Gold and Celeron Processors
Enhanced power solution: 12+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory Wi-Fi 6, PCIe 4.0, rear USB 10Gbps Type-C, front panel USB 10Gbps Type-C, thunderbolt (USB4) header support, 3 PCIe 4.0 M.2
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II

Overview

Specs

Reviews

Intel LGA 1700 socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen Pentium Gold and Celeron Processors
Enhanced power solution: 12+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory Wi-Fi 6, PCIe 4.0, rear USB 10Gbps Type-C, front panel USB 10Gbps Type-C, thunderbolt (USB4) header support, 3 PCIe 4.0 M. 2
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Comprehensive cooling: Large VRM heatsinks, M. 2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II

Model
Brand	ASUS
Model	Z790-AYW WIFI W
Part Number	90MB1HT0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600
Maximum Memory Supported	192GB
Memory Feature	DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Expansion Slots
PCI Express 4.0 x16	Intel Core Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot Intel Z790 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x1	2 x PCIe 4.0 x1 slots

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel Core Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Additional RAID Controller	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10

Onboard Audio
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
LAN Chipset	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth 5.3

Rear Panel Ports

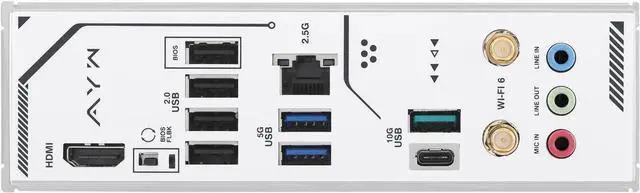

Back I/O Ports	2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button

Internal I/O Connectors
Onboard USB	1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers Software Features ASUS Exclusive Software: Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two- Way AI Noise Cancelation AI Suite 3 - TurboV EVO - PC Cleaner - DIGI+ VRM ASUS CPU- Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) MyASUS UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 rubber packages 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide

Additional Information
First Listed on Newegg	February 25, 2026
