Main image of ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

Alt view image 2 of 5 - ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

Alt view image 3 of 5 - ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

Alt view image 4 of 5 - ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

Alt view image 5 of 5 - ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

Shop All ASUS Products | Visit TECH EDGE Store

ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

model: TUF GAMING Z790-PLUS WIFI D4

PRIME Z790-P-CSM
TUF GAMING Z790-BTF WIFI
Z790-AYW OC WIFI
Z790-AYW WIFI W
TUF GAMING Z790-PLUS D4
TUF GAMING Z790-PLUS WIFI D4
ROG STRIX Z790-A GAMING WIFI S

BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
Intel LGA 1700 socket: Ready for 14th & 13th & 12th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready

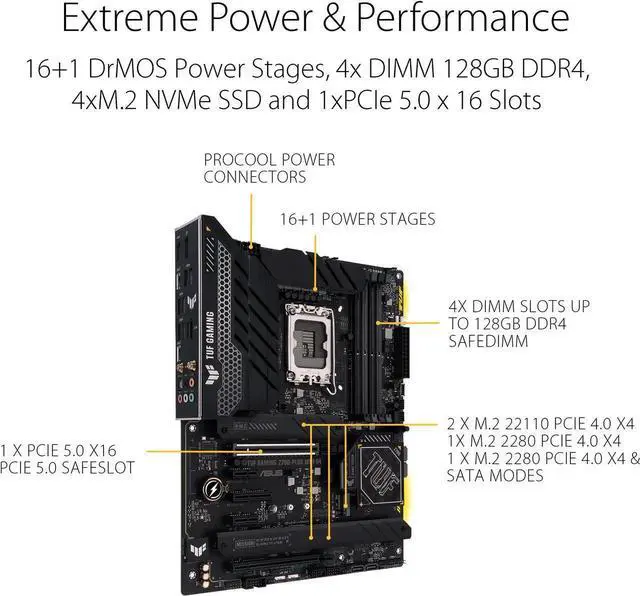

Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
Ultra Fast Gaming Networking : WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology

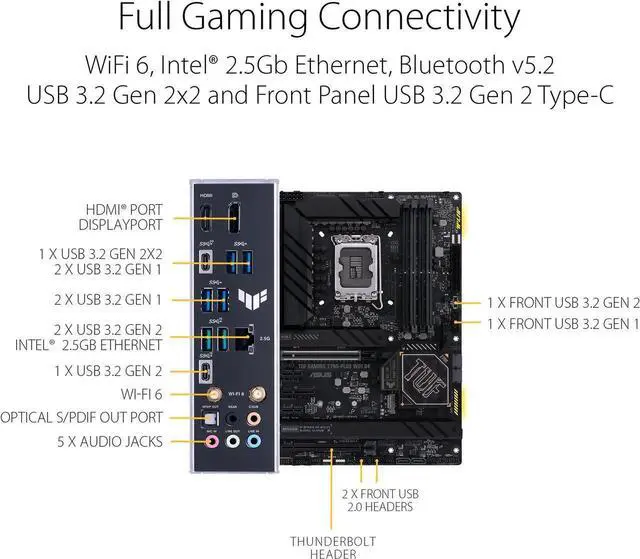

Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4)header
PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, Pre-mount I/O shield
New TUF Gaming Aesthetics: New ID design, Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync
Immersive Gaming Audio & AI Noise Cancellation

Overview

Specs

Reviews

BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
Intel LGA 1700 socket: Ready for 14th & 13th & 12th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready
Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
Ultra Fast Gaming Networking: WiFi 6 AX201 ( 802.11 ax), Intel I225-V 2.5G b LAN, TUF LAN
Guard and TurboLAN technology
Fastest Connectivity: 4x M. 2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4) header
PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M. 2 Q-Latch, Pre-mount I/O shield
New TUF Gaming Aesthetics: New ID design, Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync
Immersive Gaming Audio & AI Noise Cancellation

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by TECH EDGE Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 5.0 x16	Intel® 14th & 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x4	1 x PCIe 4.0 x4 slot
PCI Express x1	2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel® 14th & 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	0/1/5/10

Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Meet Your Seller

ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel14th & 13th &12th Gen) ATX gaming motherboard(PCIe 5.0, DDR4,4xM.2 Slots,16+1 DrMOS, WiFi 6,Intel 2.5Gb LAN, front USB 3.2 Gen 2 Type-C®)

Learn more about the ASUS TUF GAMING Z790-PLUS WIFI D4

Customer Reviews of the ASUS TUF GAMING Z790-PLUS WIFI D4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	ASUS
Series	TUF
Model	TUF GAMING Z790-PLUS WIFI D4
Part Number	90MB1CR0-M0AAY0

LAN Chipset	1 x Intel 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth v5.2

Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector
