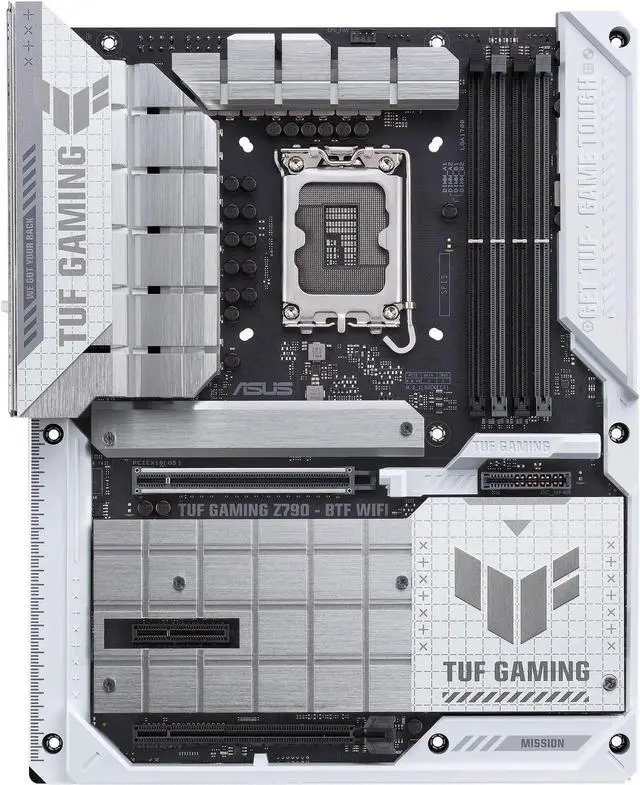

Main image of TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

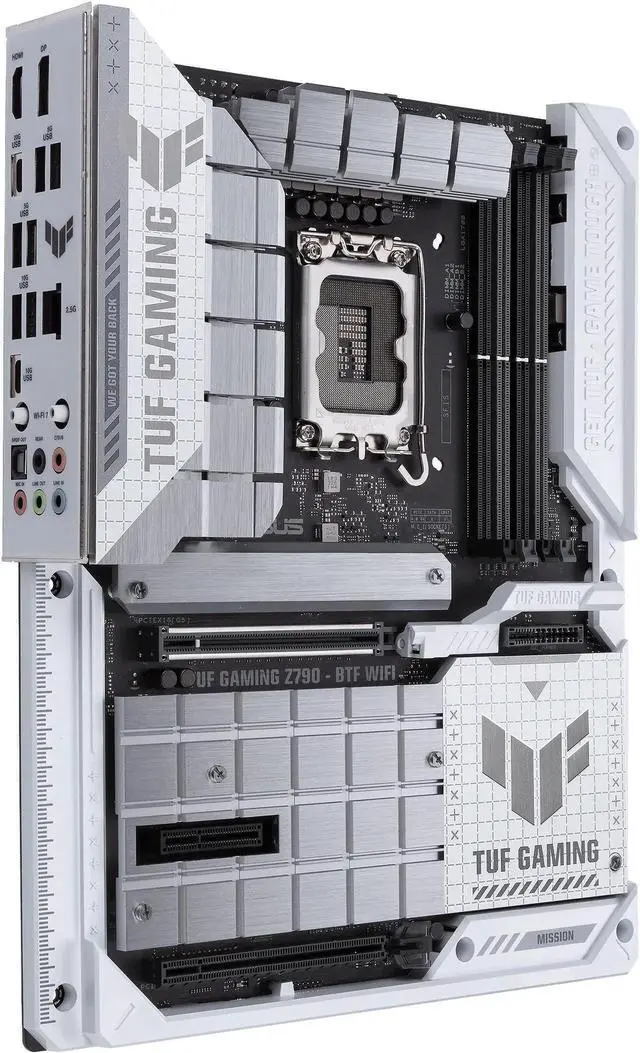

Alt view image 2 of 7 - TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

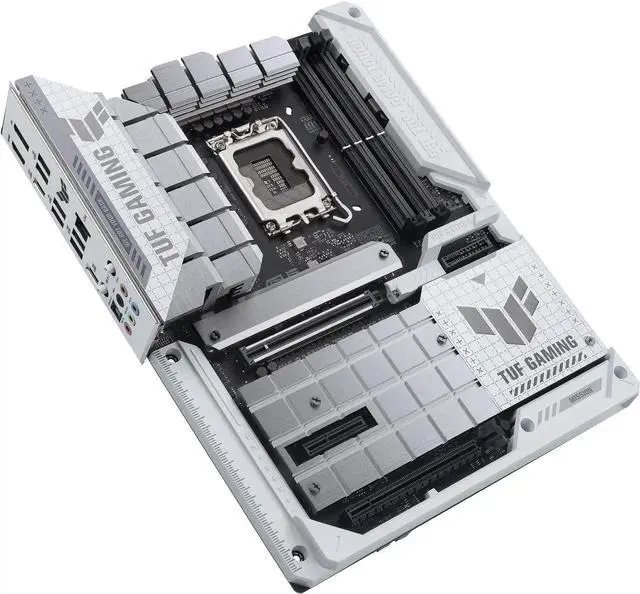

Alt view image 3 of 7 - TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

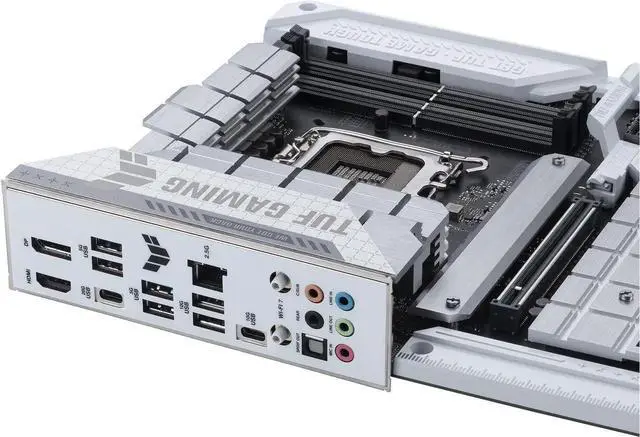

Alt view image 4 of 7 - TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

Alt view image 5 of 7 - TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

Alt view image 6 of 7 - TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

Alt view image 7 of 7 - TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

Shop All ASUS Products | Visit TECH EDGE Store

TUF GAMING Z790-BTF WIFI Intel® Z790 (LGA 1700) ATX motherboard, Hidden-Connector Design, PCIe 5.0, four M.2 slots, 16+1+1 power stages, DDR5, Intel® 2.5Gb Ethernet, Intel® Wi-Fi 7, HDMI, DisplayPort

Be the first to review this product...

IntelLGA 1700 socket: Ready for Intel® Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors
Premium power solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver
Hidden-Connector Design: Delivers an unprecedented lever of cable management to PC DIY enthusiasts
Graphics Card High Power Slot: Compatible with the PCIe high-power connector on the graphics card, delivering up to 600 watts through the motherboard
Exclusive AI & memory technology: AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
Next-gen connectivity: PCIe® 5.0, USB 20Gbps, front USB 10Gbps, and Thunderbolt 4 header
Made for online Gaming: WiFi 7 with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Overview

Specs

Reviews

IntelLGA 1700 socket: Ready for Intel® Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors
Premium power solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver
Hidden-Connector Design: Delivers an unprecedented lever of cable management to PC DIY enthusiasts
Graphics Card High Power Slot: Compatible with the PCIe high-power connector on the graphics card, delivering up to 600 watts through the motherboard
Exclusive AI & memory technology: AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
Next-gen connectivity: PCIe® 5.0, USB 20Gbps, front USB 10Gbps, and Thunderbolt 4 header
Made for online Gaming: WiFi 7 with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LAN
Guard
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Model
Brand	ASUS
Model	TUF GAMING Z790-BTF WIFI
Part Number	90MB1GU0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II)

Expansion Slots
PCI Express 5.0 x16	Intel Core Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x4	Intel Z790 Chipset 1 x PCIe 4.0 x4 slot

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel Core Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Onboard Audio
Audio Chipset	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	1 x Intel 2.5Gb Ethernet TUF LANGuard
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth v5.4**** * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Yes

Rear Panel Ports

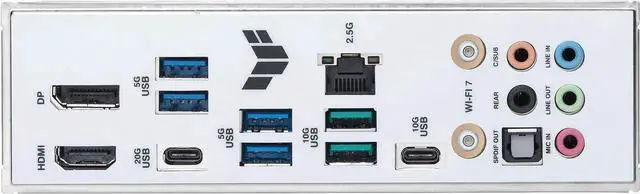

Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Internal I/O Connectors
Onboard USB	USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt (USB4) header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x Graphics Card High-Power slot 1 x 12V-2X6 Auxiliary Power connector 3 x 8-pin PCIe Power connectors

Features
Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers

Packaging

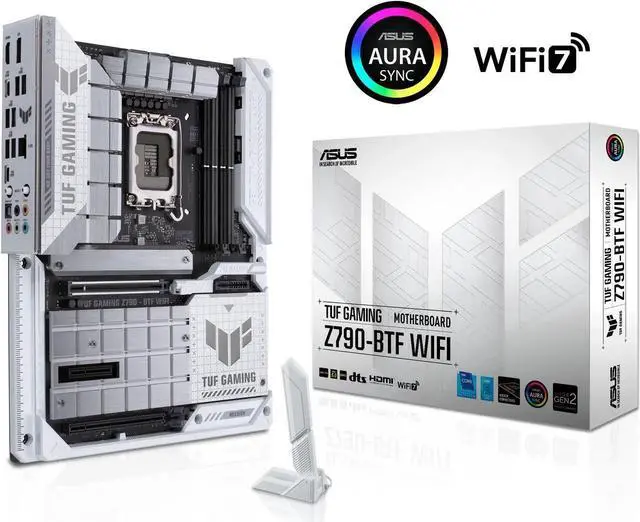

Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages 1 x Screw package for M.2 SSD Documentation 1 x TUF certification card 1 x Quick start guide

Additional Information
First Listed on Newegg	February 25, 2026
