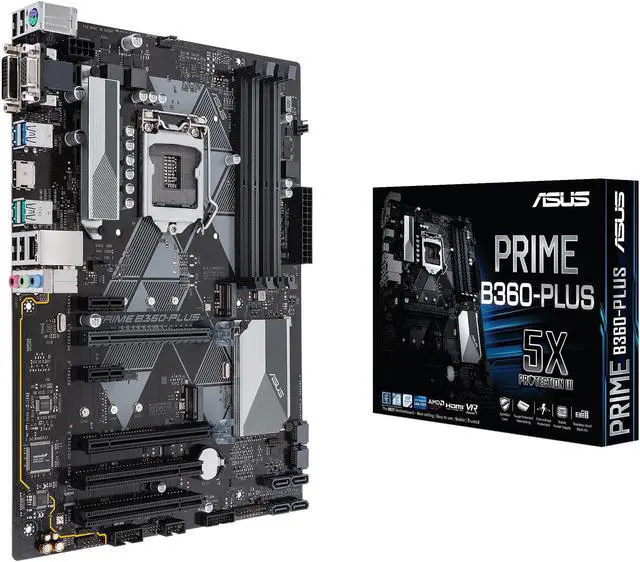

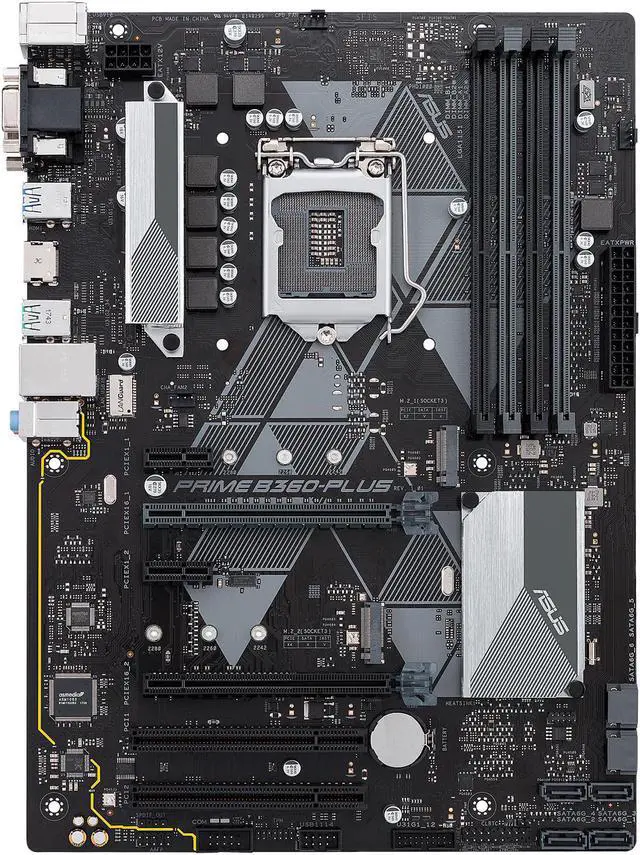

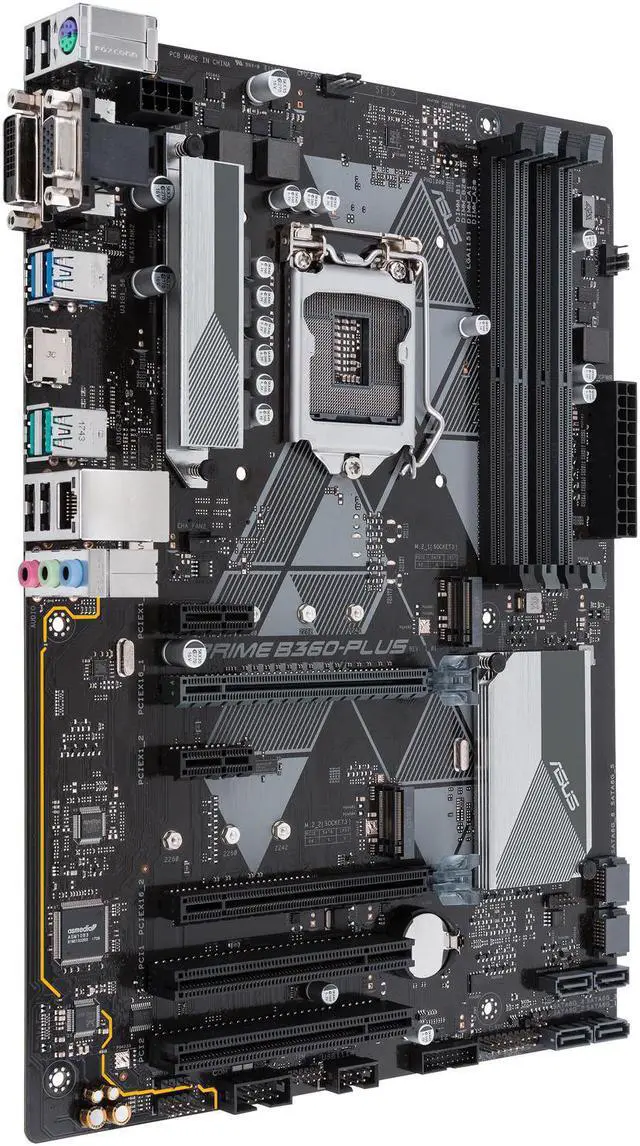

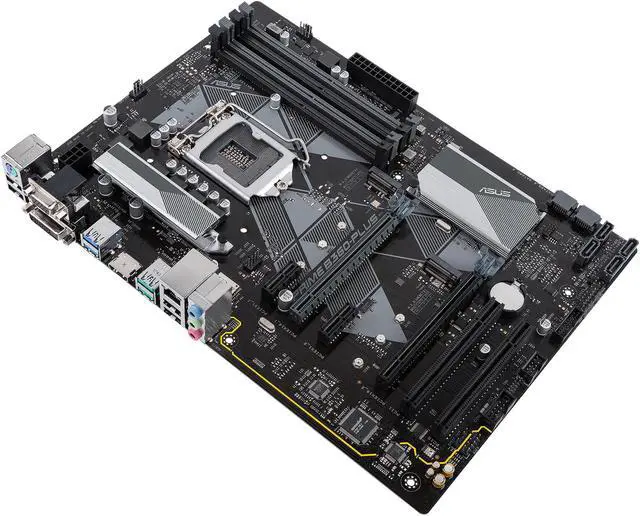

ASUS PRIME B360-PLUS ATX Intel Motherboard
REFURBISHED Product Type
- Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with integrated dual M.2 slots with Intel Optane Memory compatibility and USB 3.1 Gen2
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- FanXpert 2+ delivers advanced fan controls for dynamic cooling
- ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
- On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound
Overview
Specs
Reviews
Memory Standard: DDR4 2666/ 2400/ 2133
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC887
PCI Express 3.0 x16: 1 x PCI Express 3.0/2.0 x16 slot (at x 16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)*
* The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support

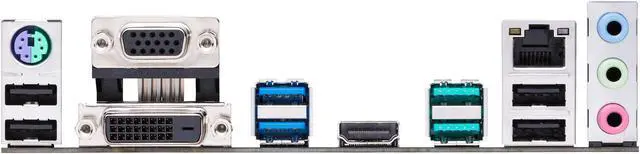

Multi-VGA output support: HDMI/DVI-D/D-sub port
- Supports HDMI 1.4b with ma...
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC887
PCI Express 3.0 x16: 1 x PCI Express 3.0/2.0 x16 slot (at x 16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)*
* The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/D-sub port
- Supports HDMI 1.4b with ma...
