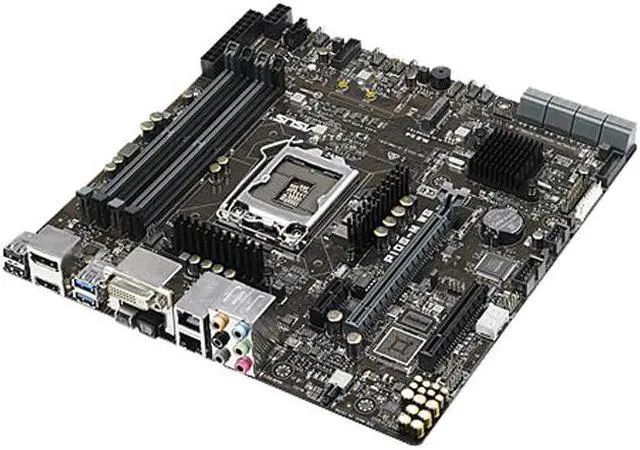

Main image of ASUS P10S-M WS Micro ATX Intel Motherboard

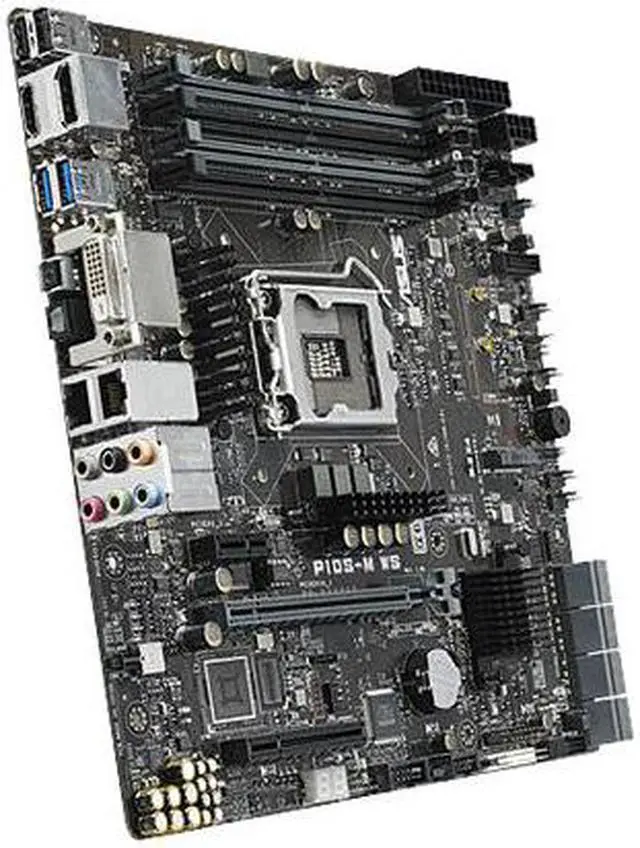

Alt view image 2 of 5 - ASUS P10S-M WS Micro ATX Intel Motherboard

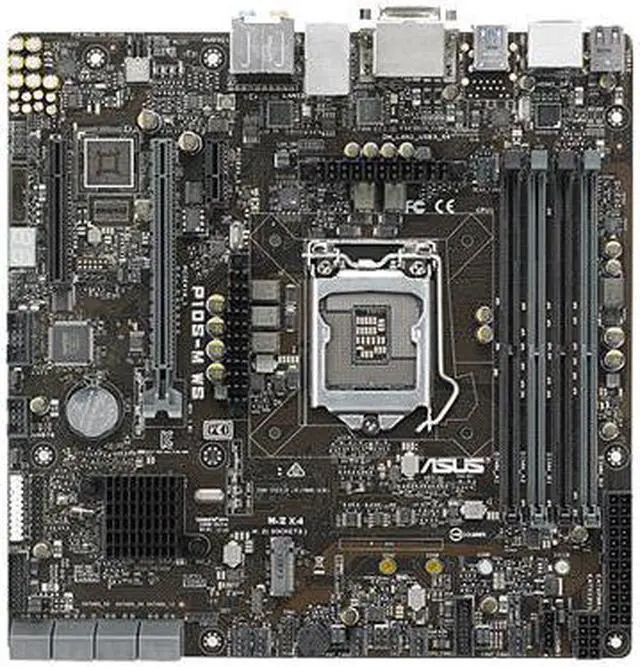

Alt view image 3 of 5 - ASUS P10S-M WS Micro ATX Intel Motherboard

Alt view image 4 of 5 - ASUS P10S-M WS Micro ATX Intel Motherboard

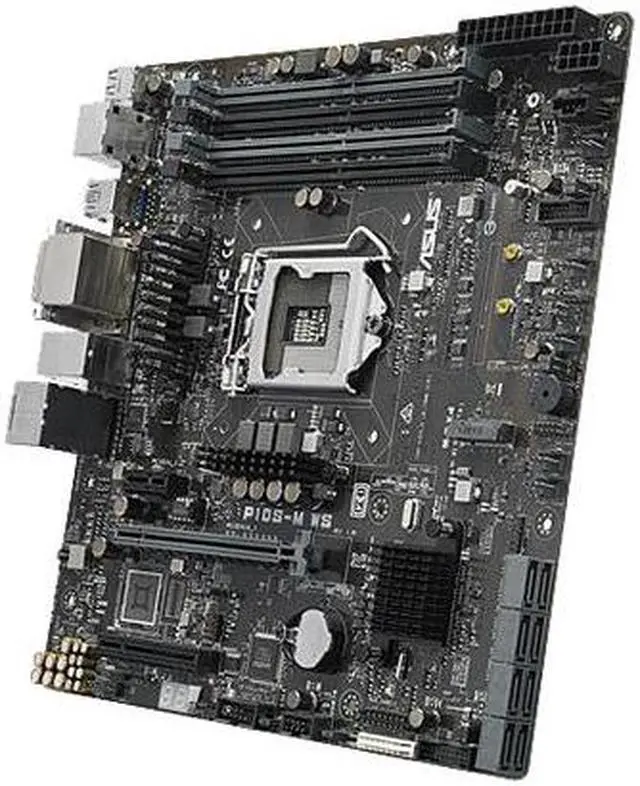

Alt view image 5 of 5 - ASUS P10S-M WS Micro ATX Intel Motherboard

Shop All ASUS Products | Visit Hellowland Store

ASUS P10S-M WS Micro ATX Intel Motherboard

REFURBISHED

Intel C236
Xeon / Core i7/i5/i3 / Pentium / Celeron (LGA1151)
DDR4 2133

Overview

Specs

Reviews

Memory Standard: DDR4 2133
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC1150
PCI Express 3.0 x16: 1 x PCIe 3.0/2.0 x16 (x16 mode)
Onboard Video Chipset: Integrated Graphics Processor
Multi-VGA output support: HDMI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512MB
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Max LAN Speed: Dual 10/100/1000Mbps
CPU Type: Xeon / Core i7/i5/i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies: * Not Compatible with Intel 8th Gen CPUs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Hellowland Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 mode)
PCI Express x4	1 x PCIe 3.0 x4 (x8 mode) 1//1: From PCH
PCI Express x1	1 x PCIe 3.0/2.0 x1 (x1 mode) 1//1: From PCH

Serial ATA (SATA)	8 x SATA 6Gb/s port(s)
M.2	1 x M.2 Socket 3 2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)//2: 7 x SATA 6Gb/s with 1 x M.2 (SATA 6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242)
SATA RAID	0/1/5/10

LAN Chipset	Intel I210
Second LAN Chipset	Intel I210
Max LAN Speed	2 x 1Gbps

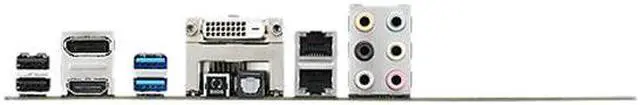

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x USB 2.0/1.1 / 2 x USB 3.0
Video Ports	1 x DVI-D
HDMI	1 x HDMI
RJ45	2 x RJ45
DisplayPort	1 x DisplayPort
USB 3.0	2 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	1 x 8-channel Audio I/O

Onboard USB	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)/1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x AAFP connector/1 x TPM header/1 x CPU fan with PWM control/1 x S/PDIF out header(s)/1 x 8-pin EATX 12 V Power connector/1 x 24-pin EATX Power connector(s)/1 x Front panel connector(s) (1 x 19-pin)/1 x AUX panel header(s)/4 x Front fan/1 x Rear fan/1 x COM port header/1 x Chassis intrusion header

Meet Your Seller

ASUS P10S-M WS Micro ATX Intel Motherboard

Refurbished

Learn more about the ASUS P10S-M WS

Customer Reviews of the ASUS P10S-M WS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

CPU Socket Type	LGA 1151
CPU Type	Xeon / Core i7/i5/i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies	* Not Compatible with Intel 8th Gen CPUs

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin

Model
Brand	ASUS
Model	P10S-M WS
