$1,999^.99

Free 15-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by TECH EDGE

Top Rated

4 (4 seller ratings)

Shipped by TECH EDGE

Meet Your Seller

TECH EDGE

See Seller Store

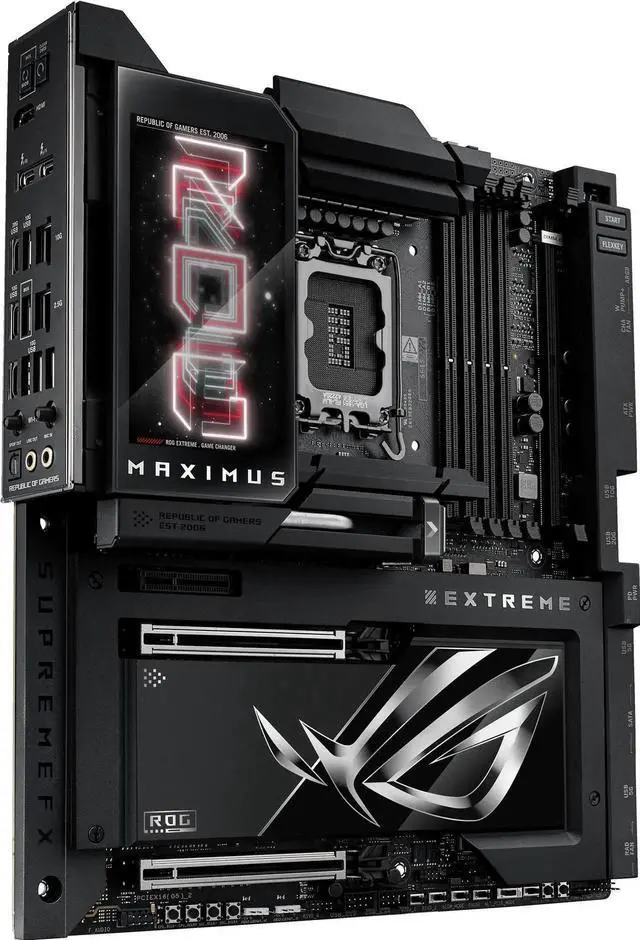

Main image of ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

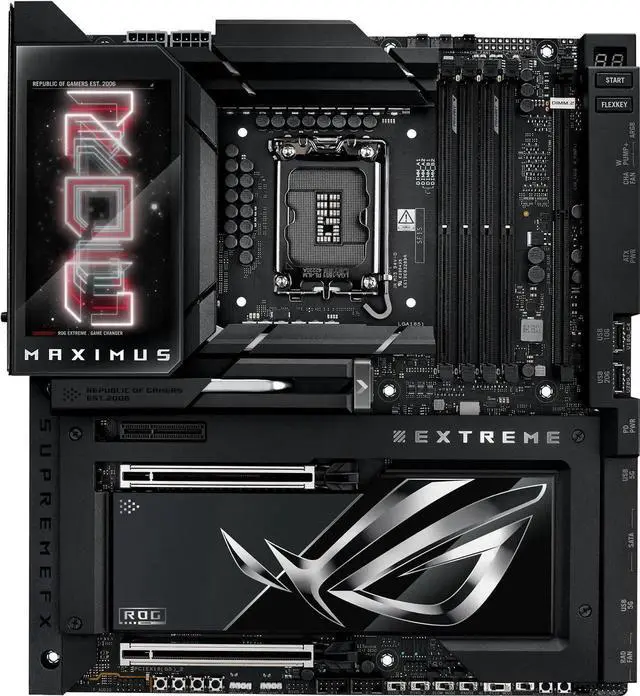

Alt view image 2 of 7 - ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

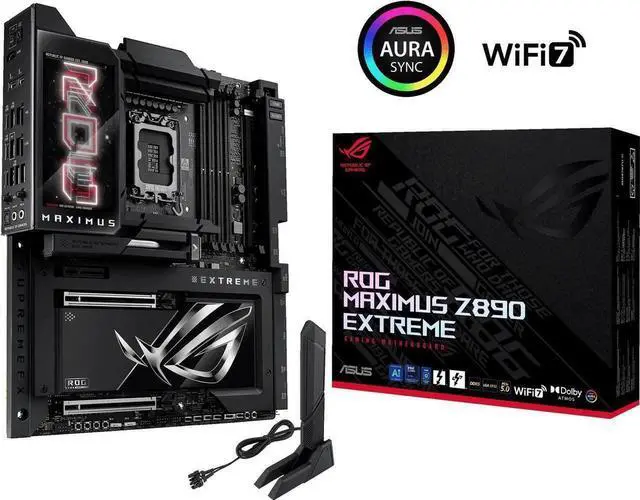

Alt view image 3 of 7 - ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

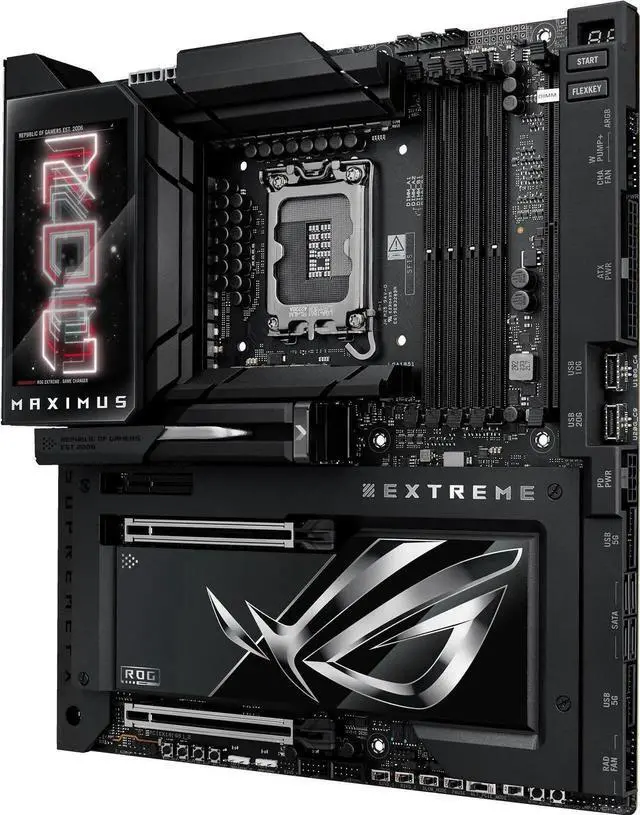

Alt view image 4 of 7 - ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

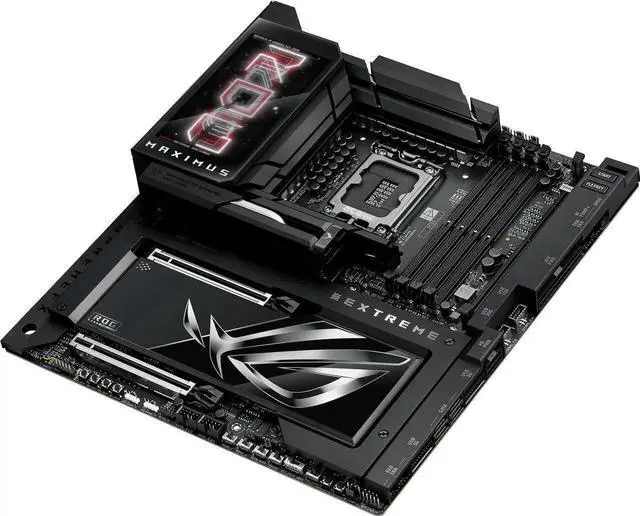

Alt view image 5 of 7 - ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

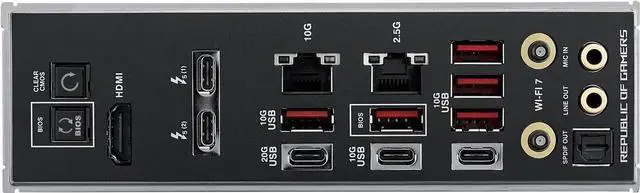

Alt view image 6 of 7 - ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

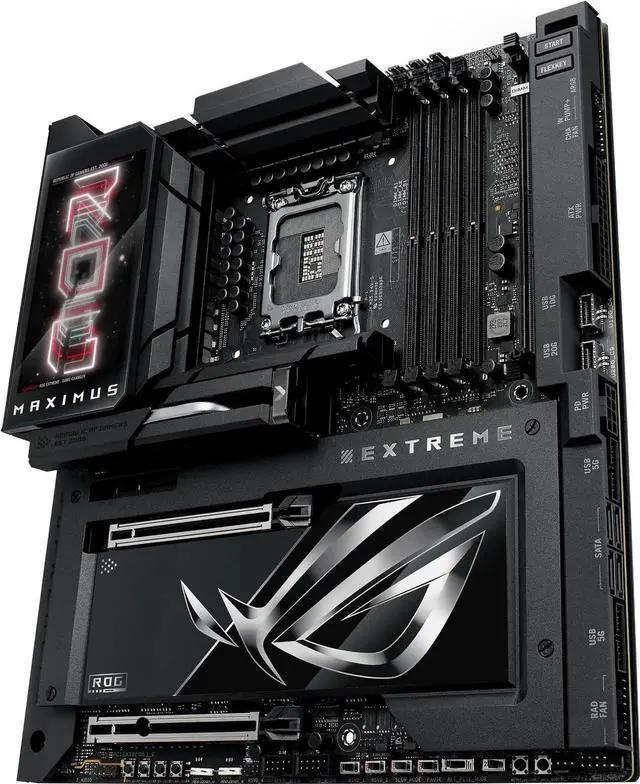

Alt view image 7 of 7 - ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

Shop All ASUS Products | Visit TECH EDGE Store

ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

model: ROG MAXIMUS Z890 EXTREME

ROG MAXIMUS Z890 EXTREME
ROG MAXIMUS Z890 APEX
ROG MAXIMUS Z890 HERO
ROG STRIX Z890-I GAMING WIFI
ROG STRIX Z890-H GAMING WIFI S
ROG STRIX Z890-F GAMING WIFI
ROG STRIX Z890-E GAMING WIFI
ROG STRIX Z890-A GAMING WIFI S
TUF GAMING Z890-PRO WIFI
TUF GAMING Z890-PLUS WIFI
PRIME Z890M-PLUS WIFI
PRIME Z890-P WIFI
PRIME Z890-P
Z890 AYW GAMING WIFI W
ProArt Z890-CREATOR WIFI

CES 2025 Innovation Award Honoree: Recognized in the Computer Hardware & Components category for exceptional design and engineering
Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Supports Intel Core Ultra Processors (series 2)
Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance.
Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by an U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads, and 3D VC M.2 Heatsink for a PCIe® 5.0 M.2 slot

Overview

Specs

Reviews

CES 2025
Innovation Award Honoree: Recognized in the Computer Hardware & Components category for exceptional design and engineering
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Supports Intel Core Ultra Processors (series 2)
Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance.
Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by an U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads, and 3D VC M. 2 Heatsink for a PCIe® 5.0 M. 2 slot

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by TECH EDGE Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Number of Memory Slots	4x288pin (DDR5)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Supports DIMM Flex DIMM Fit NitroPath DRAM Technology * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

PCI Express 5.0 x16	Intel Core Ultra Processors (series 2)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
PCI Express x4	Intel Z890 Chipset 1 x PCIe 4.0x4 slot M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Support Intel Core Ultra Processors (series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel Z890 Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
SATA RAID	*Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Max LAN Speed	10Gbps + 2.5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Meet Your Seller

ASUS ROG MAXIMUS Z890 EXTREME In.tel Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 stages, DDR5, WiFi7, 2.5G/10G LAN, PCIe® 5.0 M.2, Thunderbolt 5, USB Type-C®, AI OC, 5 LCD Screen

Learn more about the ASUS MAXIMUS Z890 EXTREME

Customer Reviews of the ASUS MAXIMUS Z890 EXTREME

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

BIOS Feature	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - LCD Display ASUS AI Advisor ASUS Driver Hub Turbo Vcore ASUS GlideX Thunderbolt Share USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Windows 11	Windows 11, Windows 10 64-bit

Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 10.9"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector

Item#: 9SIBP4ZKJF7937
