Specifications: Compatibility: <=24" LCD
Weight Capacity: 5-30 lbs(2.3-13.6 kg)
Lift: 9"(22.9 cm)
Tilt: 10°
VESA: MIS-D
Additional Information:
Negative-tilt keyboard tray is adjustable 0° to -10°
Maximum Monitor Weight = 25 lbs (11.3 kg)
Monitor thickness greater than 3" (7.6 cm) may decrease capacity
Integrated Cable Management System can be Configured on Either Side
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Package Contents:
StyleView 60-593-195 Vertical Mount Lift
Mouse Pad
Wrist Rest
Mouse Pouch
Specifications: Device Support: Flat Panel Display
Load Capacity: 6-18 lb Maximum for Display
5 lb Maximum for Keyboard, mouse and barcode scanner
Maximum Screen Size Support: 24"
Rotation: 30° - Tilt
Pan: 360°
Rotation: 90°
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Integrated fold-down keyboard tray with right/left mouse tray (includes built-in mouse pad surface)
Negative-tilt keyboard tray adjustable 0 to -10 degrees
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. Separately ordered Wall Track or Wall Plate accessory is recommended to strengthen...
Specifications: Includes fully assembled arm, wall mount base, mounting hardware
Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Arm folds back over the base into a compact retracted position—space between wall and VESA plate is just 4.4" (11 cm) when fully retracted
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Tilt Range: 90° backward, 90° forward
Pan Range: 180° at base; 360° between extension and arm
Extension Range: 2...
Specifications: Weight Capacity:
Display = 6 - 18 lbs. (2.7 - 8.2kg) or up to 25 lbs (11.4kg) with tilt and lift lock-out features engaged
keyboard, mouse and barcode scanner = 4 lbs (1.8kg)
CPU = 50 lbs (22.7kg)
Lift: 25" (64cm)
Tilt: Up +25 degree/ Down -5 degree
Mounting Pattern: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Pan: 360 degree
Rotation: 360 degree
Keyboard Tray Dimensions: 18.6" x 9" (47.2 x 22.8cm)
CPU Dimension: 1-3/8" to 3-3/4" (35 to 95mm) wide; accommodates most small form factor and ultra small form factor CPUs
Monitor Size: Up to 24"
Specifications: OSHPD Pre-approval Number OPA-0620
Fasteners for attaching to wall not included. Fasteners may be purchased from Ergotron: part number 97-531 for metal or wood studs; part number 90-011 for hollow walls
Separately-order brackets required to attach Ergotron components: part number 97-091 for LX & MX Arms, Neo-Flex Wall Mounts, 400, 200 and 100 Series Arms and Pivots, and Universal CPU Holder; part number 60-156 for Medium and Small CPU Holders
Dimensions: 26" x 5" x .87" (660 x 127 x 22 mm)
Shipping Weight: 4 lbs (1.8 kg)
Specifications: Screen: <= 34.00"
Lift: 13.00" (33.00 cm)
Tilt Range: 70 degrees backward, 5 degrees forward
Pan: 360 degress
Rotation: 360 degrees
VESA: MIS-D
Mounting Options: Desk Clamp attaches to surface edge 0.40" to 2.40" (10.00 to 60.00 mm) thick; Grommet Mount attaches through surface holes 0.31" to 2.00" (8.00 to 50.00 mm) wide and up to 2.25" (57.00 mm) thick
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100.00 x 100.00 mm & 75.00 x 75.00 mm)
Weight Capacity: 7.00 to 25.00 lbs. (3.20 to 11.30 kg). With monitors greater than 20.00 lbs. (9.10 kg) in weight, the vertical range of motion may be reduced up to 4.50" (11.00 cm) for a total height range of 8.50" (22.00 cm)
Note: If installed on WorkFit-T or WorkFit-TL, maximum allowable monitor weight is reduced to 14.00 l...
Specifications: Certifications & Standards: VESA 100/75
VESA FDMI MIS-D
VESA C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Load Capacity: 35 lb Maximum
Color: Black
Specifications: Includes Includes: 10" and 34" Wall Tracks with two black track covers, LX Wall Mount LCD Arm, LX Keyboard Arm, wrist rest, mouse pad, mouse holder, Small CPU Holder, two 10" Cable Channels, mounting kits for hollow-wall and wall-stud installation
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Polished aluminum construction offers greater durability and enhanced aesthetics
Snap-fit cap secures interface of arms to extensions for greater stability
Weight Capacity: display = 7-25 lbs (3.2-11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 50 lbs (22 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Mounting Standards: VESA FDMI MIS...
Specifications: LCD Size: < 24"
Wt. Capacity: 6–16 lbs, 2.7–7.2 kg
Lift: 5", 13 cm
Tilt: 35°
Pan: 70°
Rotation: 90° P/L
VESA: MIS-D
Description: Neo-Flex Wall Mount Lift (black)
Monitor depth greater than 2" (5 cm) may diminish capacity. Read more
Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. To increase support, a separately-ordered Wall Track accessory is recommended
Specifications: Includes mouse pad, wrist rest, mouse pouch
+ Larger display sizes may inhibit the keyboard tray folding flat in storage position
Weight Capacity: Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Fold-down keyboard tray
Negative-tilt keyboard tray is adjustable 0° to -10°
Integrated cable management system can be configured on either side
Easy-to-clean exterior
Specifications: Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Maximum outside width of display: 21.25" (Displays are 2" (5 cm) thick)
Typically horizontal dimension: 22"
Specifications: LCD Size: < 24"
Wt. Capacity: 31 lbs (14 kg) per monitor; 124 lbs (56 kg) total
Rotation: 360° P/L
VESA: MIS-D

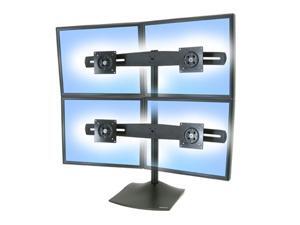

Description: DS100 Quad-Monitor Desk Stand (black)
Includes: Base, 28" pole, two (2) Paraview bows, four (4) sliding brackets, manual
Maximum LCD outside width is 23-1/4" (59 cm)
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Specifications: Weight Capacity: 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse
Motion may be restricted when using 22"–24" monitors in portrait mode
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Five-inch (13 cm) height adjustment ergonomically accommodates average range of users
Meets tip test requirements of UL Specification 1678 + Removal of lock screw allows portrait to landscape rotation (90°)
Compatible with most 15"–24" displays, and most small or ultra small form factor CPUs.
Maximum CPU size = 15"W x 14"H x 4.5"D (38 x 35.6 x 11.4 cm); minimum CPU size = 7"W x 7"H x 2"D (18 x 18 x 5.1 cm). Provided rubber spacer must be used to accommodate CPU depths of less than 3" (7.6 cm)
Moun...
Specifications: Description: Spacer kit for mounting to 75 x 75 mm recessed monitors (black)
Includes (1) spacer and (4) Phillips pan head M4 x 25 mm screws
Specifications: Display size is dependent on overall configuration of the DS100 Stand; observe balance requirements to prevent tipping
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Attaches to DS100 Pole only; cannot attach to DS100 Crossbar
Specifications: Device Support: Flat Panel Display / Keyboard
Maximum Screen Size Support: 24"
Color: White
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75 /100 x 100
Material: Steel
Specifications: Device Supported: Flat Panel Display
Maximum Load Capacity: 25.00 lb
Maximum Screen Size Supported: 42"
Color: Polished Aluminum
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75, 100 x 100, 200 x 100, 200 x 200
Height: 20.0"
Depth: 33.0"
Weight (Approximate): 11.00 lb
Specifications: Colour: black
Includes 200 Wall Mount Pivot, wall mount bracket, 1 extension, VESA mounting screws
Extends up to 14.8" (37.6 cm) from the wall and retracts to within 5.8" (14.8 cm), excluding depth of monitor
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Weight Capacity: 25 lbs (11.3 kg)
Monitor depth greater than 3" (7.5 cm) may diminish capacity
Durable, easy-to-clean powder-coated painted steel exterior
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud
Specifications: LCD Size: <= 24"
Lift: 13"(33 cm)
Tilt : 85°
Pan: 360°
Rotation: 360° P/L
VESA: MIS-D

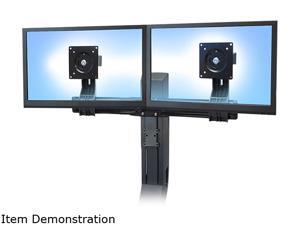

Versatile: Use with a notebook and LCD or with two LCDs
Weight Capacity: Maximum individual LCD weight = 7 to 20 lbs (3.1 to 9.1 kg); notebook weight range = 2.5–12 lbs (1.1–5.4 kg); maximum combined weight = 40 lbs (18.1 kg). Monitor depth may affect weight capacity
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions: 19.25" x 15.25" x 9" (487 x 387 x 229 mm)
Shipping Weight: 15.75 lbs (7.18 kg)
