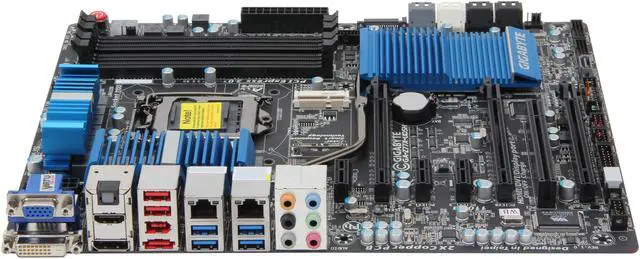

Alt view image 3 of 5 - GIGABYTE GA-Z77X-UD5H-WB LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

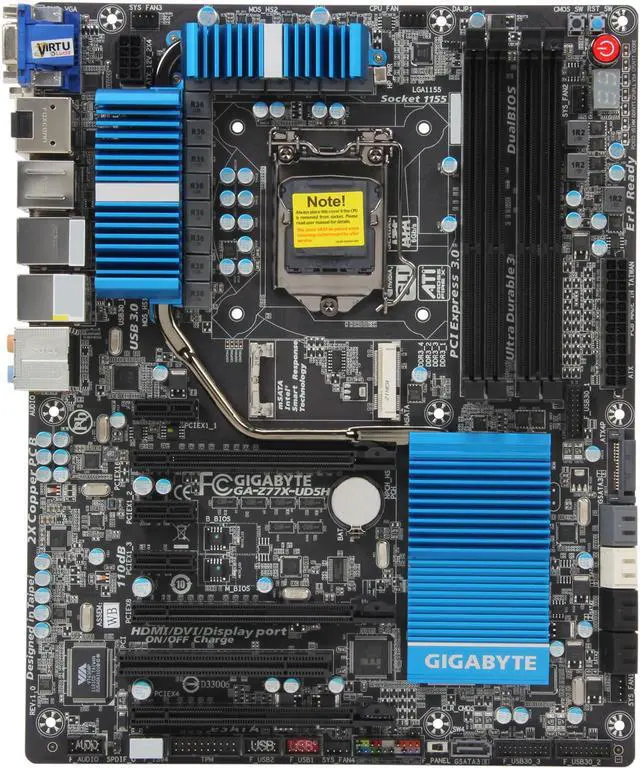

Alt view image 4 of 5 - GIGABYTE GA-Z77X-UD5H-WB LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

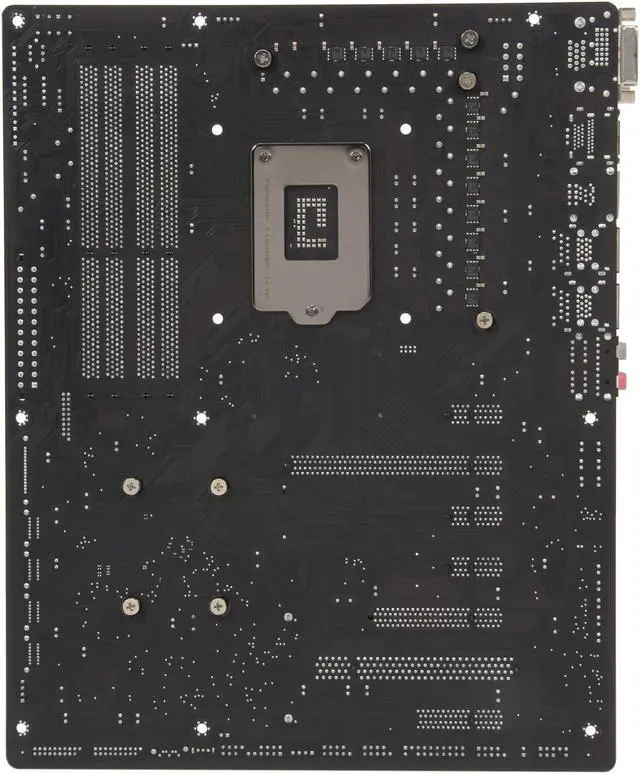

Alt view image 5 of 5 - GIGABYTE GA-Z77X-UD5H-WB LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Shop All GIGABYTE Products

GIGABYTE GA-Z77X-UD5H-WB LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

(49) Write a Review

Intel Z77
Core i7 / i5 / i3 (LGA1155)
DDR3 2400(OC)/1600/1333/1066

Overview

Specs

Reviews (49)

Model
Brand	GIGABYTE
Model	GA-Z77X-UD5H-WB

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 (LGA1155)

Chipsets
Chipset	Intel Z77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 2400(OC)/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	3 (x16, x8, x4)
PCI Express x1	3 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	5 x SATA 6Gb/s
SATA RAID	2 x SATA 6Gb/s (SATA3 0/SATA3 1) and 4 x SATA 3Gb/s (SATA2 2~5) Support for RAID 0, 1, 5, 10

Onboard Audio
Audio Chipset	Realtek ALC898
Audio Channels	8 Channels

Onboard LAN
Max LAN Speed	2 x 1Gbps
Wireless LAN	WiFi IEEE 802.11a/b/g/n (supported by GC-WB300D )
Bluetooth	Bluetooth 4.0 (supported by GC-WB300D )

Rear Panel Ports
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
IEEE 1394	1 x IEEE 1394a
eSATA	1 x eSATA 6Gb/s
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	6 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 1 x mSATA connector 1 x CPU fan header 4 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header 1 x power button 1 x reset button 1 x Clear CMOS button 1 x heatsink LED power connector 1 x BIOS Switch Voltage Measurement Points

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Features
Features	The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed. Exclusive Bluetooth 4.0/WiFi Expansion Card GIGABYTE All Digital Power Engine GIGABYTE 3D Power Utility GIGABYTE 3D BIOS 3rd Generation Intel Core processors Designed for PCI Express Gen.3 Support Intel Rapid Start Technology Intel Smart Connect Technology Onboard OC Features GIGABYTE Ultra Durable 4 - Insist on an Ultra Durable Motherboard

Additional Information
First Listed on Newegg	April 08, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable
Return for replacement within: 30 days
This item is covered by Newegg.ca's Replacement Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-626-854-9338
