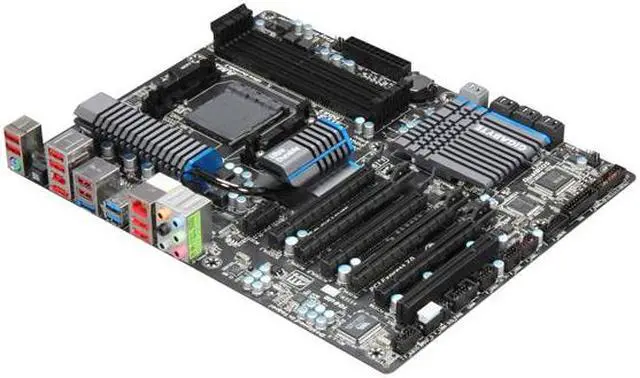

GIGABYTE GA-990FXA-UD5 AM3+ AMD 990FX + SB950 USB 3.0 ATX AMD Motherboard

Be the first to review this product...
  • AMD 990FX + SB950
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 2000(O.C.)/1866/1600/1333/1066
Specs
Reviews

Learn more about the GIGABYTE GA-990FXA-UD5

Model
Brand GIGABYTE
Model GA-990FXA-UD5
Supported CPU
CPU Socket Type AM3+
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
Chipsets
Chipset AMD 990FX + SB950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2000(O.C.)/1866/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 5 (x16, x16, x8, x4, x4)
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
Serial ATA (SATA) 8 x SATA 6Gb/s
SATA RAID 6 x SATA 6Gb/s connectors (SATA3_0~SATA3_5) support RAID 0, 1, 5, 10 and JBOD
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) and 2 x eSATA 6Gb/s support RAID 0, 1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC889
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
USB 3.0 2 x USB 3.0
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394
eSATA 2 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Onboard 1394 1 x 1394a
Other Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x IEEE 1394a header
1 x serial port header
1 x clearing CMOS jumper
1 x Trusted Platform Module (TPM) header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Get Ready for New Generation of 32nm AMD AM3+ CPU

Driver MOSFETs - Integration of VRM Components

Multi-display Support with 3-way SLI and 3-way CrossFireX

AMD OverDrive Support

108dB Signal-to-Noise ratio playback

DualBIOS 3TB+ HDD Support (Hybrid EFI Technology)

Turbo XHD- Full Automatic RAID 0/Stripe

GIGABYTE innovative technology- Easy Energy Saver
Additional Information
First Listed on Newegg July 18, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
