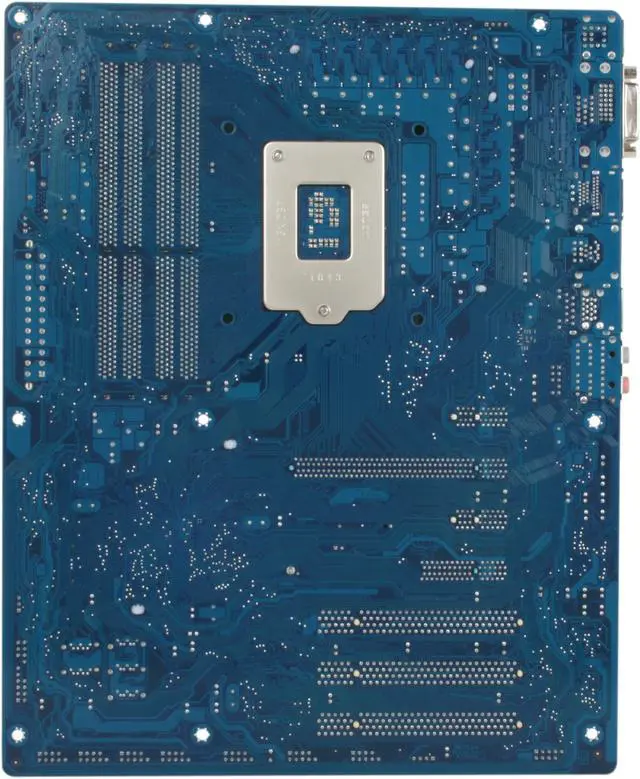

GIGABYTE GA-H67A-UD3H-B3 LGA 1155 Intel H67 HDMI USB 3.0 ATX Intel Motherboard

(40) Write a Review
  • Intel H67
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1333/ 1066/ 800
Specs
Reviews (40)

Learn more about the GIGABYTE GA-H67A-UD3H-B3

Model
Brand GIGABYTE
Model GA-H67A-UD3H-B3
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Chipsets
Chipset Intel H67
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333/ 1066/ 800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16, x4)
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC889
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x DisplayPort / 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2 1 x PS/2 keyboard/mouse port
Video Ports D-Sub + DVI
HDMI 1 x HDMI
DisplayPort 1 x DisplayPort
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 10 x USB 2.0
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
First Listed on Newegg March 08, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
