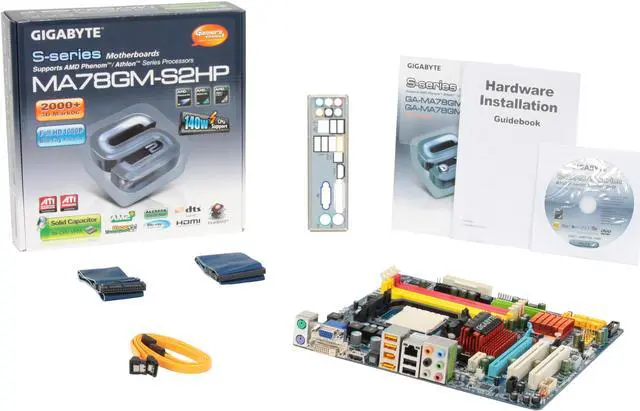

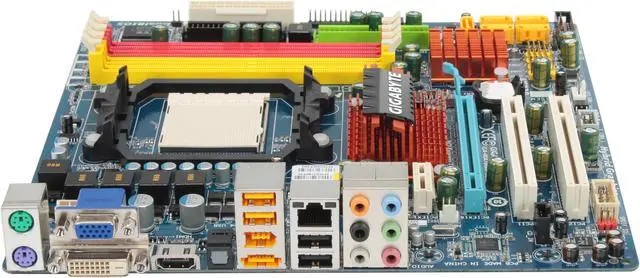

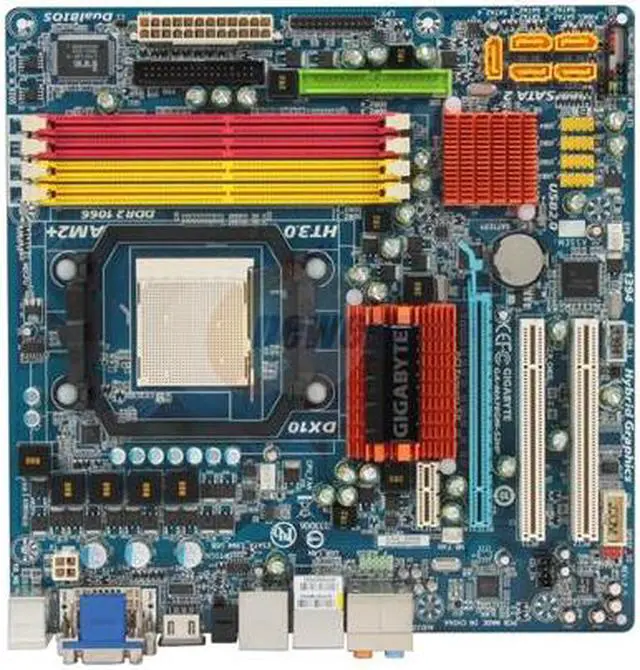

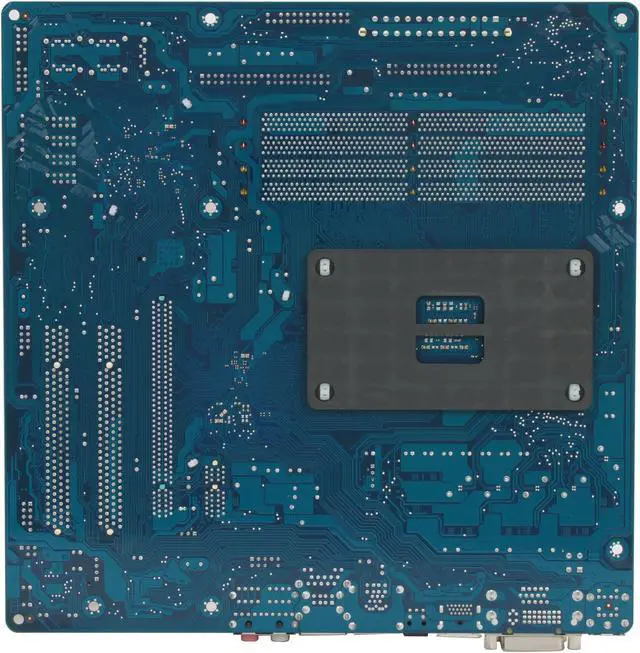

GIGABYTE GA-MA78GM-S2HP AM2+/AM2 AMD 780G HDMI Micro ATX AMD Motherboard
(94)
Write a Review
AMD 780G
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
DDR2 1066(depends on CPU)/800
Overview
Specs
Reviews
(94)
Learn more about the GIGABYTE GA-MA78GM-S2HP
Model
Brand
GIGABYTE
Model
GA-MA78GM-S2HP
Supported CPU
CPU Socket Type
AM2+/AM2
CPU Type
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Chipsets
Chipset
AMD 780G
South Bridge
AMD SB700
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 1066(depends on CPU)/800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
1 x PCI Express 2.0 x16
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
ATI Radeon HD 3200
Onboard Audio
Audio Chipset
Realtek ALC889A
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111C
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2
2
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
1 x eSATA 3Gb/s
S/PDIF Out
1 x Optical
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0/1.1 headers
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
24 Pin
Additional Information
First Listed on Newegg
November 14, 2008
