Graphics Core NVIDIA GeForce RTX 5080 GPU
Streaming Processors 10752
Memory 16GB GDDR7
Memory Bus Width 256-bit
Core Clock 2730 MHz
Memory Clock 30 Gbps
AI TOPS
PCI Express PCI Express 5.0 x16

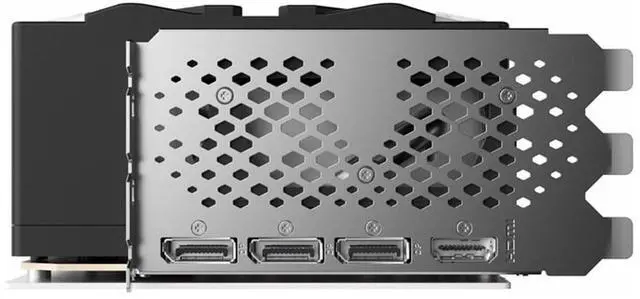

Output Ports 3 x DisplayPort 2.1b
(up to 15360×8460 @ 60Hz)
1 x HDMI® Connector
(Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)
HDCP 2.3 Support
Multi-Display Capability: Quad Display
Recommended Power Supply: 800W
Power Consumption: 360W
Power Connectors: 12V-2x6
DirectX: Microsoft DirectX® 12 Ultimate
OpenGL: 4.6

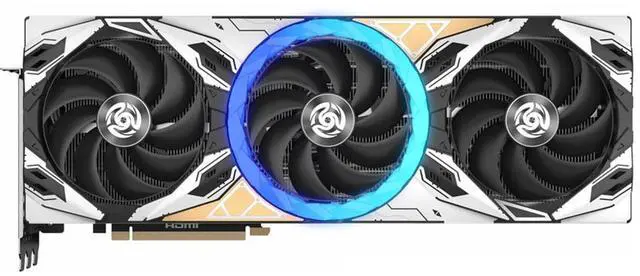

Cooling
Slot Occupancy: 3.5
SLI: No
System Support: Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Dimensions: 361mm x 138mm x 73mm
Accessories
3x 8-pin to 16-pin power cables*1
User manual
ARGB sync cable*1
Graphics card bracket*1
