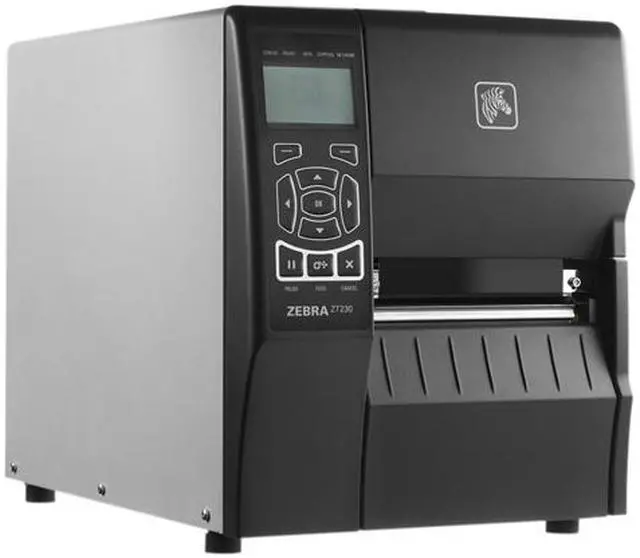

Zebra ZT230 ZT23042-T01200FZ Direct thermal and Thermal Transfer (optional) 152mm/6" per second 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Label Printer

Be the first to review this product...

Direct thermal and Thermal Transfer (optional)
152mm/6" per second
203 dpi (8 dots/mm)
300 dpi (12 dots/mm)

Overview

Specs

Reviews

Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.

General
Brand	Zebra
Series	ZT230
Model	ZT23042-T01200FZ

Printer
Print Technology	Direct thermal and Thermal Transfer (optional)
Print Speed	152mm/6" per second
Max Resolution(B&W)	203 dpi (8 dots/mm) 300 dpi (12 dots/mm)
Memory	128MB Flash, 128MB RAM
Fonts Included	Fonts A, B, C, D, E, F, G, H, and GS are expandable up to 10 times, height and width independently. However, fonts E and H (OCR-A and OCR-B) are not considered -in-spec" when expanded. The scalable smooth font 0 (CG Triumvirate? Bold Condensed) is expandable on a dot-by-dot basis, height and width independent, while maintaining smooth edges. Maximum character size depends on available memory. IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G, and 0 through software control.
Barcode Type	Bar code modulus "X" dimension: - Picket fence (non-rotated) orientation: 203 dpi = 4.9 mil to 49 mil 300 dpi = 3.3 mil to 33 mil - Ladder (rotated) orientation: 203 dpi = 4.9 mil to 49 mil 300 dpi = 3.9 mil to 39 mil Bar code ratios – 2:1, 7:3, 5:2, & 3:1 Linear bar codes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2-dimensional bar codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Cutter	Guillotine

Media Handling
Media Type	continuous, die-cut, notch, black mark
Media sizes supported	Maximum label and liner width: 4.50"/114 mm Minimum label and liner width: 0.75" (19.4 mm) Maximum Media Roll Size: 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core 6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core Media thickness: 0.003"/0.076 mm to 0.010"/0.25 mm

Connections
Interface	USB 2.0 RS-232 serial ports

Features
Features	Element Energy Equalizer (E3R) for superior print quality USB 2.0 and RS-232 serial ports Dual media sensors - transmissive and reflective sensing technology, selectable through software or front panel Media supply hanger designed for 1" (25mm) through 3" (76mm) core diameters Side loading metal print mechanism with head open lock Link-OS environment capable

Dimensions & Weight
Dimensions	10.90" x 9.50" x 17.00"
Weight	20.00 lbs.
