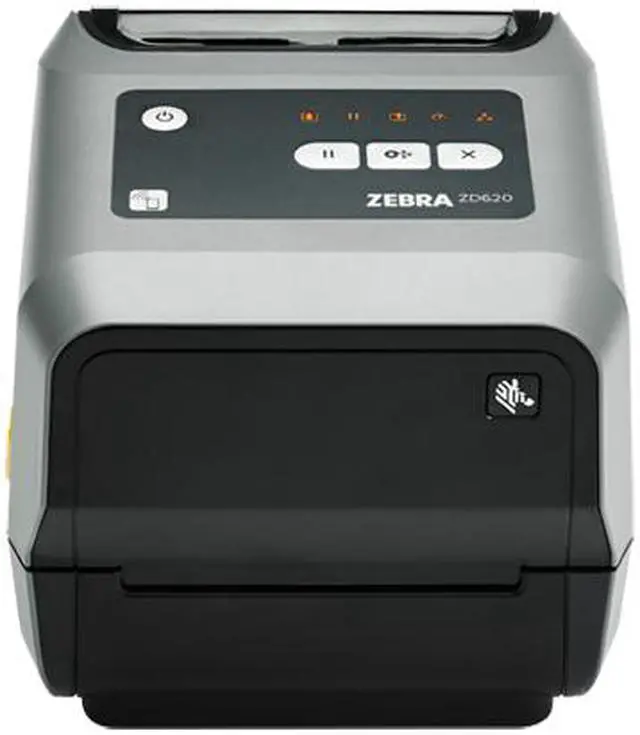

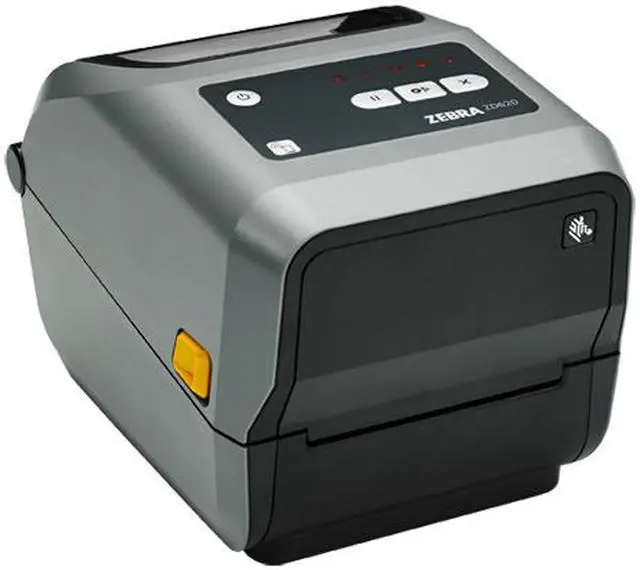

Zebra ZD620 Series Desktop Thermal Transfer Printer, Icon, 203 dpi, USB, USB Host, Serial, Ethernet, 802.11, Bluetooth USA/Canada, Standard EZPL - ZD62142-T01L01EZ

203 dpi @ 8 ips
Features a media dancer that maintains even tension on the media roll
3-button user interface w/ 5 LED status icons replaces the typical single button/single light interface common in desktop printers
Backwards compatibility w/ virtually any existing printer, you’ll be able to use the same label formats & applications you’re using today; supports both EPL & ZPL
Using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD620 to pair and print
ZD620’s movable media sensor lets you use virtually any media from any manufacturer
Supports Zebra Link-OS, a one-of-a-kind enterprise printer OS to easily manage & troubleshoot networked printers from one remote location
Intelligent dual-ribbon handling to accept either 74 m/244 ft. or high capacity 300 m/ 984 ft. ribbons
Includes US power cord

Specs

Reviews

Printer
Print Technology	Thermal Transfer Printer
Printer Type	Desktop
Print Speed	8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi)
Max Resolution(B&W)	203 dpi
Memory	512 MB Flash; 256 MB SDRAM
Fonts Included	16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
Barcode Type	Barcode Ratios: 2:1 and 3:1 1D Barcodes Code 11, Code 39, Code 93, Code 128, ISBT128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2D Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Ribbon Characteristics	Ribbon Outside Diameter: 2.60"/66 mm (300 m); 1.34"/34 mm (74 m) Ribbon Standard Length: 984 ft. (300 m); 244 ft. (74 m) Ribbon Ratio: 1:4 media to ribbon (300 m) 1:1 media to ribbon (74 m) Ribbon Width: 1.33"/33.8 mm ? 4.30"/109.2 mm Ribbon Core I.D.: 300 meter ribbon 1.00"/25.4 mm 74 meter ribbon 0.50"/12.7 mm

Media Handling
Media Type	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Media sizes supported	Maximum Label Length: 39.00"/991 mm Media Width: 0.58"/15 mm to 4.65"/118 mm Media Roll Size Maximum outer diameter: 5.00"/127 mm Core inner diameter: 0.50"(12.7 mm) and 1.00" (25.4 mm) standard, 1.50" (38.1), 2.00", (50.8 mm) and 3.00" (76.2 mm) using optional adapters Media Thickness: 0.003" (0.08 mm) min.; 0.0075" (0.1905 mm) max. (tear-off mode only

Connections
Interface	Bluetooth / Ethernet / Serial / USB / WiFi

Features
Features	Thermal Transfer print method ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host, Serial, Ethernet, BTLE Media dancer OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR qualified Real Time Clock

Dimensions & Weight
Dimensions	7.50" x 8.00" x 10.50"
Weight	5.50 lbs.

Additional Information
First Listed on Newegg	May 12, 2023

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
