Zebra (Motorola Symbol) LS3578-FZ Bar Code Reader - Wireless Connectivity - 36 scan/s - 45 ft Scan Distance - 1D - Laser with integrated Bluetooth, with Charging Cradle and USB Cord

Symbol LS3578-FZ

Rugged, Cordless Scanner with Integrated Bluetooth

Accurately Scan Damaged or Poorly Printedbar Codes

The Symbol LS3578-FZ cordless scanner provides fuzzy logic technology, enabling you to rapidly and accurately read damaged, dirty and poorly printed one-dimensional (1D) bar codes often found in industrial environments.

In the yard, warehouse, distribution center, manufacturing plant or retail store, the Symbol LS3578-FZ offers superior performance and reliability as well as a user-friendly form factor that helps ensure comfortable use over long shifts. Plus, integrated Bluetooth provides reliable and secure wireless data transmission between the scanner and host, including Motorola’s rugged VC5090 Vehicle-Fixed Mount Mobile Computer.

Cordless Freedom for Improved Productivity

With no cord between the scanner and host, employees can move freely throughout their work environment, increasing productivity and efficiency while keeping supply chain inventory up to date at all times. Plus, having no cord reduces downtime from cable breakdowns -- a common point of failure in handheld devices used in industrial facilities.

Rugged Design to Maximize Uptime

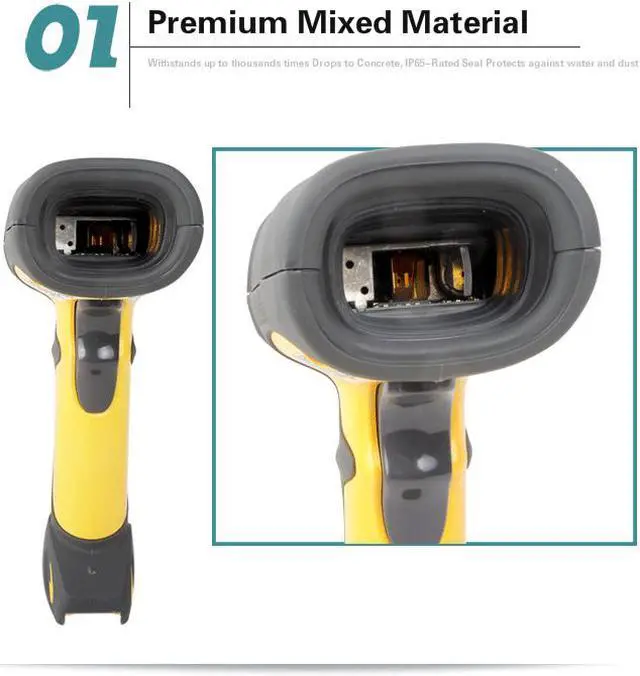

As rugged as it is innovative, the Symbol LS3578-FZ is designed for scan-intensive industrial applications in the harshest operating conditions. Industry-leading impact tests ensure reliable performance in spite of the inevitable accidental drops. The device is impervious to dust and water, and its exit window is scratch-resistant and recessed for the highest level of durability. As a result, you avoid unnecessary equipment downtime or expensive equipment replacement costs.

Low Total Cost of Ownership (TCO)

In addition to enhancing productivity, the LS3578-FZ offers a low TCO. The industrial-strength construction maximizes the scanner’s working life, and multiple on-board interfaces provide true plug-and-play simplicity with your host system today and tomorrow. Support for Remote Scanner Management (RSM) enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs.

And since even the most rugged devices require a support plan, a full complement of Enterprise Mobility Services are available to help you protect your investment and maintain peak performance.

Specifications

Physical Characteristics

Dimensions (L x W x D): 7.34 x 4.82 x 2.93in.(18.65 x 12.25 x 7.43cm)

Weight: (including LiON battery) 14.6oz (414g)

Battery: 2200mAh Lithium Ion Battery

Battery charge time: Fully charged (100%) in 3 hours

Color: Twilight Black and Yellow

Performance Characteristics

Scanner Type: Retrocollective

Light Source: 650nm visible laser diode

Scan Repetition: 36 scans per second typical

Minimum element width: 5mil (0.127mm)

Nominal working distance: See decode zone

Print contrast: 25% minimum reflective difference

Roll (Tilt): ± 10 degrees from normal

Pitch: ± 65 degrees from normal

Skew (Yaw): ± 50 degrees from normal

Decode capability: UPC.EAN, UPC.EAN with Supplemental, GS1-128 (formerly UCC/EAN 128),JAN 8 & 13, Code 39,Code 39 Full ASCII,Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar(NW7), Interleaved 2 of 5,Discrete 2 of 5, Code 93, MSI, Code 11,Code 32, Bookland EAN, IATA, GS1DataBar(formerly RSS)

Interfaces supported: RS232, Keyboard Wedge, IBM 468X/469X, USB and Synapse
