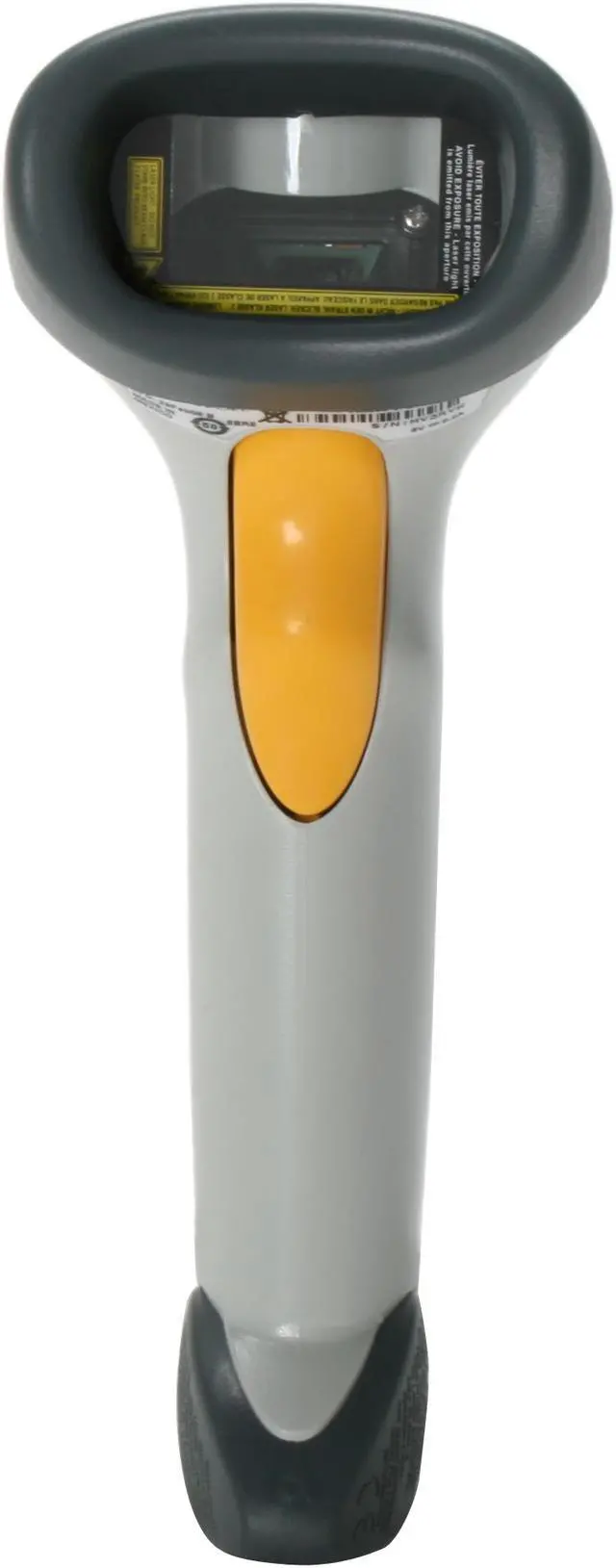

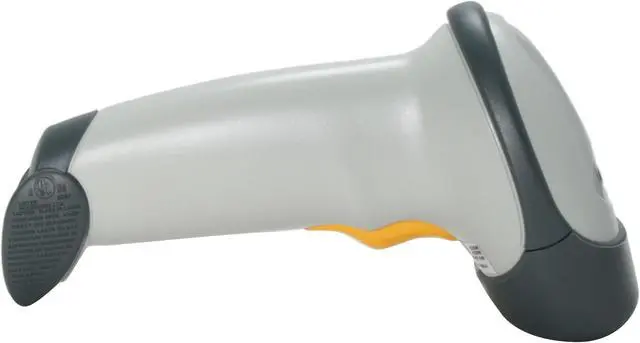

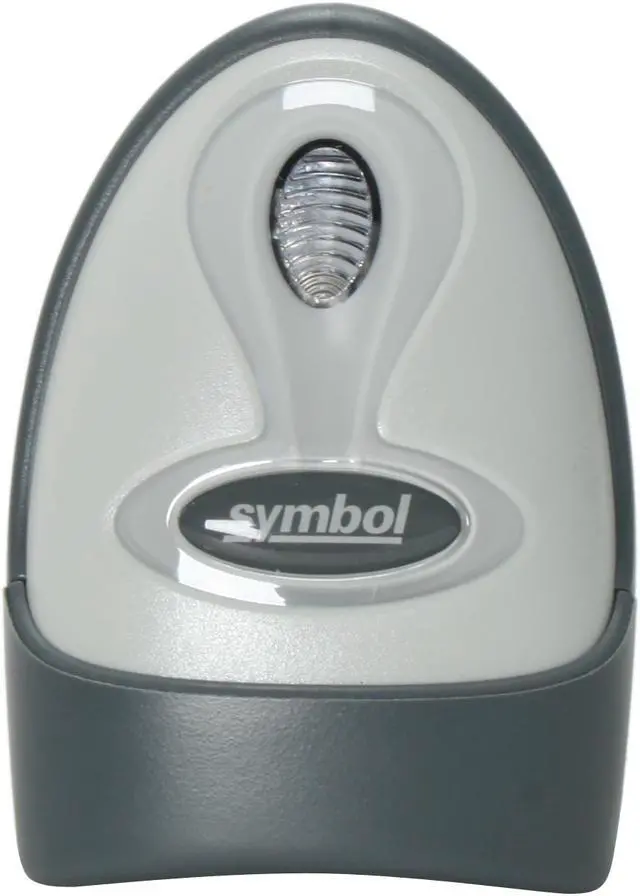

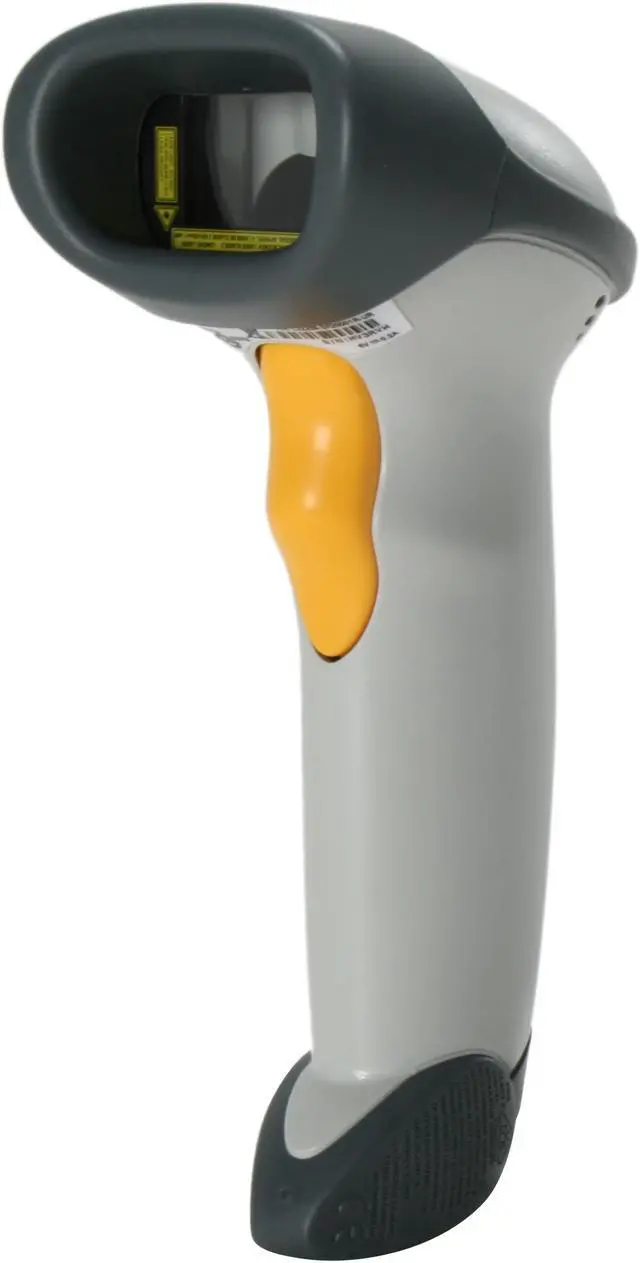

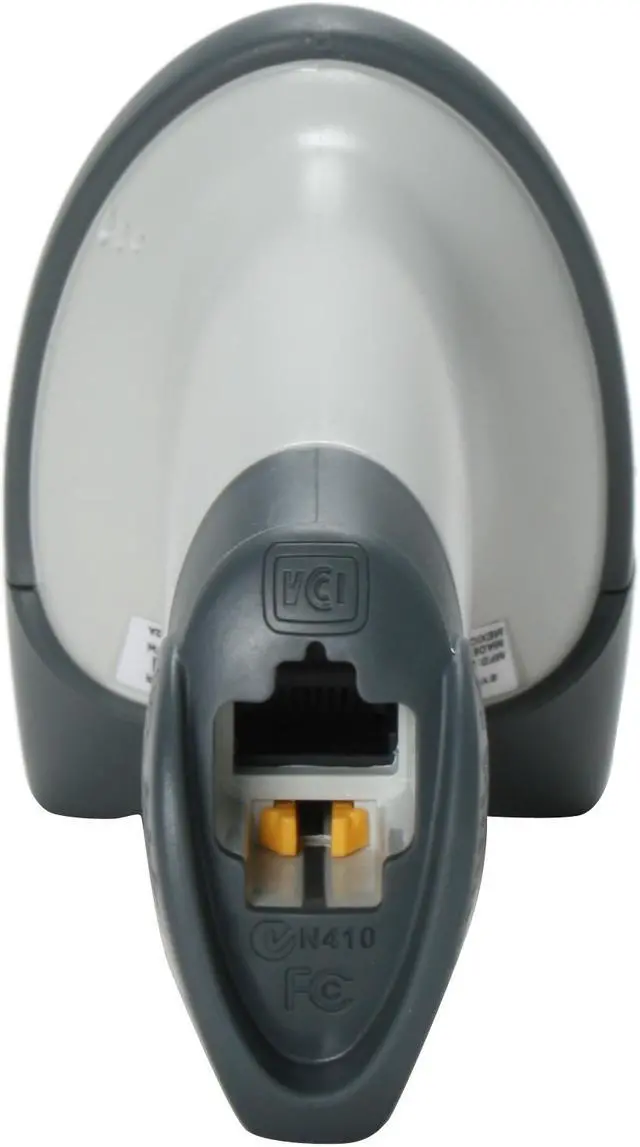

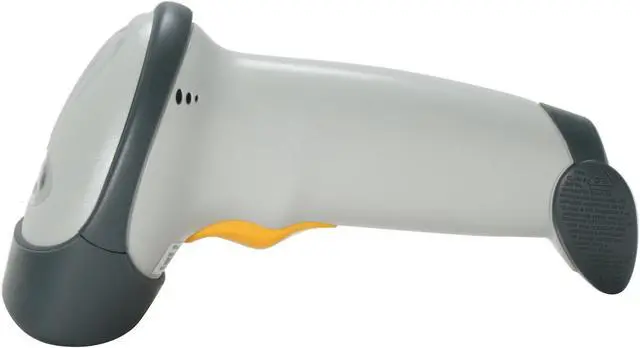

Zebra (Motorola) Symbol LS2208 Series LS2208-SR20001R-NA Handheld Barcode Scanner - USB Kit with Cable and Stand
OPEN BOX Product Type
- Laser
- 100 scans/second
- USB Interface

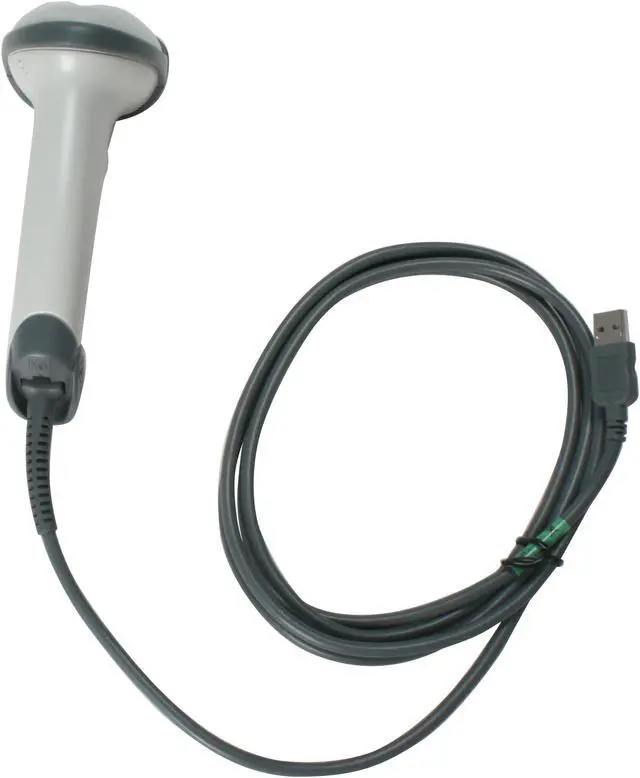

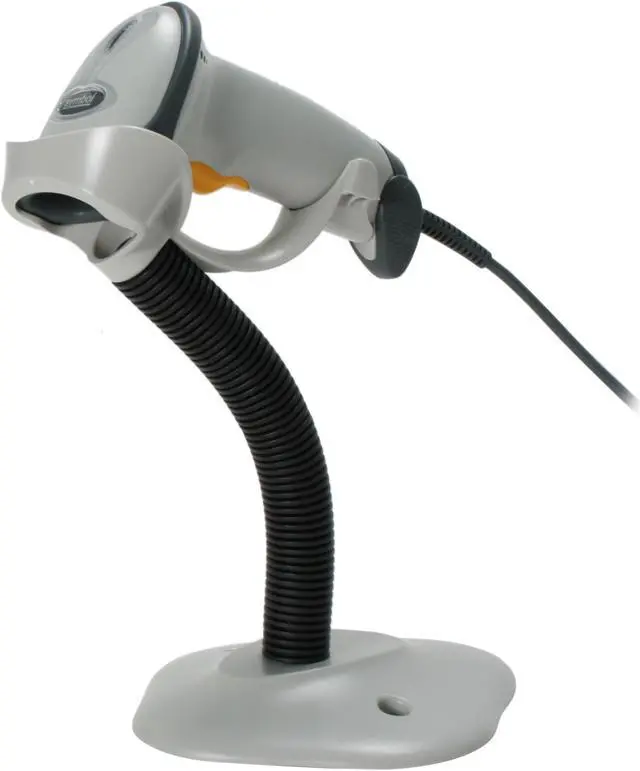

- Includes USB Cable and Stand
+
+
Specs
Learn more about the Zebra LS2208
| Brand | Zebra |
|---|---|
| Series | Symbol |
| Model | LS2208 |
| Part Number | LS2208-SR20001R-NA |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D Laser |
| Included Cables | USB Cable w/ Stand |
|---|---|
| Interfaces Supported | USB |
| Light Source | 650 nm Laser Diode Class 2 |
|---|---|
| Resolution | Code 39: 3.0 mil |
| Pitch | ±65 degree |
| Roll | ±30 degree |
| Yaw | ±60 degree |
| Scan Speed | 100 sps |
| Print Contrast Ratio (Minimum) | 20% minimum reflective difference |
| Decoding Capability | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5 |
| Input Voltage | Operating Current at Nominal Voltage (5.0V): 175 mA (typical) Standby Current (idle) at Nominal Voltage (5.0V): 90 mA (typical) |
|---|
| Color | Cash Register White |
|---|---|
| Dimensions | 6.00" x 2.50" x 3.34" |
| Weight | 0.33 lb. |
| Features | Ambient Lighting Tolerance: Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 ft. Candles (4,844 Lux) Sunlight: 8000 ft. Candles (86,111 Lux) Electrostatic Discharge: Conforms to 15 kV air discharge and 8 kV of contact discharge Electrical Safety: Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950 EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori Laser Safety: CDRH Class II, IEC Class 2 Environmental: Compliant with RoHS directive 2002/95/EEC |
|---|---|
| Drop | Unit functions normally after repeated 5.00 ft. / 1.50 m drops to concrete |
| Ruggedness | General Purpose |
| First Listed on Newegg | April 10, 2009 |
|---|
