9-pin male D-sub - USB (full speed) and TTL level RS232 with RTS and CTS
+
+
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES:
Connectivity Technology: Cable
Barcode Dimension: 1D, 2D
Barcode Symbology Supported:
1D:
All major 1D bar codes
2D:
PDF417
Data Matrix
QR Code
Aztec
Composite Codes
Maxi Code
Postal:
US Postnet
US Planet
UK Postal
Australian Postal
Japan Postal
Image Sensor: Imager
Host Interface: Serial, USB
Color: Dark Gray
Height: 1.2"
Width: 2.4"
Length: 2.3"
Weight (Approximate): 3.90 oz
Environmentally Friendly: Yes
Environmental Certification: RoHS
Limited Warranty: 3 Year

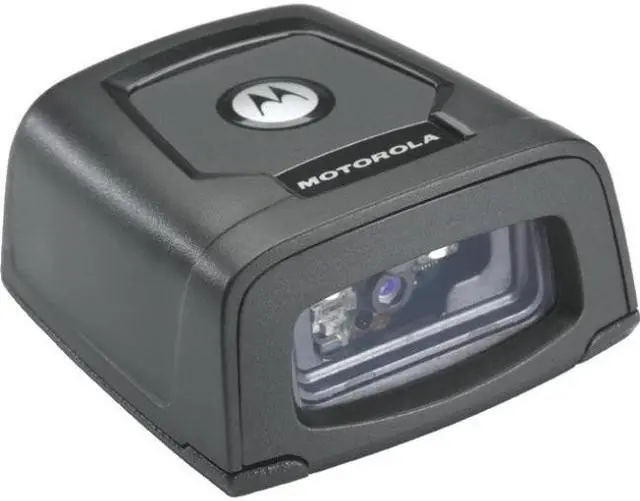

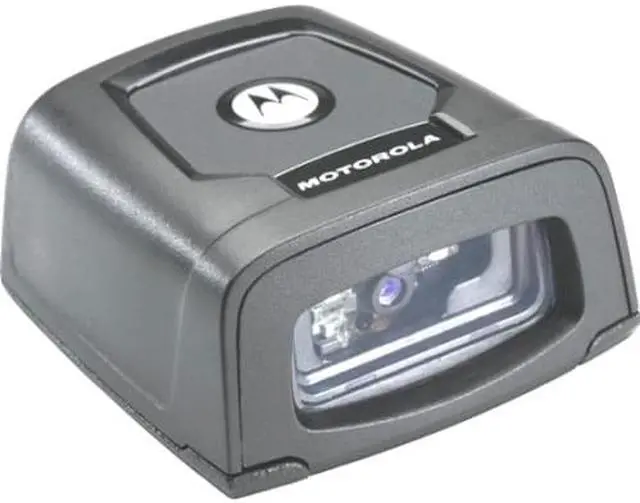

Learn more about the Zebra DS457 (DS457-DL20009)
General
Brand
Zebra
Model
DS457 (DS457-DL20009)
Part Number
DS457-DL20009
Form Factor
Fixed-position
Connectivity
Corded
Scan Engine
2D Imager
Connectivity
Interfaces Supported
9-pin male D-sub - USB (full speed) and TTL level RS232 with RTS and CTS
Scan Performance
Imager Field of View
39.6° horizontal, 25.7° vertical
Resolution
52 (H) x 480 (V) gray scale
Depth of Scan Field
3 mil - Code 39 1.30" - 8.10" at 5 mil - Code 39 1.80" - 16.50" at 20 mil - Code 39 1.50" - 15.30" at 13 mil - UPC 4 mil - Datamatrix 5 mil - Datamatrix 2" - 6" at 7.50 mil - Datamatrix 1.50" - 8.40" at 10 mil - Datamatrix 1.60" - 10.90" at 15 mil - Datamatrix 5 mil - QR Code 2.10" - 5.10" at 7.50 mil - QR Code 1.50" - 7" at 10 mil - QR Code 4 mil - PDF417 1.80" - 7.10" at 6.67 mil - PDF417 1.20" - 10.20" at 10 mil - PDF417 1.50" - 13"at 15 mil - PDF417
