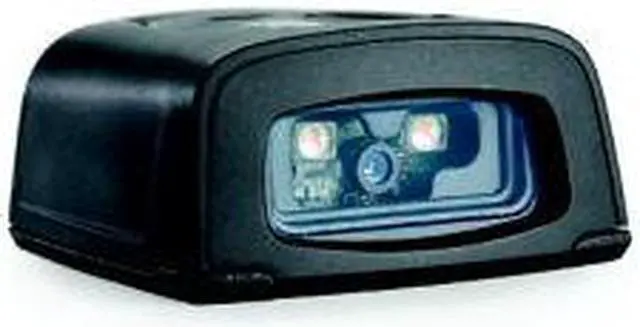

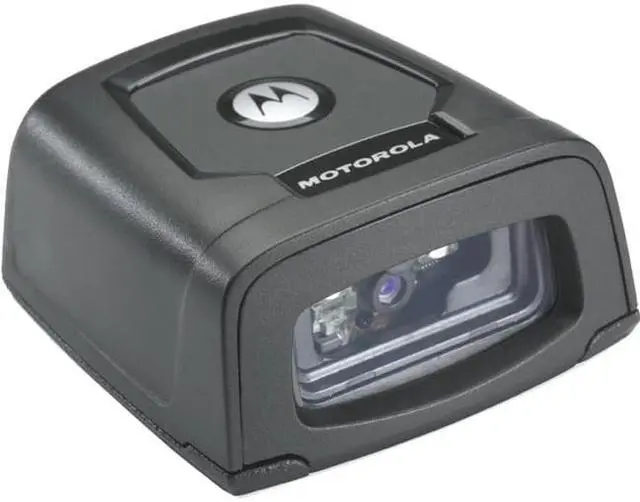

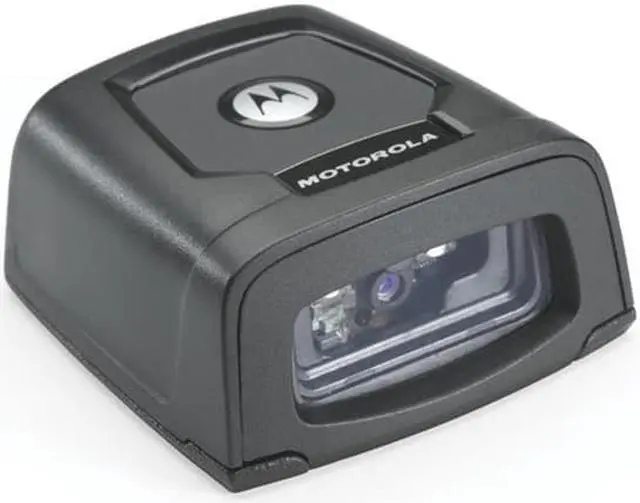

DS457 Fixed Mount Imager (DS457-SR Scanner Only, RS232/USB)
Learn more about the Zebra DS457
General
Brand
Zebra
Model
DS457
Part Number
DS457-SR20009
Form Factor
Fixed-position
Connectivity
Corded
Scan Engine
2D
Connectivity
Included Cables
Scanner Only - No Cable
Interfaces Supported
9-pin male D-sub - USB (full speed) and TTL level RS232 with RTS and CTS
Scan Performance
Imager Field of View
39.6° horizontal, 25.7° vertical
Resolution
5 mils
Depth of Scan Field
1.30" - 8.10" at 5 mil - Code 39 1.80" - 16.50" at 20 mil - Code 39 1.50" - 15.30" at 13 mil - UPC 2" - 6" at 7.50 mil - Datamatrix 1.50" - 8.40" at 10 mil - Datamatrix 1.60" - 10.90" at 15 mil - Datamatrix 2.10" - 5.10" at 7.50 mil - QR Code 1.50" - 7" at 10 mil - QR Code 1.80" - 7.10" at 6.67 mil - PDF417 1.20" - 10.20" at 10 mil - PDF417 1.50" - 13" at 15 mil - PDF417
Print Contrast Ratio (Minimum)
25%
Electrical
Input Voltage
5 VDC +/- 10% at 450 mA
Regulatory
Electrical Safety: ETL, VDE, CETL, EN60950, Ctick, VCCI Laser Classification: Intended for use in CDRH Class II/IEC 825 Class I devices EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B Environmental: RoHS compliant
Mechanical
Dimensions
1.15" x 2.44" x 2.30"
Weight
0.25 lb.
Features
Drop
5.77 ft.
