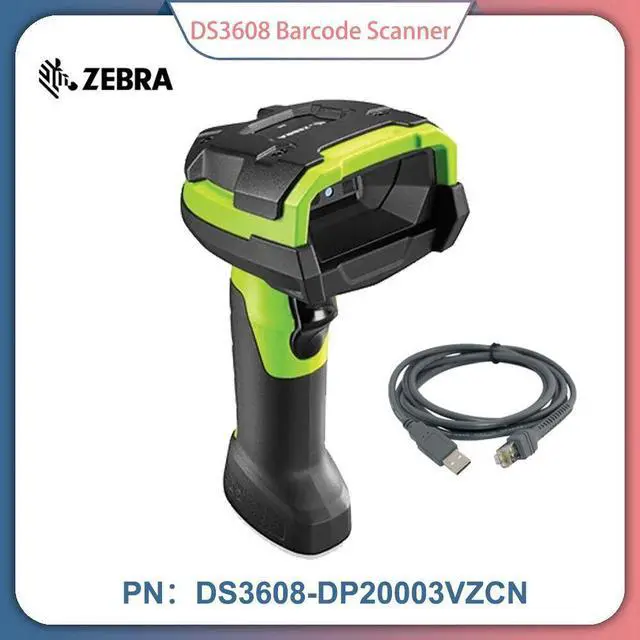

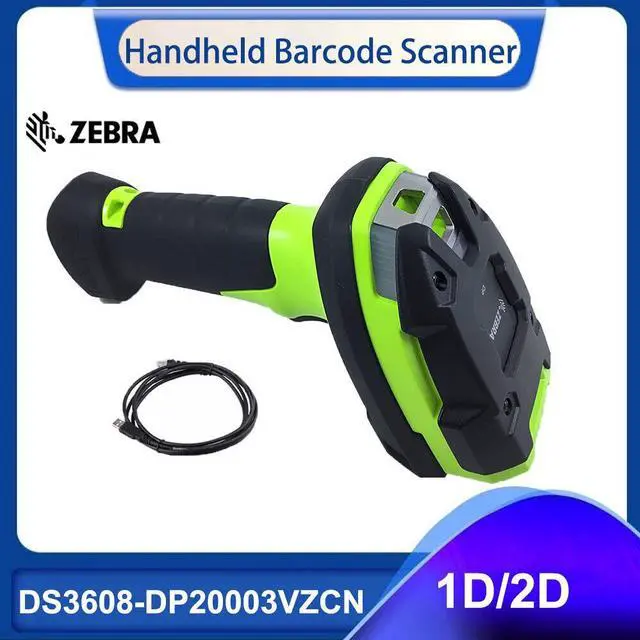

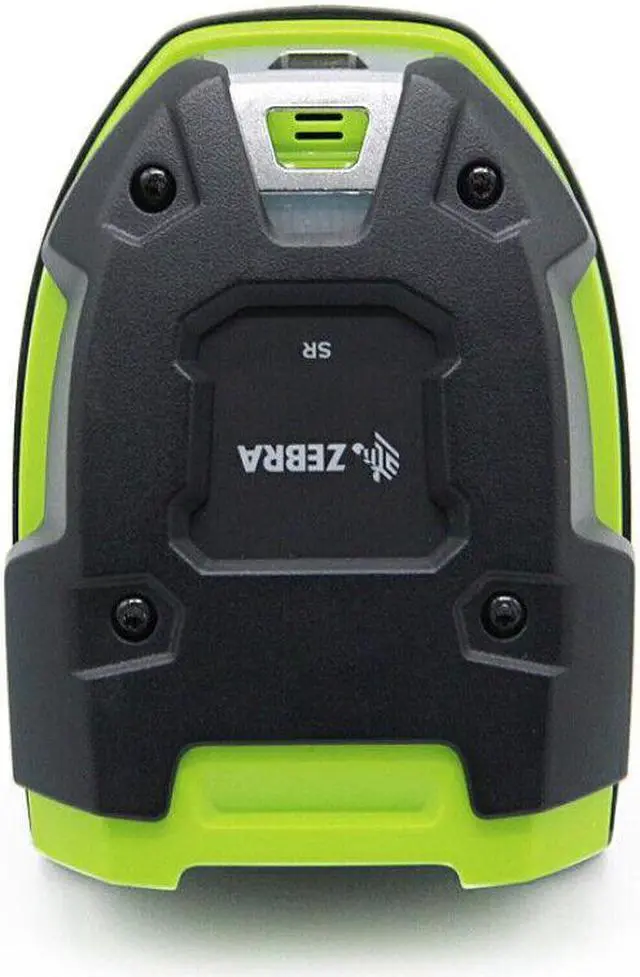

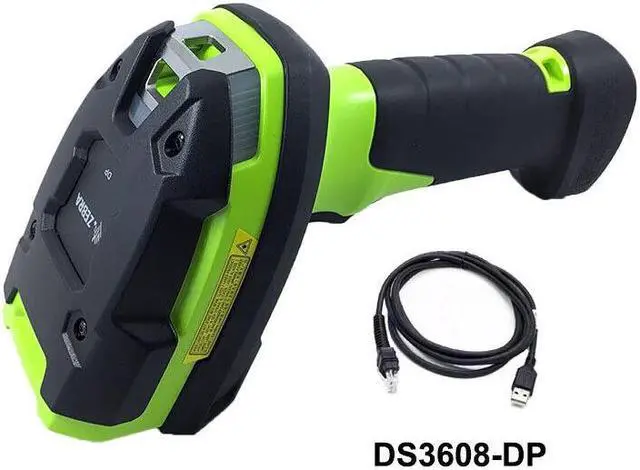

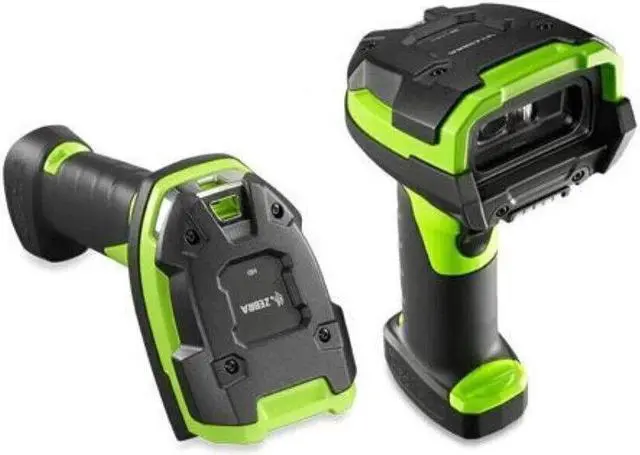

Zebra DS3608-DP20003VZCN 1D/2D Ultra-Rugged Barcode Reader Handheld Scanner

Description:

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, Zebra DS3608-DP corded scanners are ready for the world's toughest environments in the warehouse and manufacturing floor. Advanced scanning delivers lightning-fast capture of Direct Part Marks (DPM), plus any 1D or 2D barcode printed on a label in virtually any condition, DS3608-DP is loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity.

The ultra-rugged design is practically indestructible-ideal for punishing environments. The DS3608-DP couldn't be easier and less time-consuming to deploy and manage. The DS3608-DP--the unstoppable performance you need to maximize workforce productivity and throughput in your operations.



Features:

Superior scanning performance on DPM and standard 1D/2D barcode, in any condition------Comprehensive patented features enable the capture of literally every type of direct part mark (DPM) and printed 1D/2D barcode. DPM codes can be captured, regardless of size, surface, contrast or density---including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray.

Ultra-Rugged ------the most indestructible design in its class------The DS3608-DP is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-DP is built to survive an 8 ft. / 2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.

Extreme Temperature Rating------Built to handle extreme cold, heat and more, you can use the DS3608-DP anywhere? even in the freezer.

Advanced Illumination System------Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface---including reflective, irregular and curves as well as low and high contrast marks. The built-in diffuser provides the indirect light required to capture marks printed on very shinny and reflective surfaces. The proprietary design of the diffuser also directs additional lighting to the edges of barcodes marked on a curved surface, enhancing the image for easier decoding. Finally, a glancing direct light mode provides the bright light required to successfully read low contrast barcodes marked on any type of surface, including challenging polished materials.

Specifications

:

Brand: Zebra

Model: DS3608-DP

Color: Industrial Green

Supported Host Interfaces: USB, RS232, Keyboard Wedge

Operating Temp: -22F to 122F / -30C to 50C

Humidity: 5% to 95% condensing

Drop Spec: Withstands multiple 8 ft. / 2.4 m drops to concrete

Tumble Specification: 5000 tumbles at 3.3 ft (1m)

Sealing: IP65 and IP67

Skew/Pitch/Roll: 60/60/360

Decode Capability: Direct Part Marks (DPM), 1D (Code 39, Code 128, Code 93, UPC/EAN, GS1 DataBar) and 2D (PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, QR Code, Micro QR, Postal Codes)

Dimensions: 7.3 in. H x 3 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D

Weight: 10.72 oz. /304 g



Package Includes:

1X Barcode Scanner

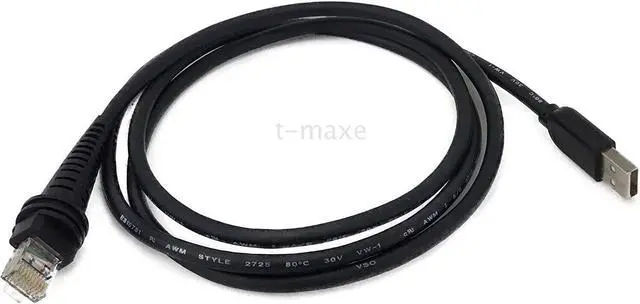

1X USB Cable

1X manual
