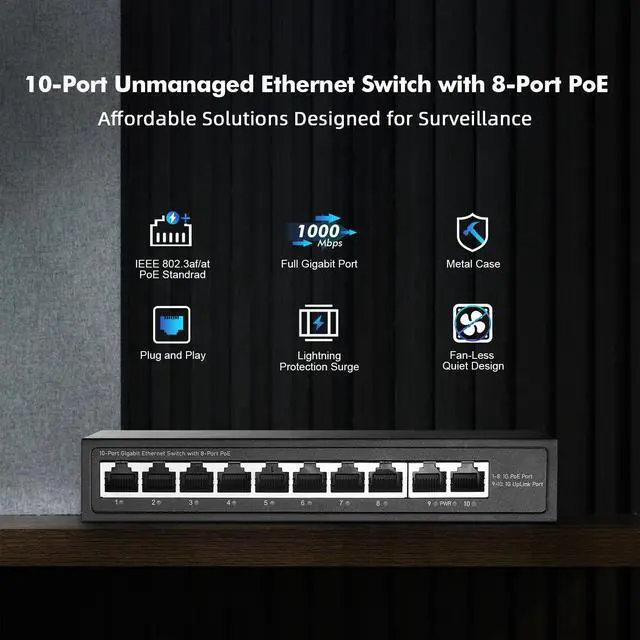

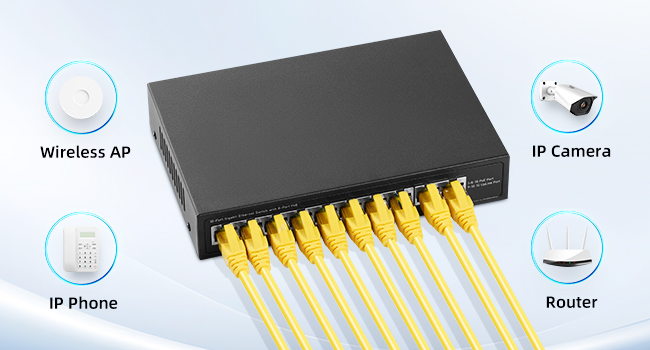

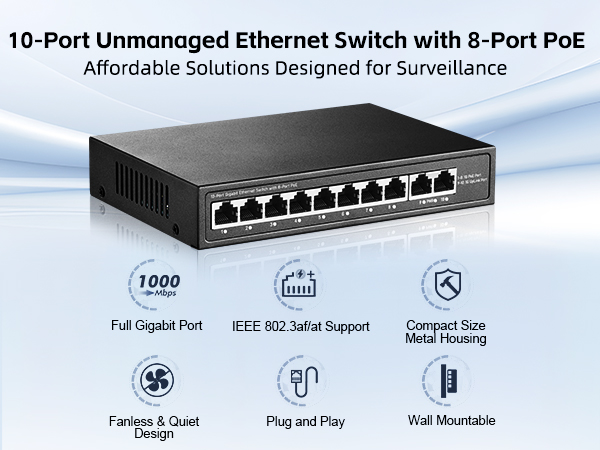

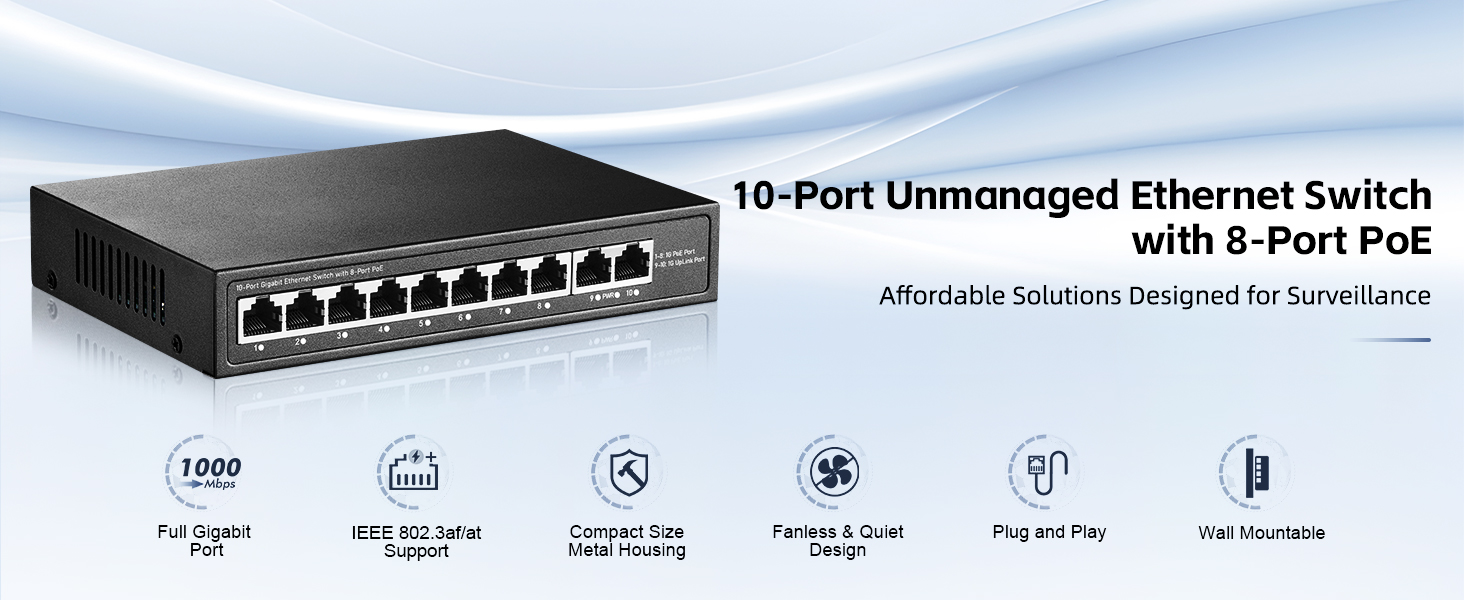

G1002G is an 10 ports ethernet switch with 8 ports PoE, The PoE ports fully complies with IEEE 802.3af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.

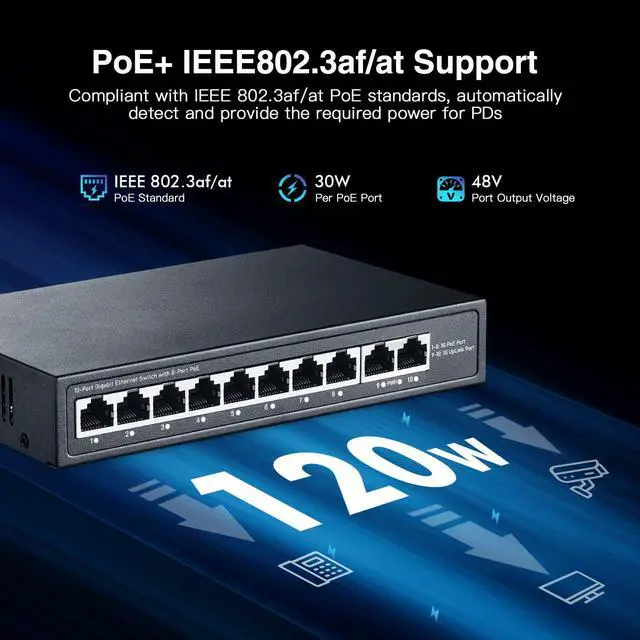

Smart PoE+
With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.

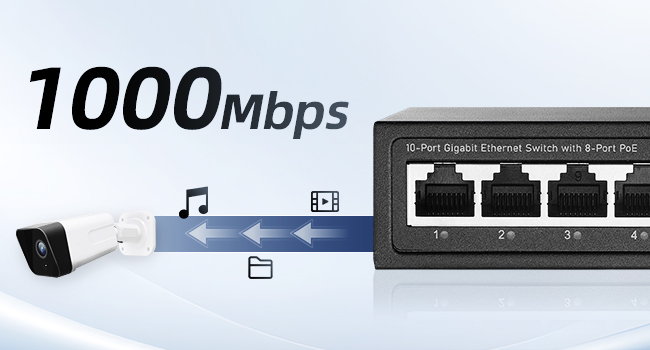

Full Gigabit Ports
Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.

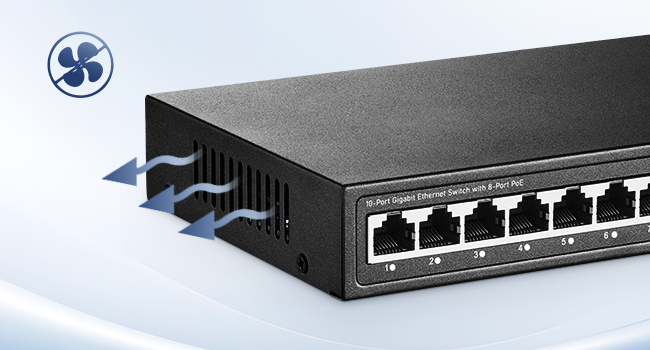

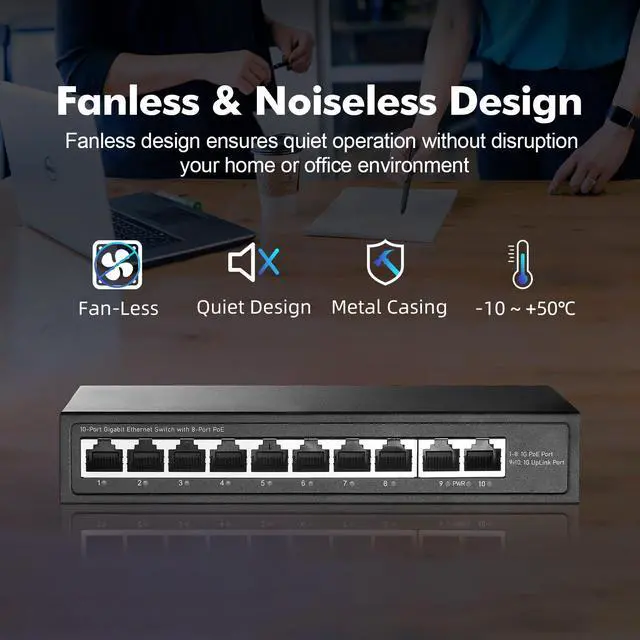

Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.
Plug and Play
The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.

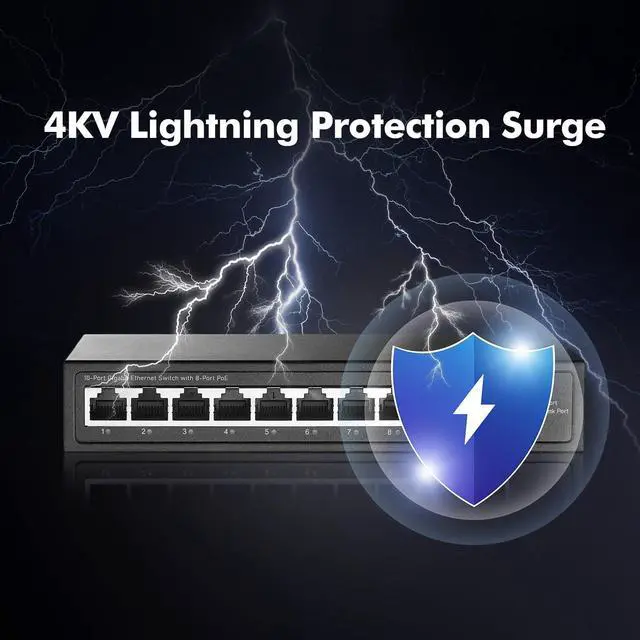

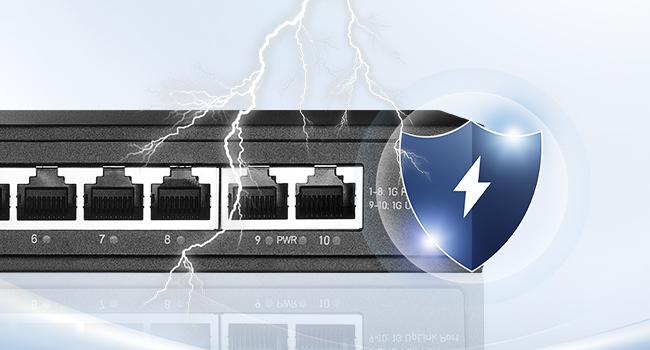

Lighting Protection
The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

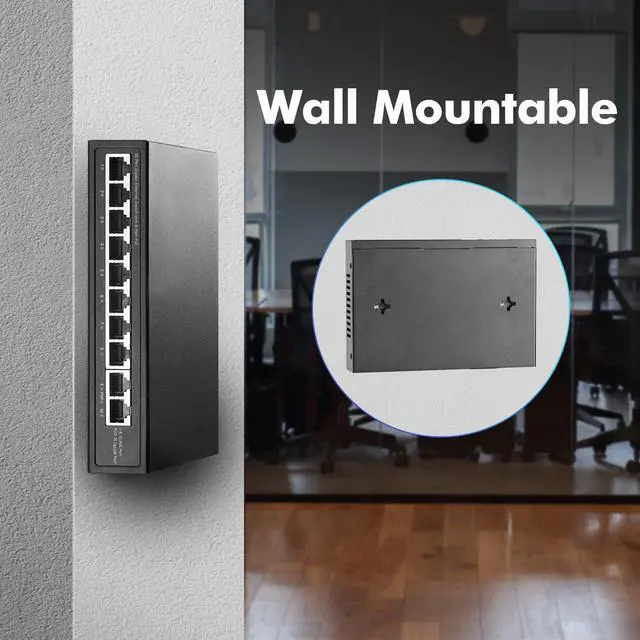

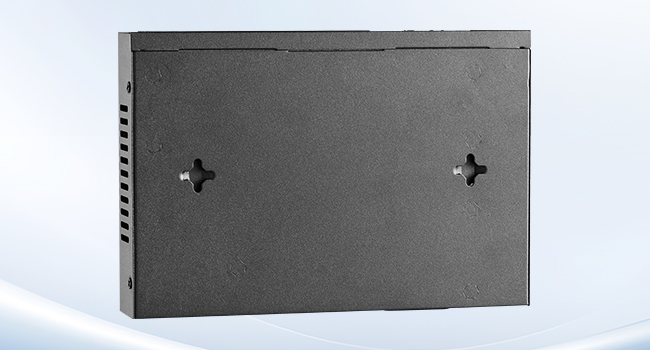

Desktop and Wall Mount
The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.
Product Specifications
G1002G is an 10 ports ethernet switch with 8 ports PoE, The PoE ports fully complies with IEEE 802.3af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.
Smart PoE+
With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.
Full Gigabit Ports
Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.
Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.
Plug and Play
The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.
Lighting Protection
The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Desktop and Wall Mount
The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.
Product Specifications
| Model | G1002G |
|---|---|

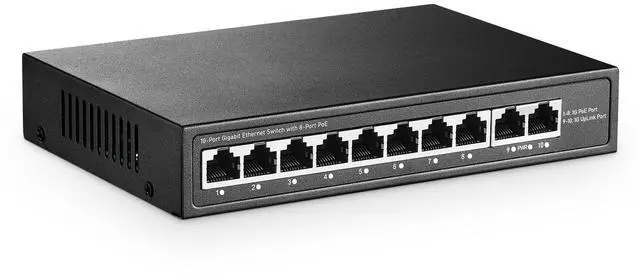

| Product Name | 10-Port Gigabit Ethernet Switch with 8-Port PoE |

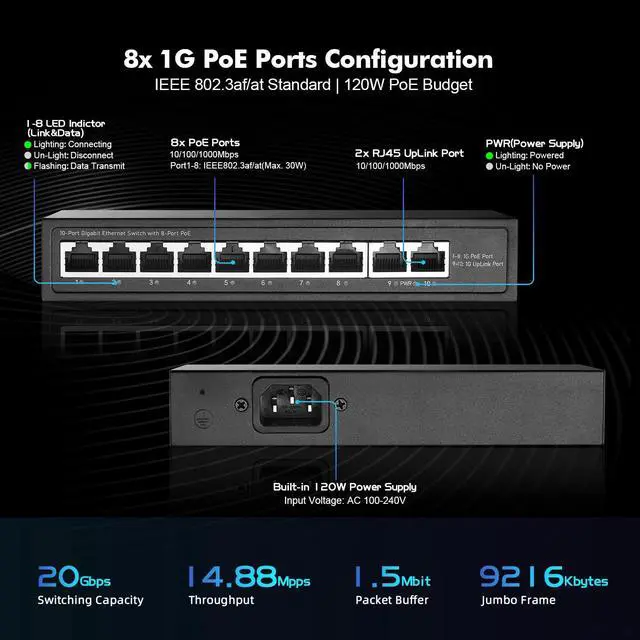

| Ethernet | 8* Gigabit PoE Ethernet Ports + 2* Gigabit Uplink Ethernet Port |
| Bandwidth | 20Gbps |
| Pack forward rate | 14.88Mpps |
| Memory cache | 448K |
| MAC address | 2K |
| Jumbo Frame | 2048bytes |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP(=100m), 100Base-TX : Cat5 or above UTP(=100m), 1000Base-TX : Cat5 or above UTP(=100m) |
| Working Environment | Working Temperature: -10~50°C, Storage Temperature: -40~70°C, Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
| Indicator | PWR (Power), 1-10 Green Light (Link&Data) |
| Structure Size | Product size: 180*120*32mm, Product weight: 0.71KG |

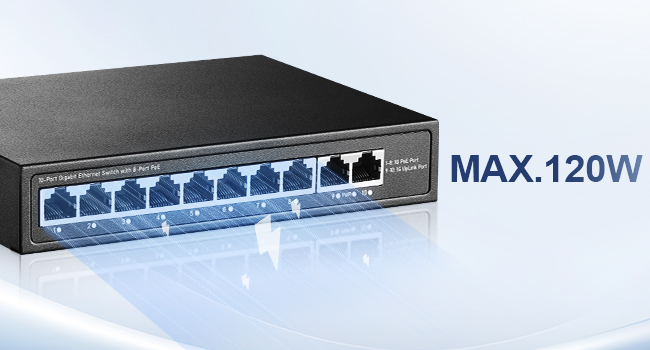

| Power Voltage | Input voltage :AC100-240V, Power supply: 52V/2.3A (120W) |
