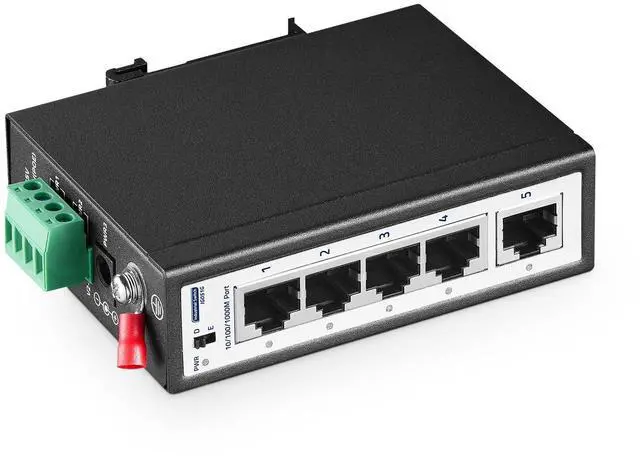

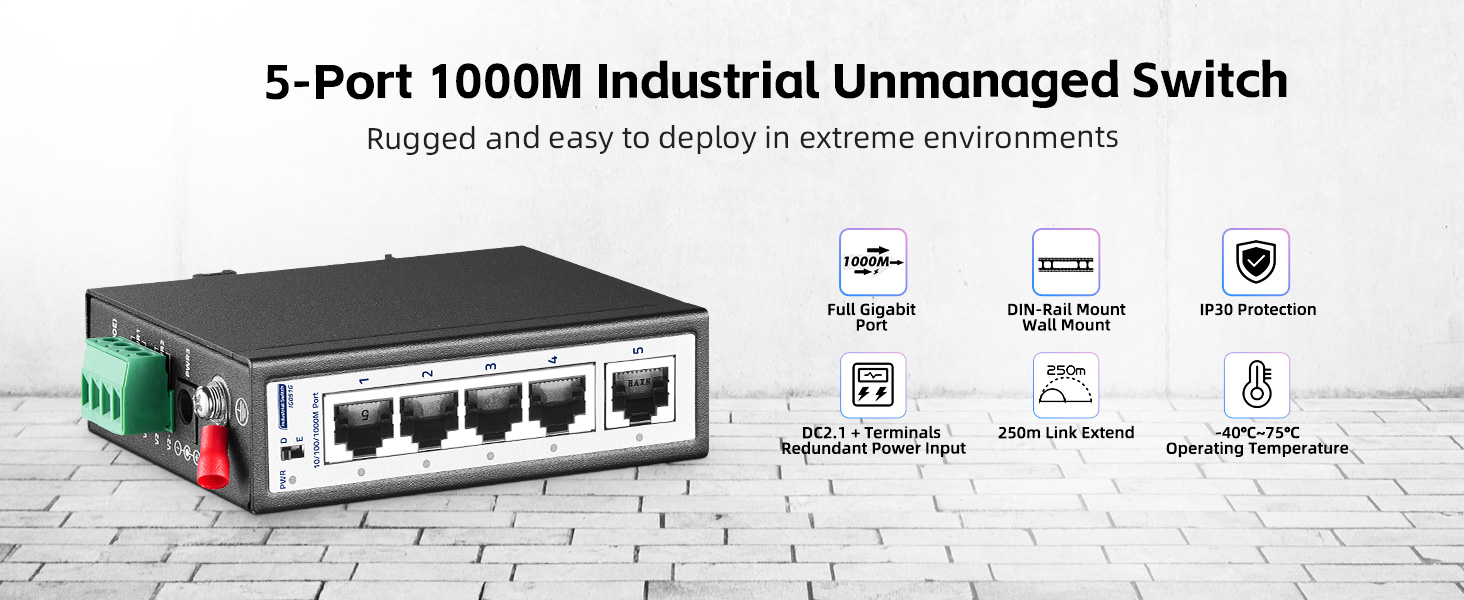

IG051G is a reliable IP30 unmanaged DIN-rail gigabit switch with hardened components rated for extreme industrial environments. It offers 5x10/100/1000Mbps RJ45, Support extned model. Redundant power inputs - 4 PIN Industrial terminal + 1 DC 2.1(power adapter sold separately)
High Performance Connection

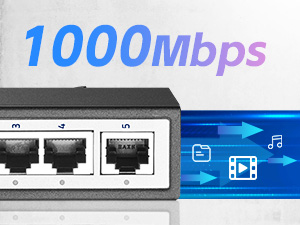

Designed with 5x1000M ports with 10Gbps switching capacity. It allows connecting devices at different bandwidths, offering flexible solutions.
IP30 Housing
Hardened grade rugged IP30 housing, Specially designed for harsh industrial uses,
Unmanaged, Plug and Play
Automatic connectivity to your ethernet devices. No need for an IT expert.
Extreme Temperatures

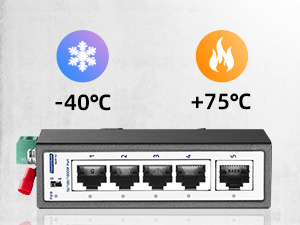

With no moving parts inside to reduce downtime, Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF).
Further Network Connection

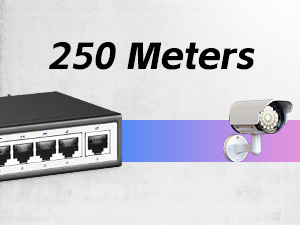

The long-range mode provides power and data delivery distance to 250m at 10Mbps operation on port 1-4. It's ideal for long-distance applications.

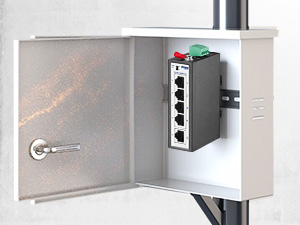

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Redundant Triple DC Power

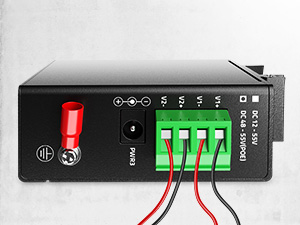

Adopts 4 PIN Industrial terminal and 1 DC 2.1 power inputs for redundancy and achieves high stability for system operation.
Safe Guard Your Devices
Each port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Technical Parameter
IG051G is a reliable IP30 unmanaged DIN-rail gigabit switch with hardened components rated for extreme industrial environments. It offers 5x10/100/1000Mbps RJ45, Support extned model. Redundant power inputs - 4 PIN Industrial terminal + 1 DC 2.1(power adapter sold separately)
High Performance Connection
Designed with 5x1000M ports with 10Gbps switching capacity. It allows connecting devices at different bandwidths, offering flexible solutions.
IP30 Housing
Hardened grade rugged IP30 housing, Specially designed for harsh industrial uses,

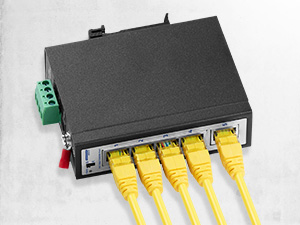

Unmanaged, Plug and Play
Automatic connectivity to your ethernet devices. No need for an IT expert.

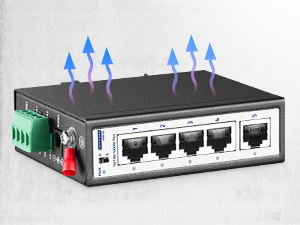

Extreme Temperatures
With no moving parts inside to reduce downtime, Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF).
Further Network Connection
The long-range mode provides power and data delivery distance to 250m at 10Mbps operation on port 1-4. It's ideal for long-distance applications.

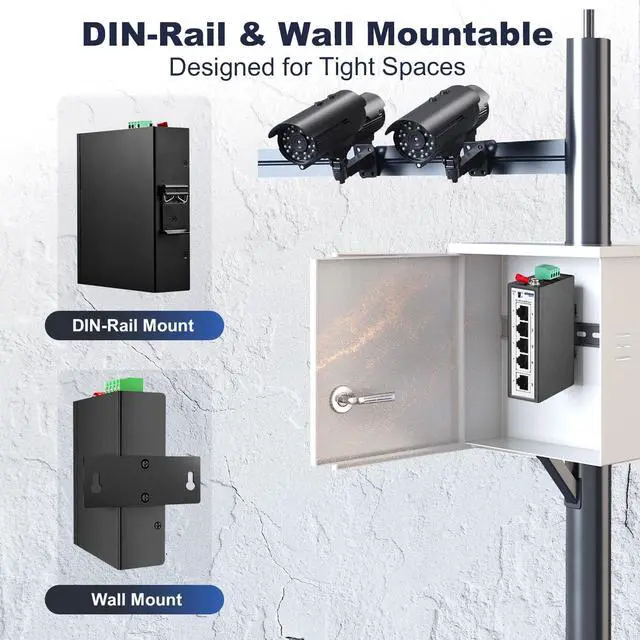

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware

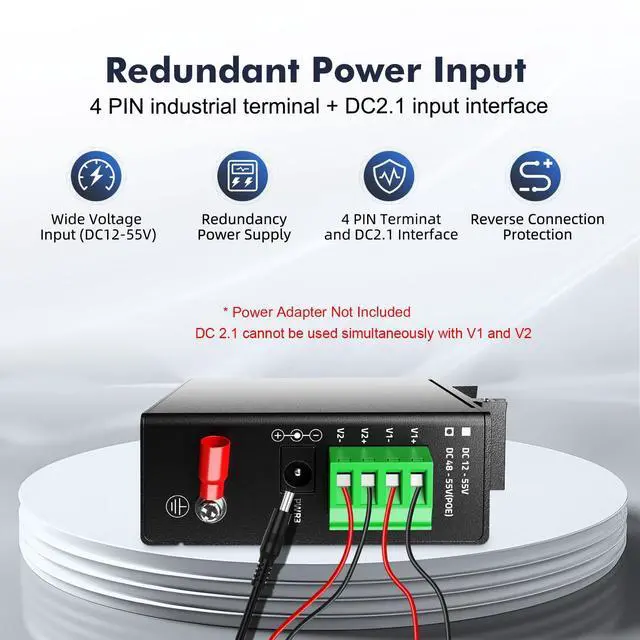

Redundant Triple DC Power
Adopts 4 PIN Industrial terminal and 1 DC 2.1 power inputs for redundancy and achieves high stability for system operation.
Safe Guard Your Devices
Each port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Technical Parameter
| Model | IG051G |
|---|---|
| Ethernet | 4* 10/100/1000M Ethernet Ports,+ 1* 10/100/1000M Ethernet Port |
| Bandwidth | 10 Gbps |
| Pack forward rat | 7.44 Mpps |
| MAC address | 2K |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) IEEE802.3ab (Gigabit Ethernet) |
| Network medium | 10Base-T : Cat 3, 4, 5 or above UTP/STP(=100m) 100Base-TX : Cat 5 or above UTP/STP(=100m), 1000Base-TX : Cat5 or above UTP(=100m) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Working environment | Working Temperature: -40~75°C Storage Temperature: -40~85°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feet |
| Indicator | PWR Green LED On: Powered on, Off: Powered off; Ports 1-5 Green LED On: 10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting |

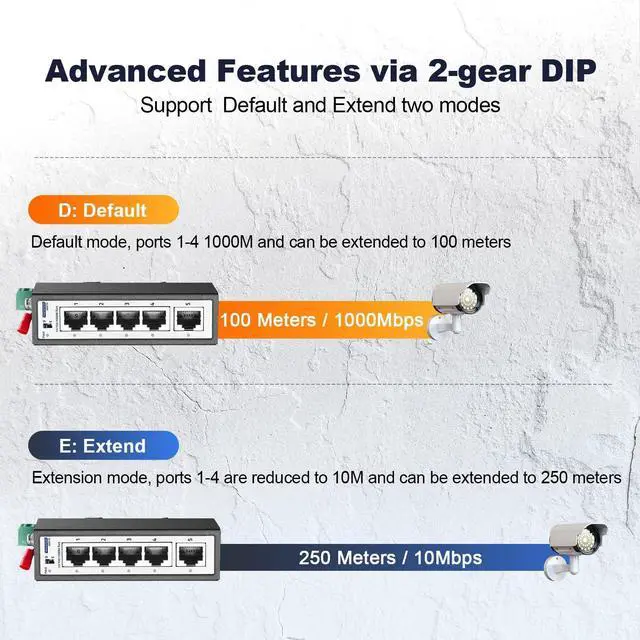

| DIP function | D: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive E: Extend mode, ports 1-4 force 10Mbps to extend the transmission distance to 250meters |

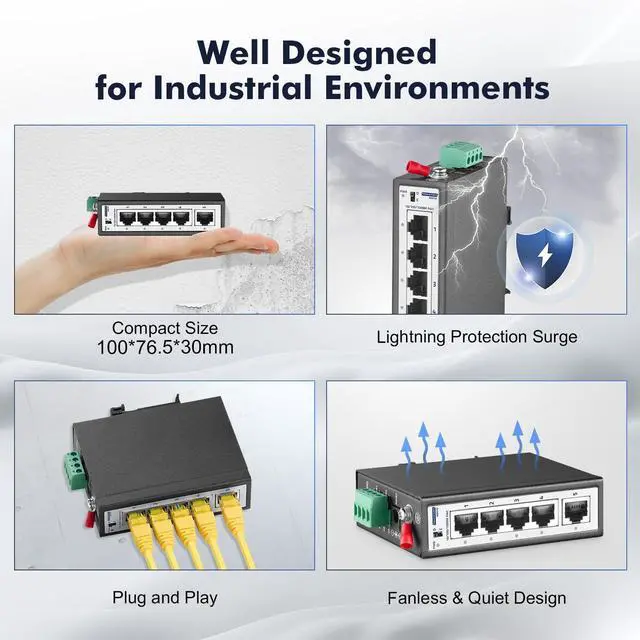

| Structure size | Product Dimensions: 100*76.5*30mm, Packaging Dimensions: 175*130*55mm, Product Net Weight: 0.21KG, Product Gross Weight: 0.31KG |
| Power voltage | DC12~55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) , DC-IN 2.1MM (DC 2.1 cannot be used simultaneously with V1 and V2) |
| Packaging list | Switch 1pcs, Manual 1pcs |
