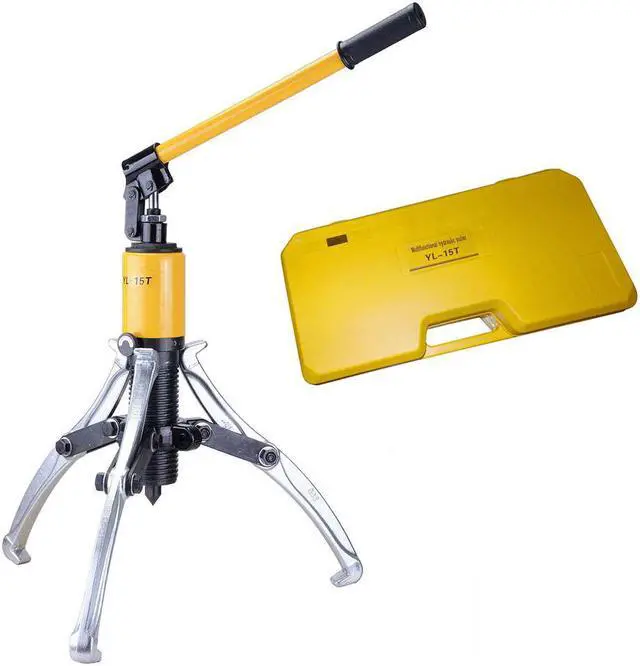

3-Jaw Hydraulic Gear Puller Set 15 Ton Wheel Bearing Pulling Separator w/Case

Features:

- Great Compatibility - 3-Jaw hydraulic gear puller set features 15 tons max capacity, 2 (50mm) axis travel, 11 13/16 (300mm) max spread and 7 1/16 (180mm) max reach for fully meeting your different requirements on pulling truck hub, brake drums, sprockets, rotors, car axles, wheel bearing, shaft and pulley disassembly

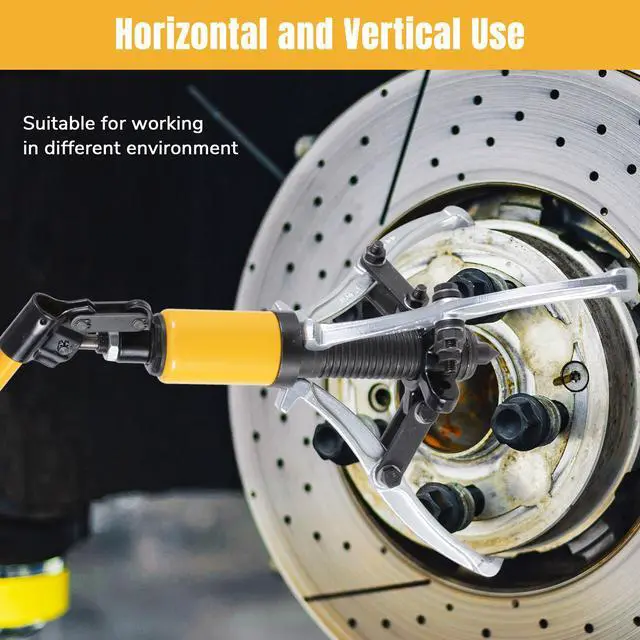

- 3 In 1 Design - Puller set integrates pump, oil tube and drawing machine for providing comprehensive functions on mechanical installation and repair, can be used horizontally and vertically, not restricted by work site environment

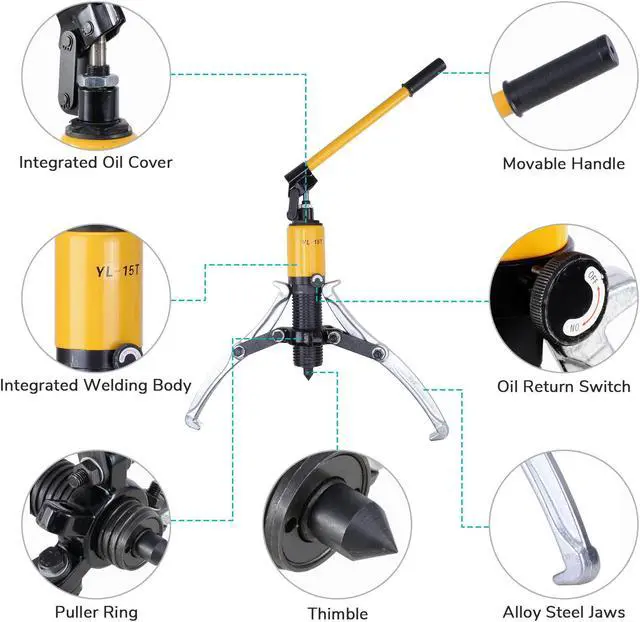

- Flexible & Easy Operation - 3 jaws can be adjusted from high to low point and pump head can be rotated 360 degrees for flexibility; 2-way yoke allows 2 or 3 leg pullers for easy interchanging; rotate the oil return switch and pull up the handle to pressurize or release pressure; safety flooding valve to avoid overloading

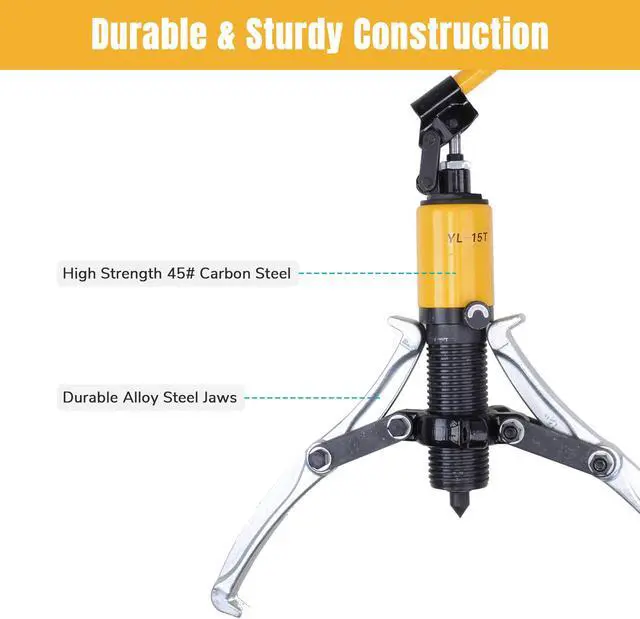

- Durable Steel Construction - Hydraulic pump is made of high strength 45# carbon steel and processed by integrated welding for preventing oil leakage and providing sturdiness, rust resistance and corrosion resistance for frequent use; durable alloy steel jaws for ensuring stability
- Portable & Wide Application - Pump and all accessories can be packed in a mould carrying case well, easy for you to transport or storage; widely used for railway vehicle maintenance, car mechanical factories, mining equipment maintenance, etc

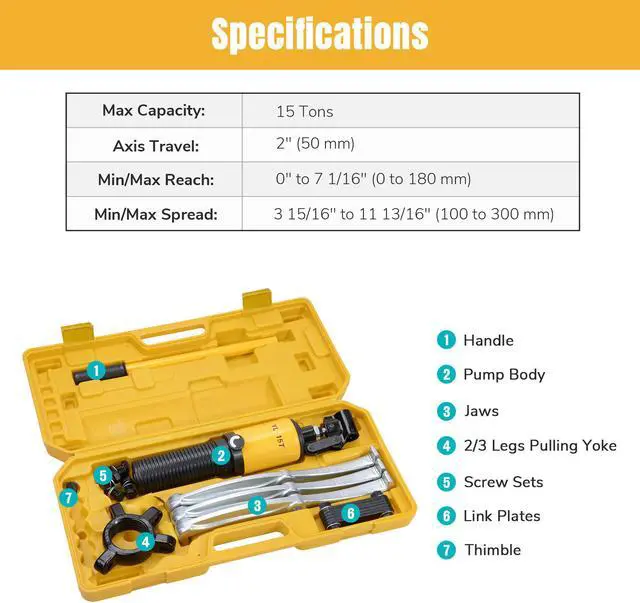

Specifications:

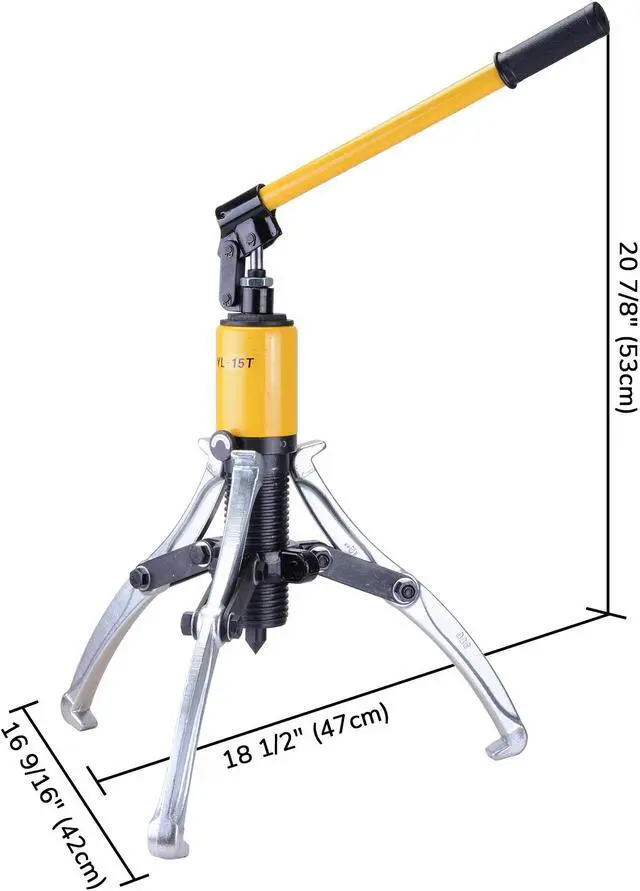

- Overall Dimension(LxWxH): 16 9/16 x 18 1/2 x 20 7/8 (42 x 47 x 53 cm)
- Material: 45# Steel
- Max Capacity: 15 Tons
- Axis Travel: 2 (50 mm)
- Min/Max Reach: 0 to 7 1/16 (0 to 180 mm)
- Min/Max Spread: 3 15/16 to 11 13/16 (100 to 300 mm)
- Net Weight: 22 Lbs (10 kg)

Package Contents:

- 1x Hydraulic Pump
- 1x Handle
- 1x 2/3 Leg Pulling Yoke
- 3x Puller Legs
- 6x Screw Sets
- 6x Link Plates
- 1x Thimble
- 1x Carrying Case
- 1x Manual
