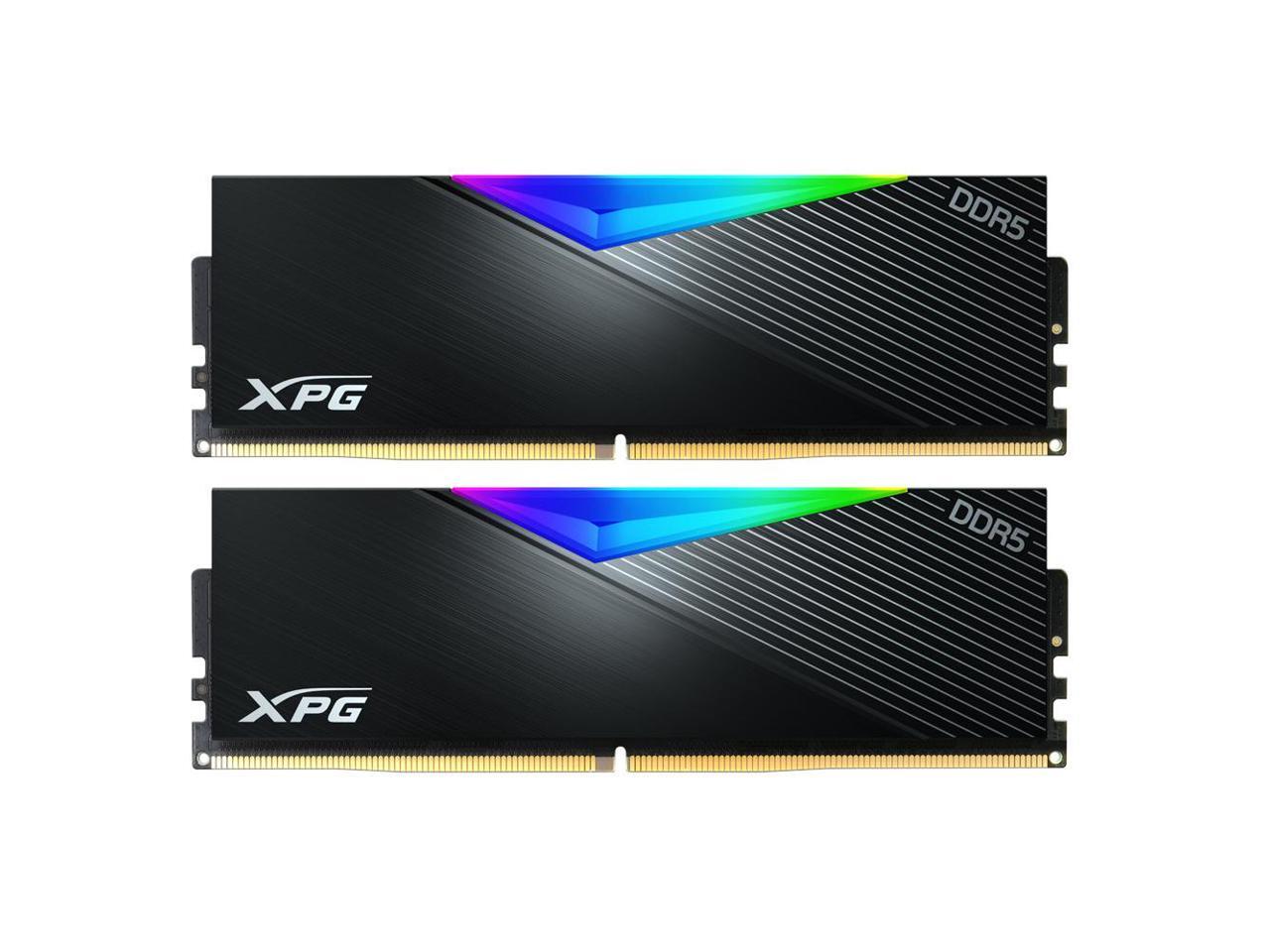

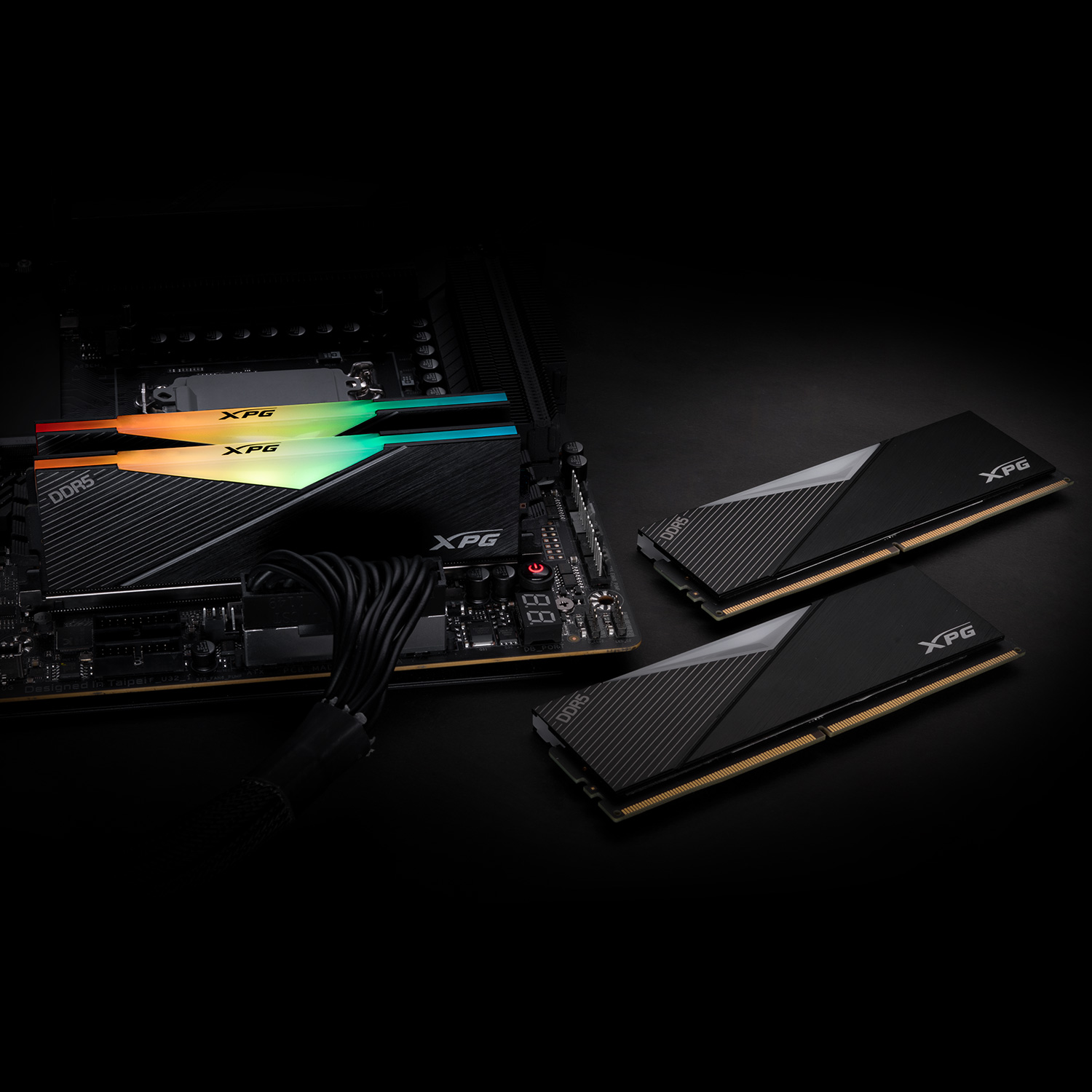

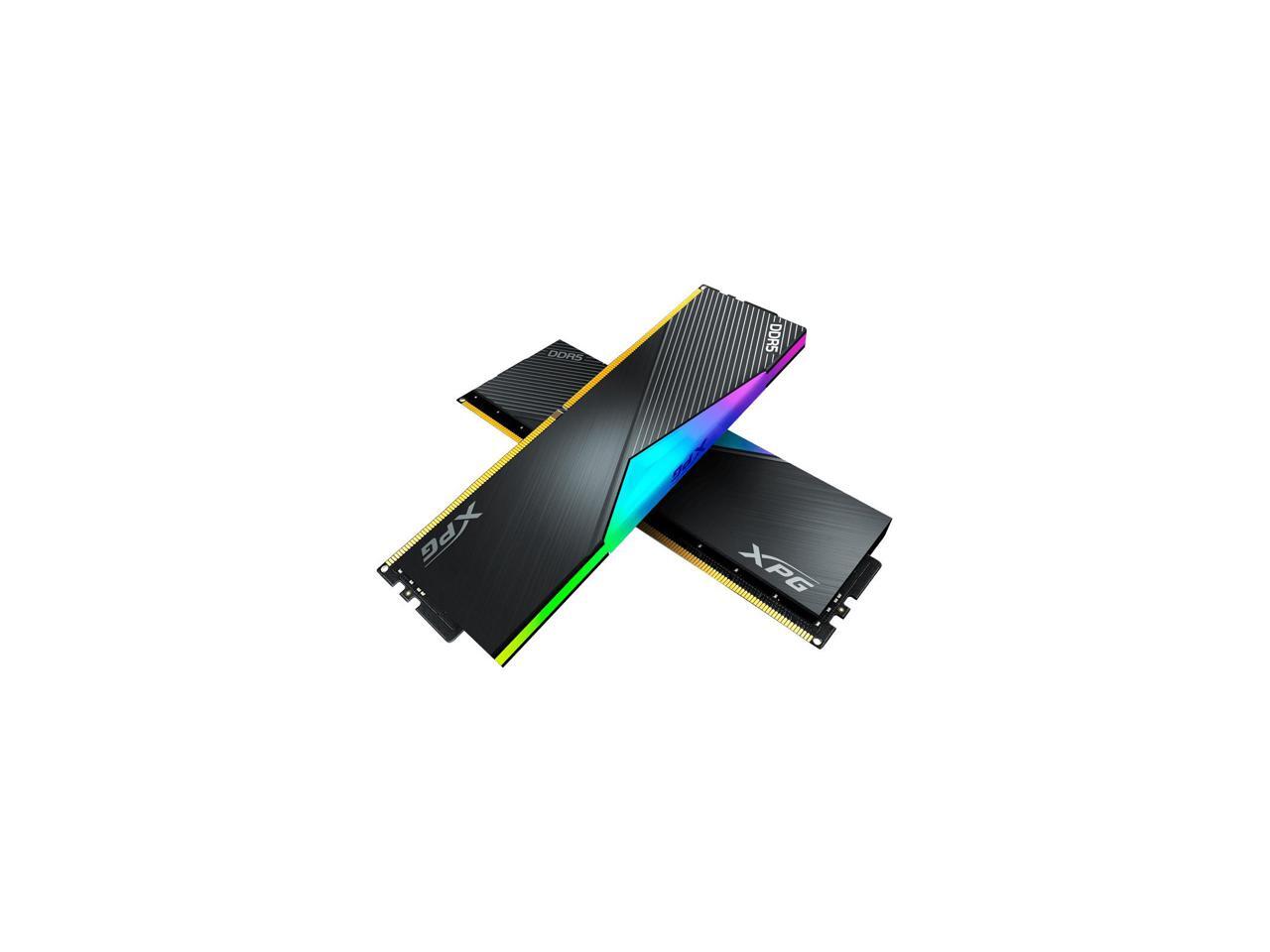

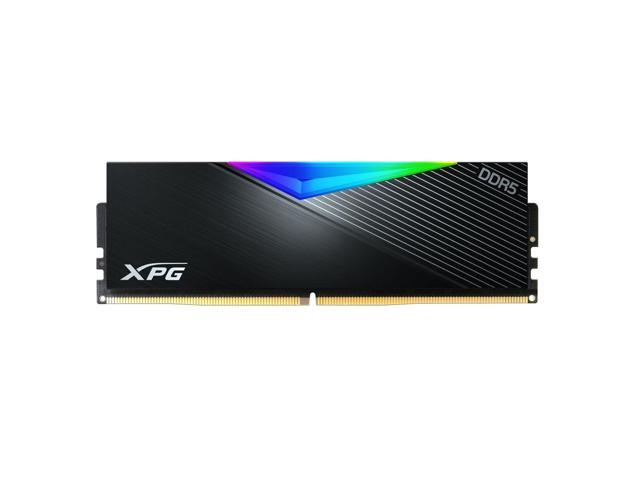

The XPG LANCER ushers in the DDR5 era for gaming memory. Reaching frequencies of up to 6000 MT/s, It will give you a major performance boost for gaming and overclocking.

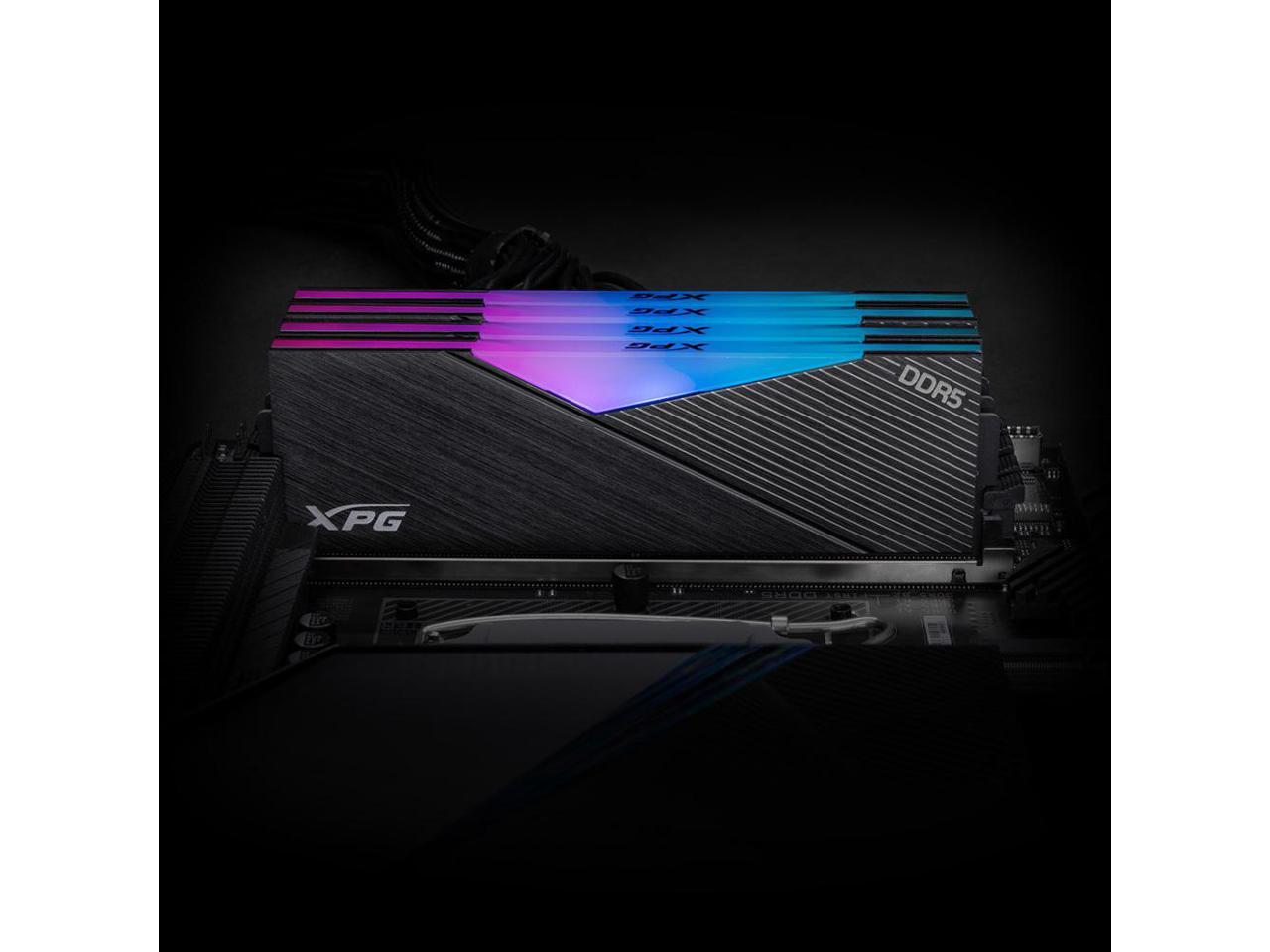

Set the RGB lighting the way you want it. Choose from different effects (static, breathing, and comet) or sync the lights with your favorite jams via Music Mode. All this can be done through RGB control software from all the major motherboard brands.

The XPG LANCER DDR5 features a built-in Power Management IC (PMIC) that enhance power supply stability. It's lower operating voltage also make LANCER more power-efficient than DDR4.

With On-die error correcting code (ECC) this module can correct errors in real-time to provide increased stability and reliability.

High-quality ICs and PCBs ensure uncompromised performance and reliable overclocking, ideal for discerning gamers and overclockers.

With support for Intel XMP 3.0, get overclocking easily without the need to hassle with BIOS settings. There is no need to repeatedly adjust and fine-tune overclocking parameters.

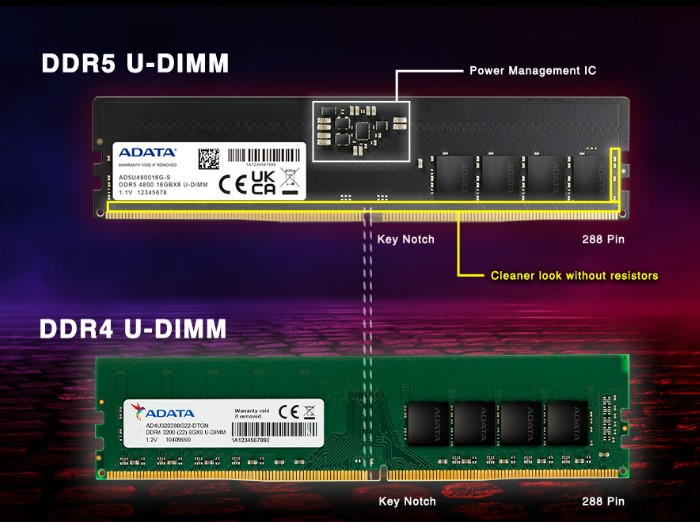

DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

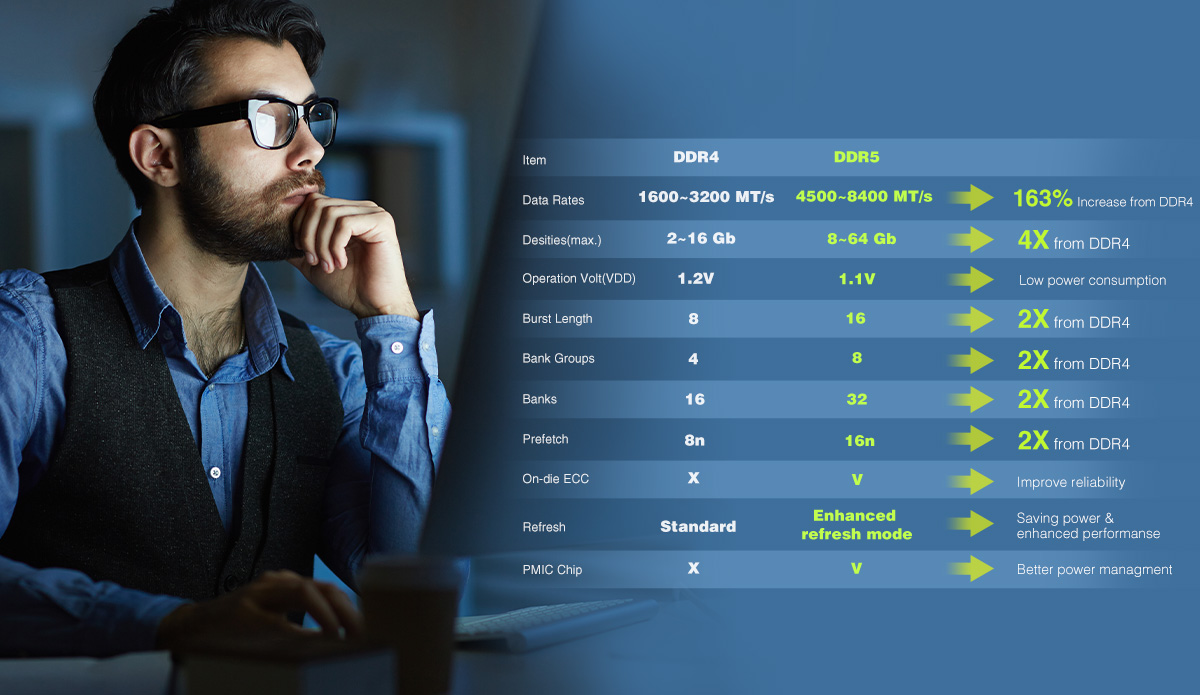

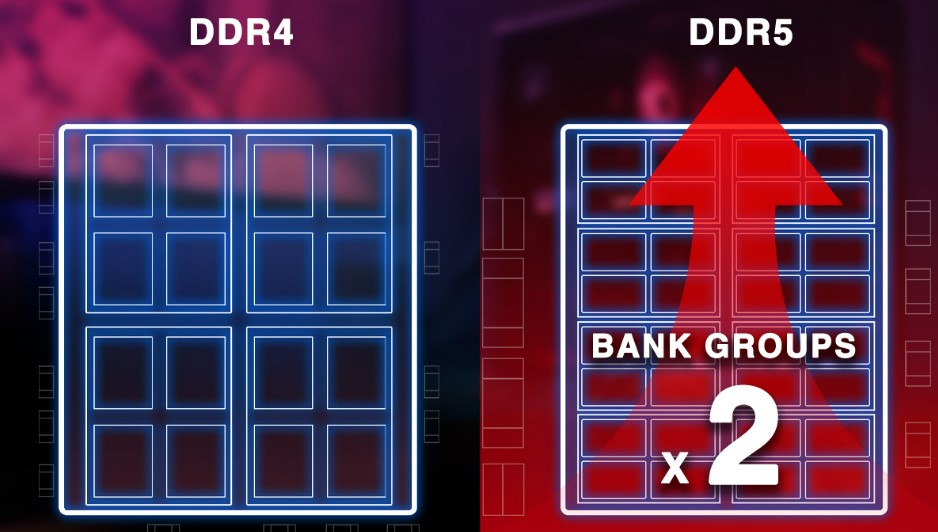

DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length and Prefetch are also doubled. And to ensure data integrity, they feature error correcting code (ECC) technology.

Heat Sink Color | Black / White |
---|---|
Speed | DDR5 5200MHz / DDR5 6000MHz |
Latencies | 38-38-38 / 40-40-40 |
Module Size | 16GB |
Operating Temperature | 0-85 Degrees Celsius |
Storage Temperature | -20-65 Degrees Celsius |
Operating Voltage | 1.25-1.35 Volt |
Dimensions | 133.35 x 40 x 8mm |
Weight | 47g |

Products | ||||
---|---|---|---|---|
Available Configurations | 32GB (2x16GB) / 16GB (2x8GB) | 32GB (2x16GB) / 16GB (2x8GB) | 32GB (2x16GB) | 32GB (2x16GB) |
Available Latencies | 40-40-40 | 40-40-40 | 40-40-40 / 38-38-38 | 40-40-40 / 38-38-38 |
Available Colors | Tungsten Grey | Tungsten Grey | Black / White | Black / White |
Available Speeds | 6000MHz / 6400 MHz | 6000MHz / 6400 MHz | 6000MHz / 5200MHz | 6000MHz / 5200MHz |
Features RGB | NO | NO |
