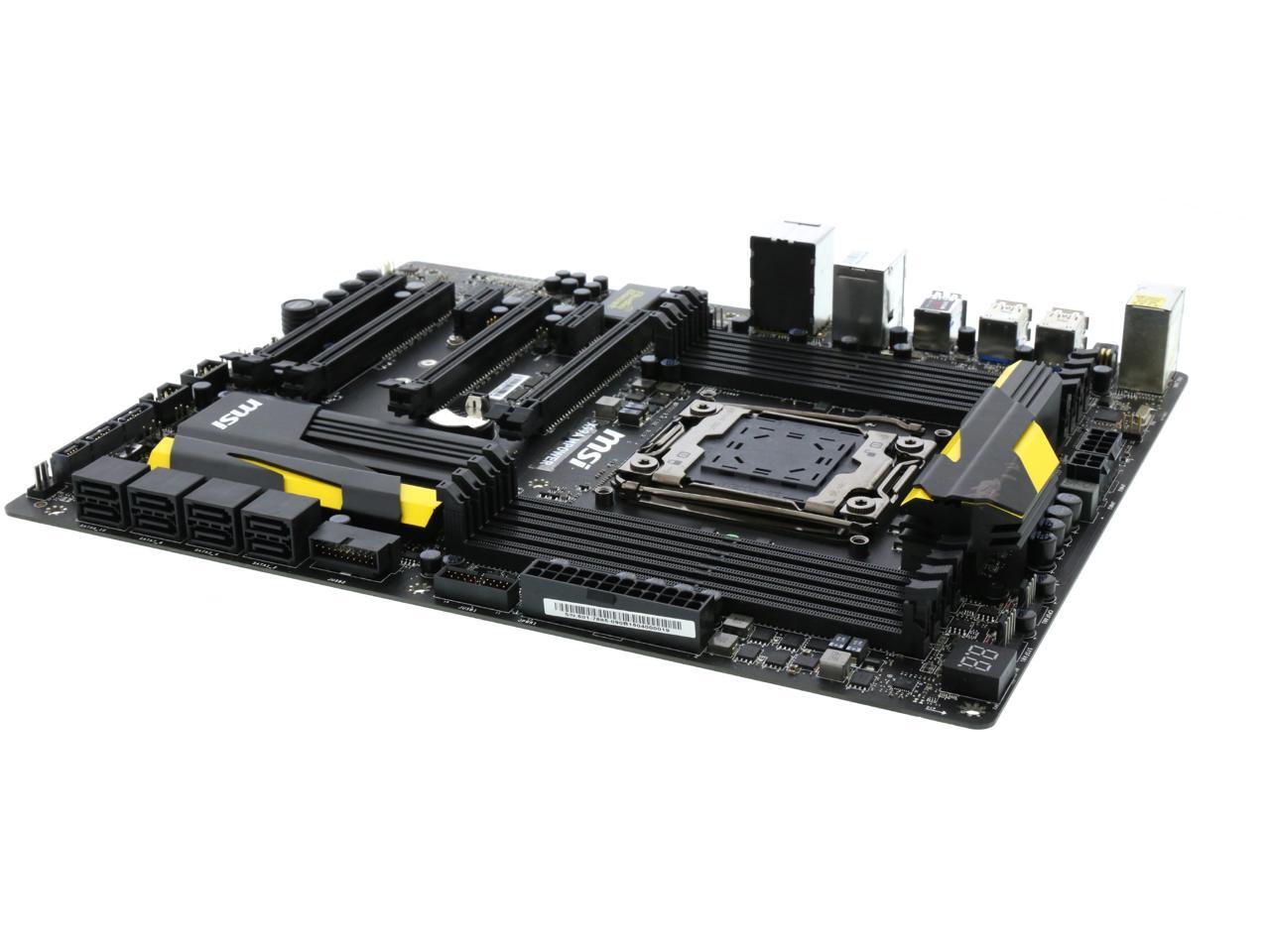

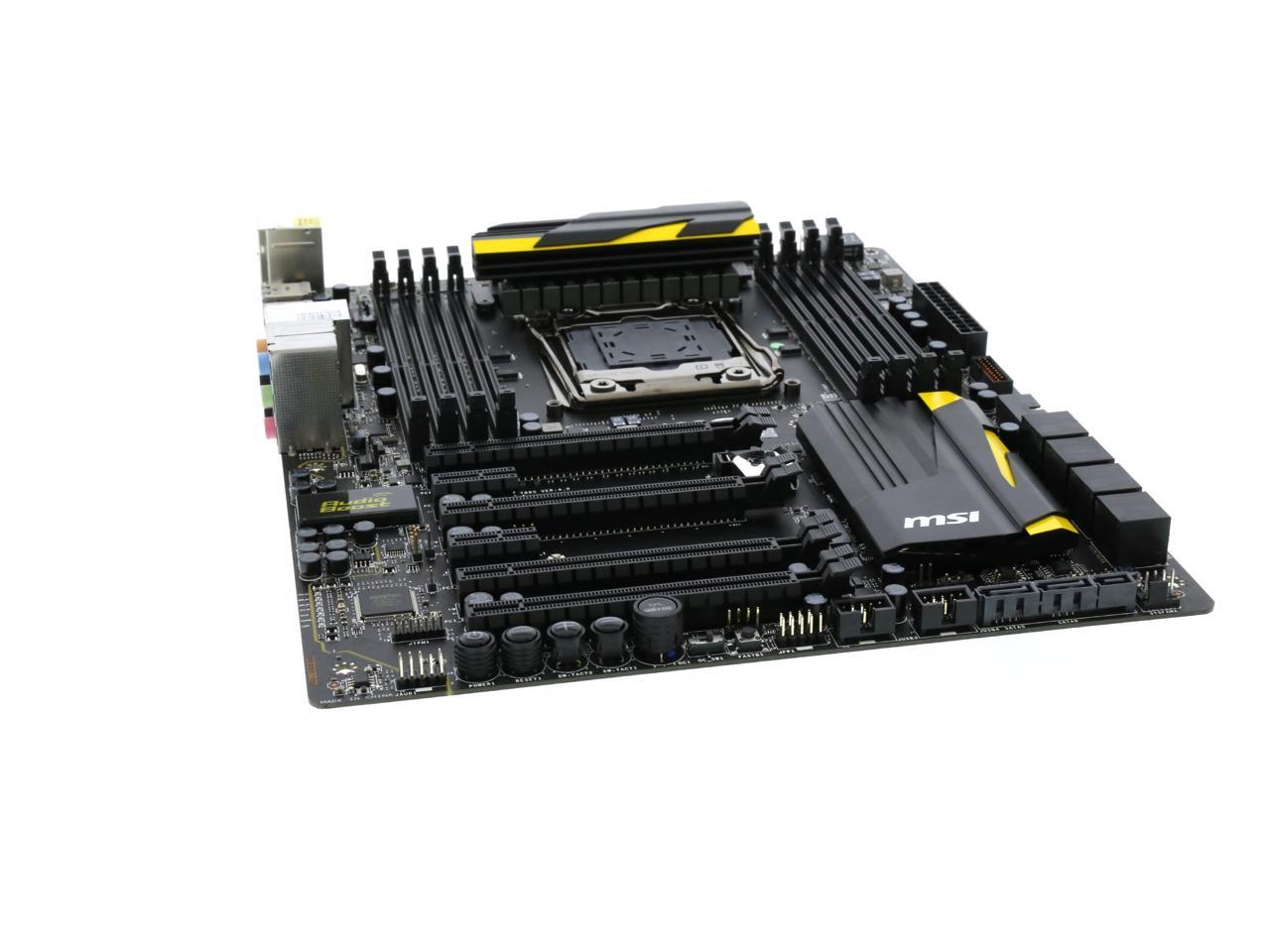

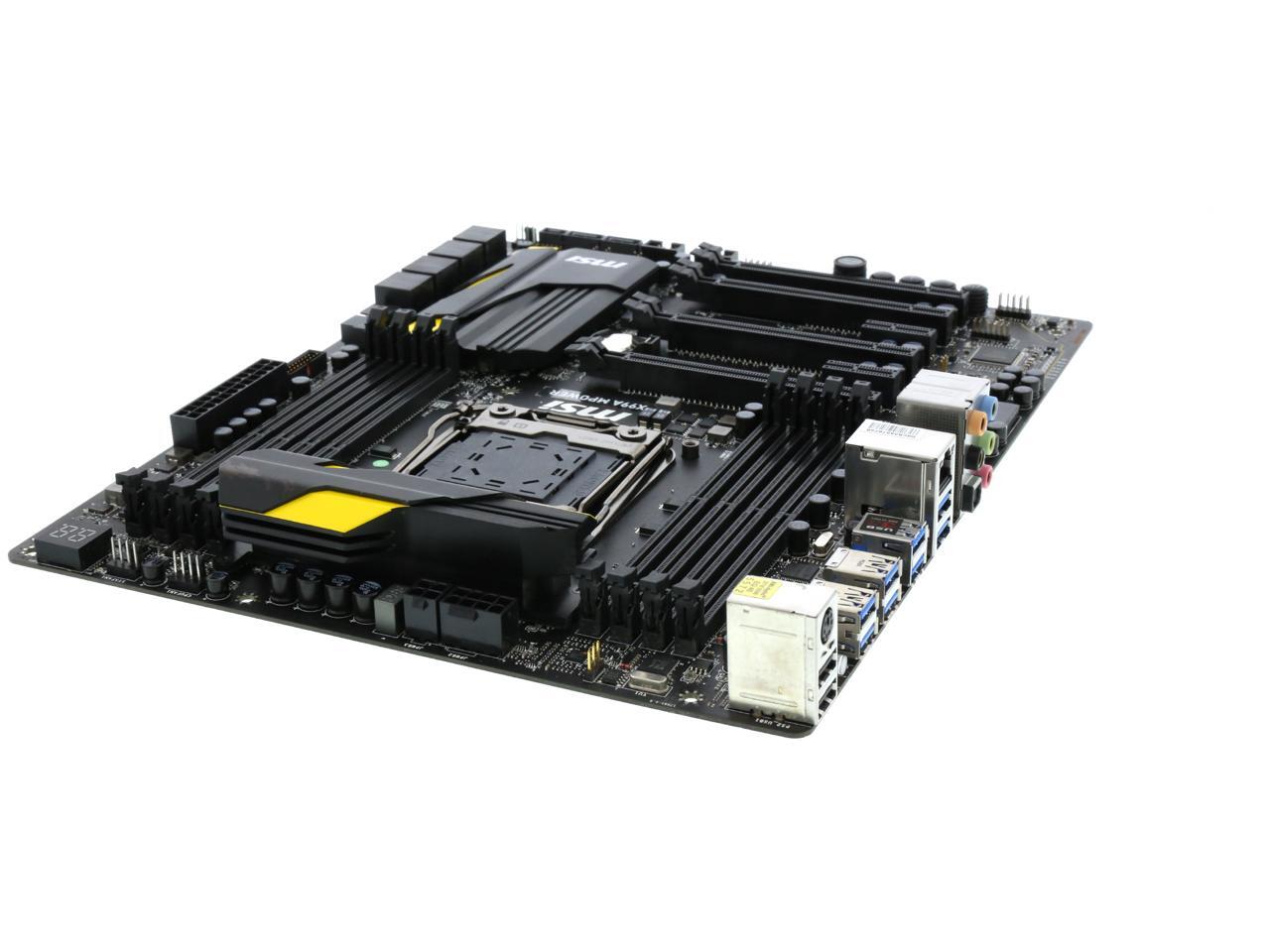

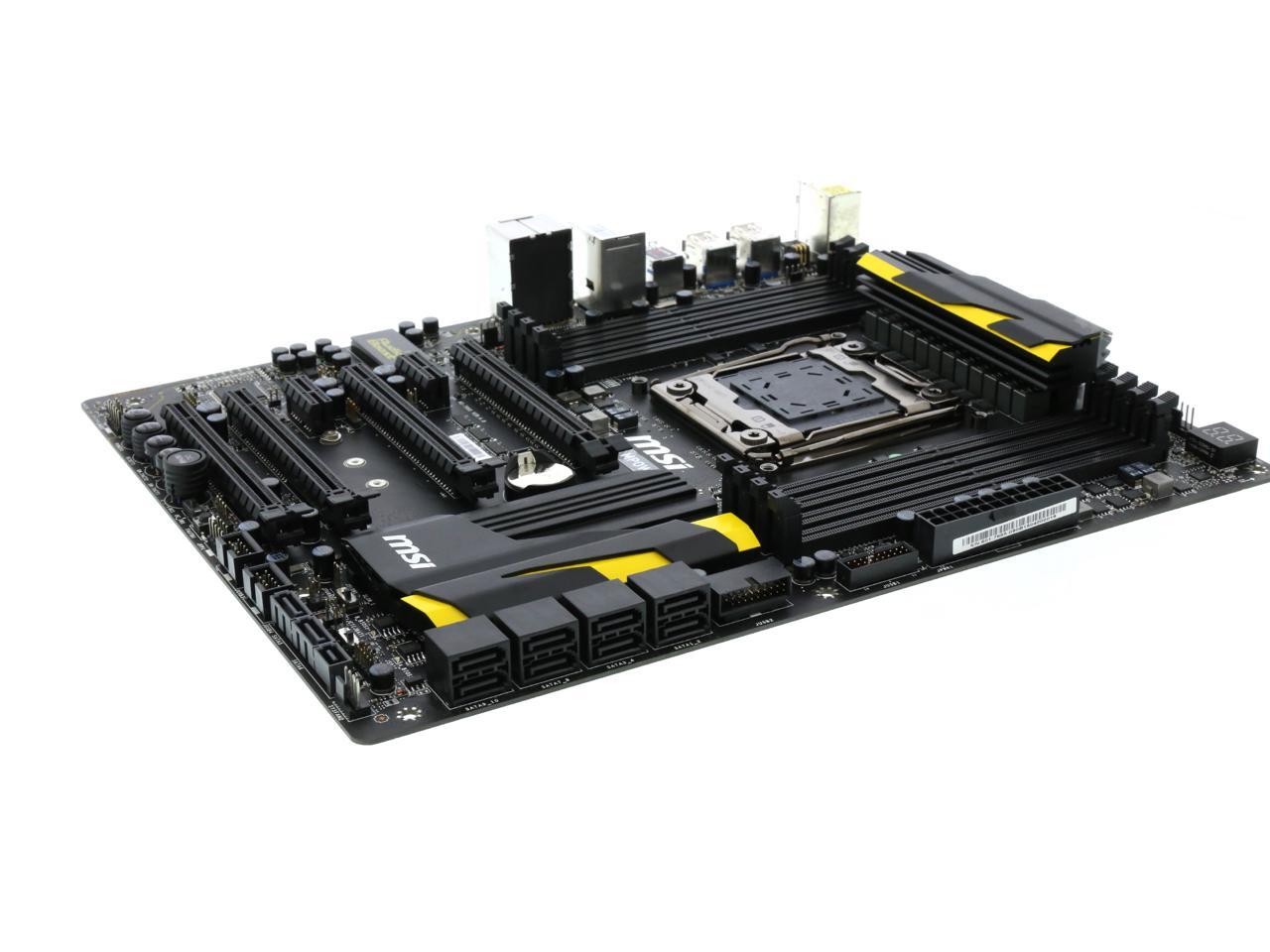

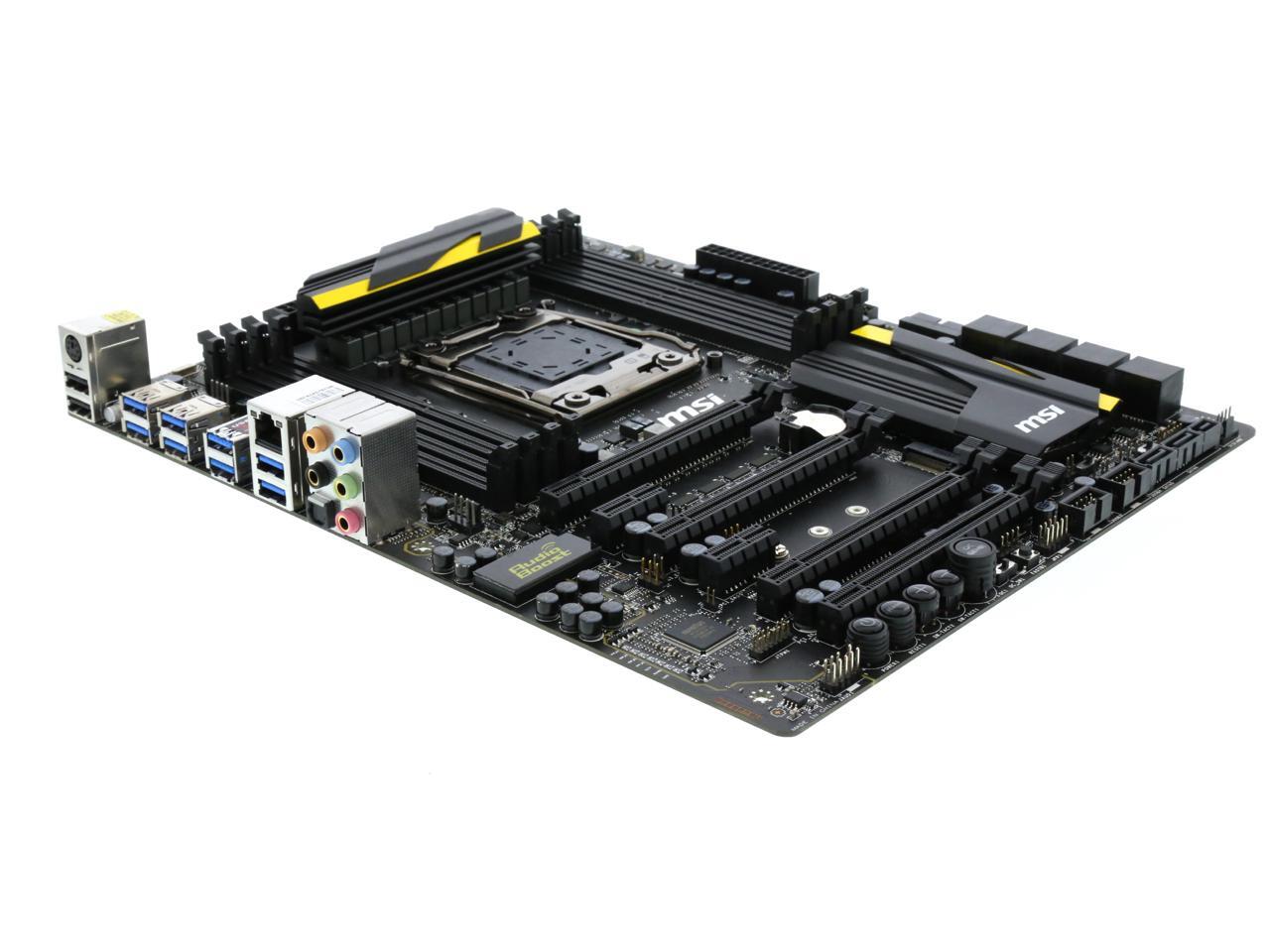

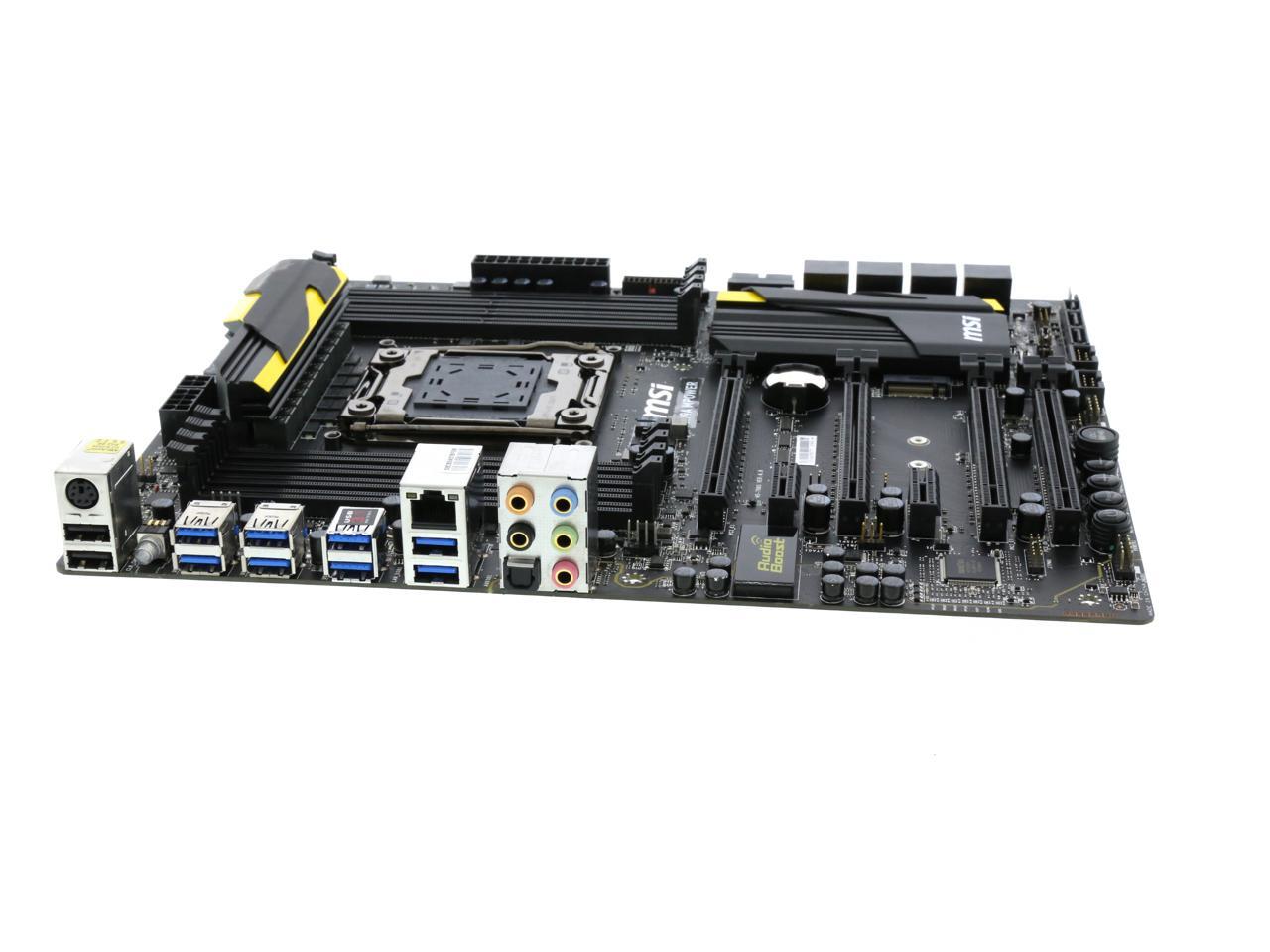

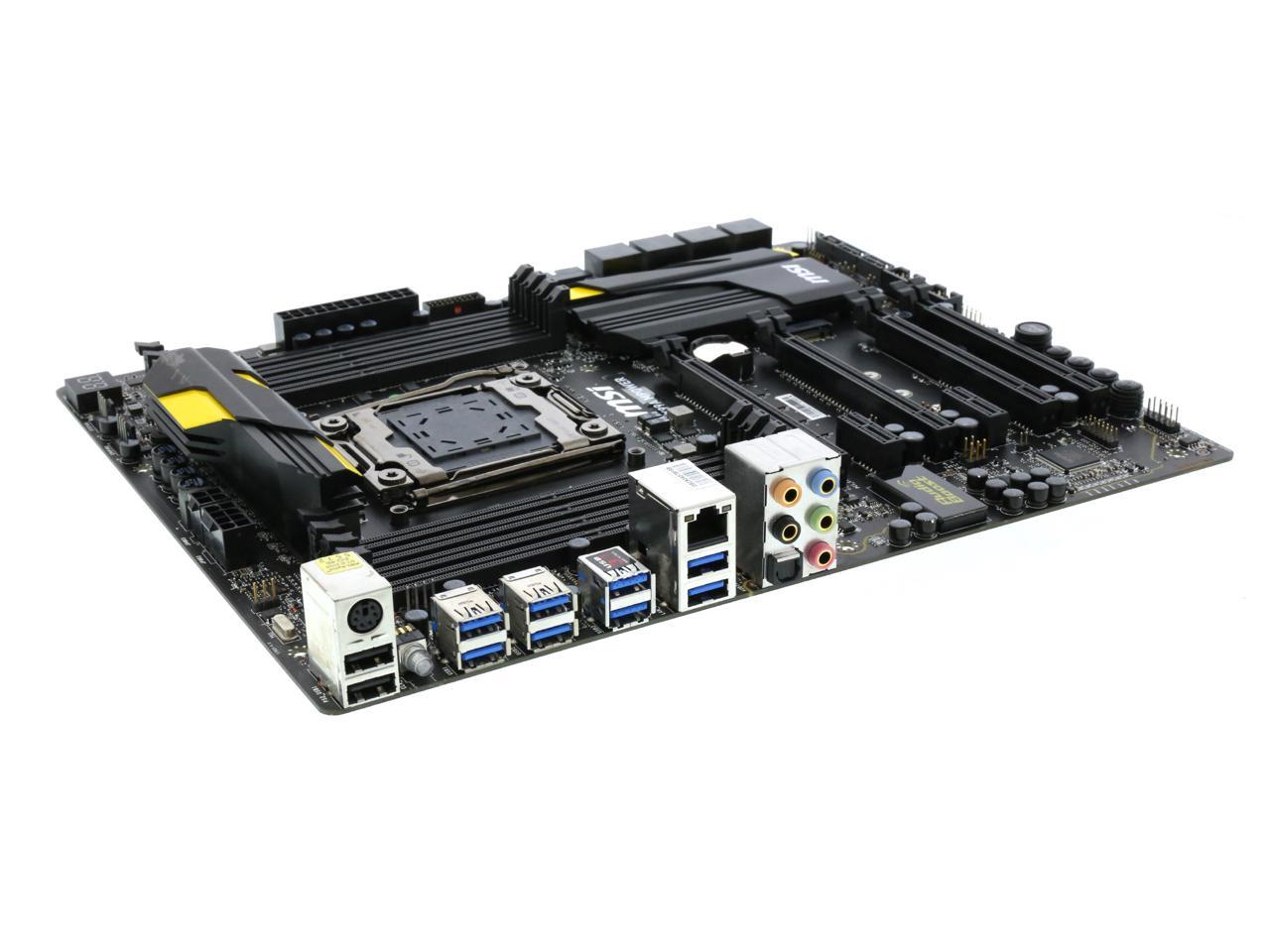

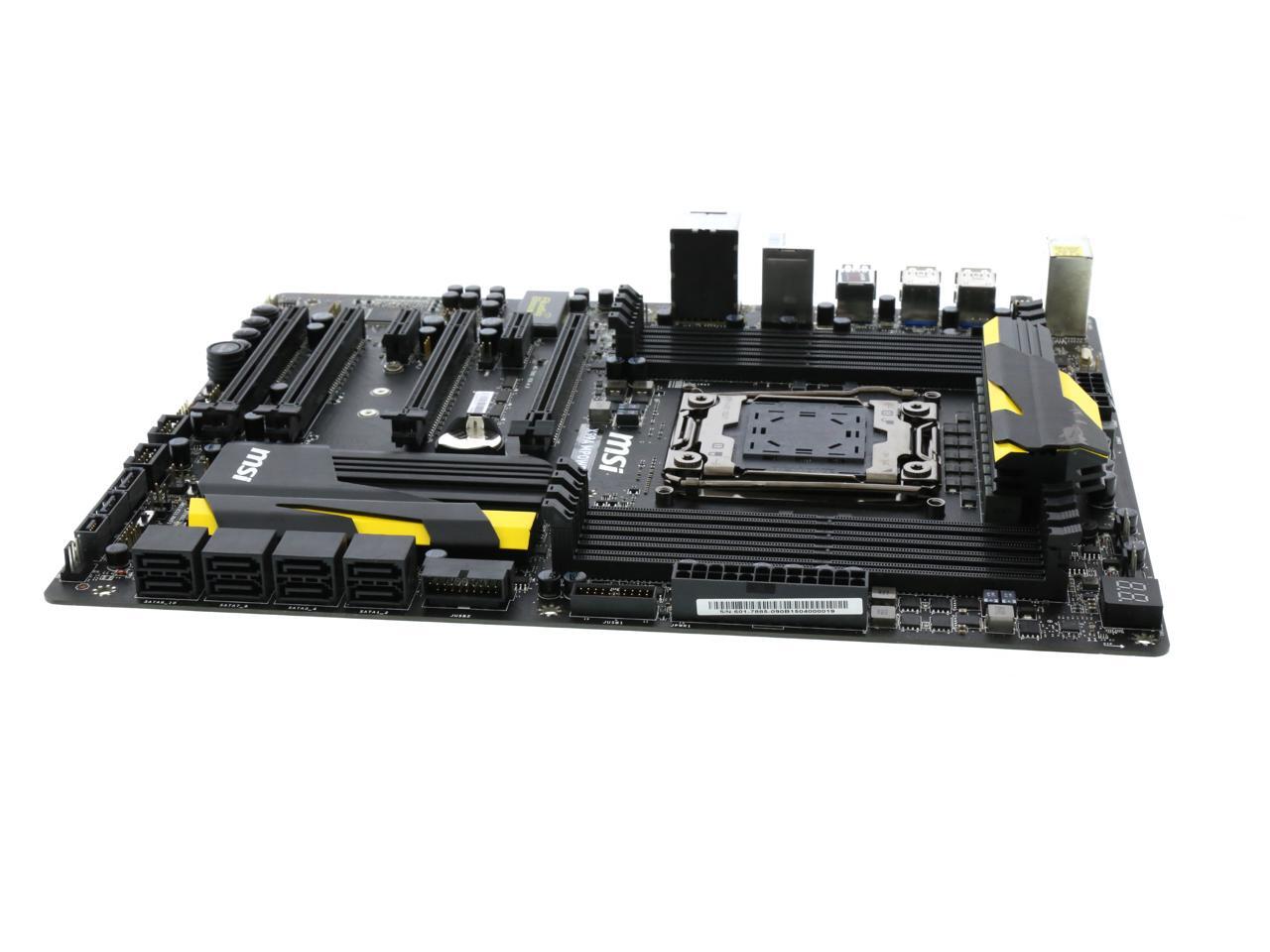

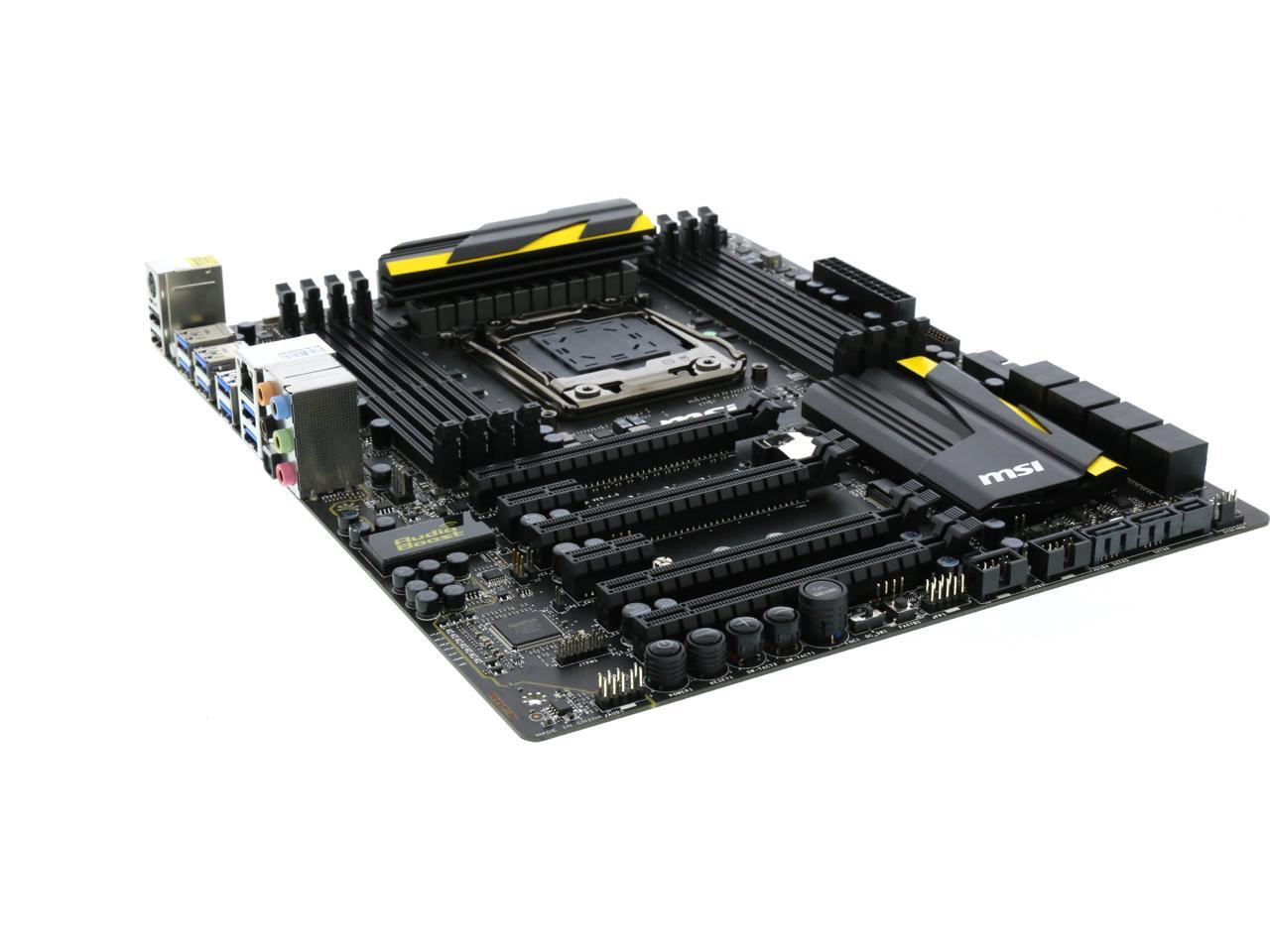

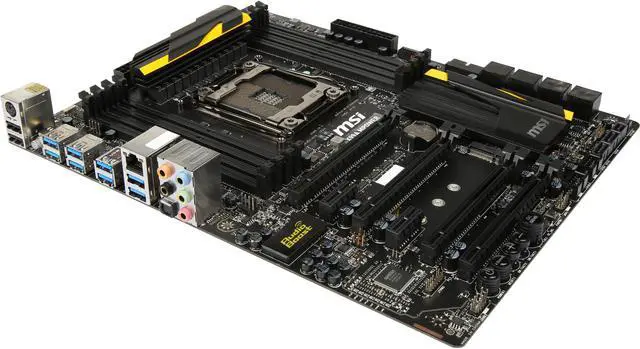

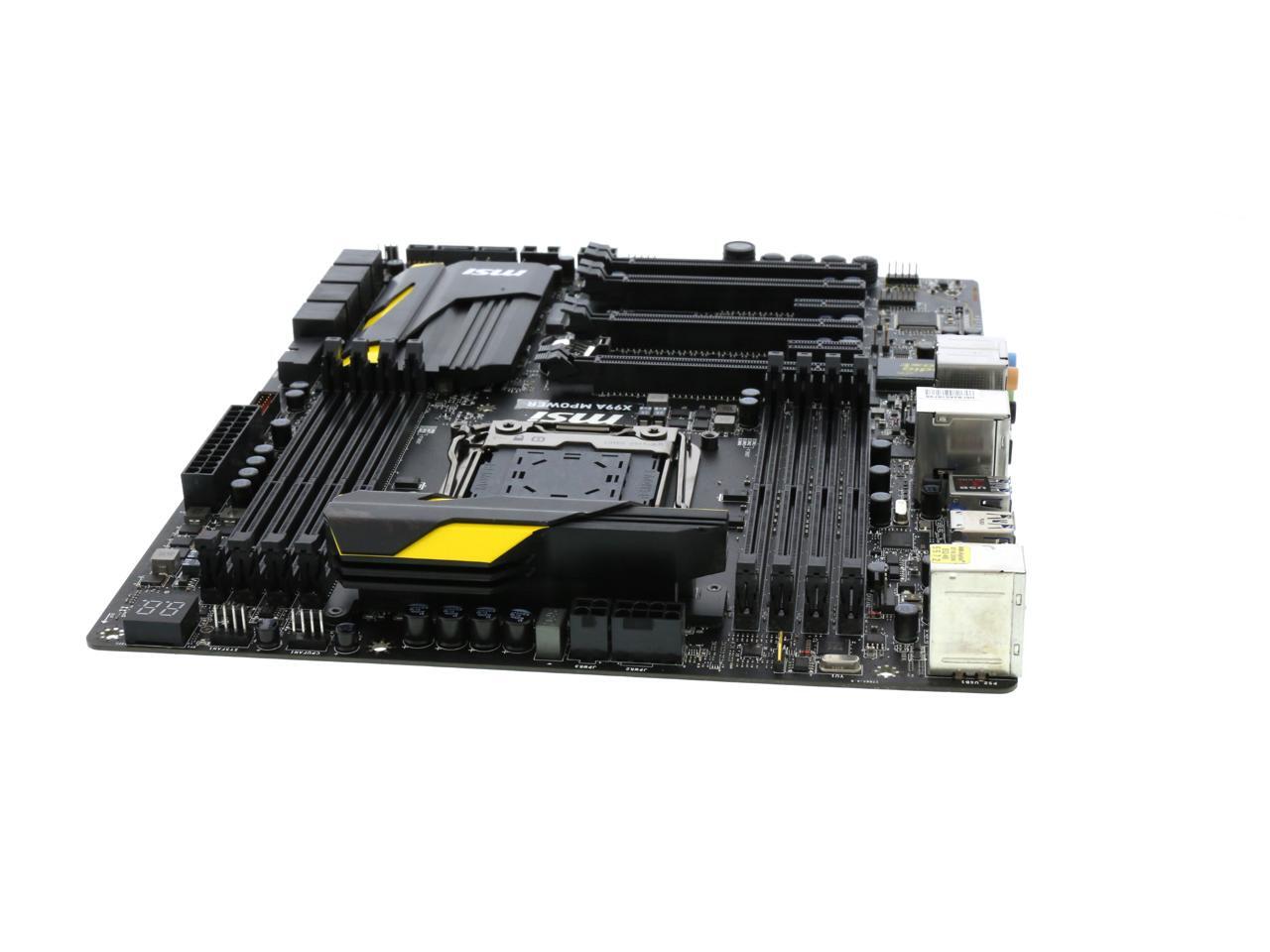

MSI X99A MPOWER COMES IN NORMAL MSI BOX NOT RETAIL BOX X99A MPOWER LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 ATX Intel Motherboard

REFURBISHED Product Type
(1) Write a Review
  • Intel X99
  • Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket
  • Please refer to CPU Support for compatible CPU; the above description is for reference only.
  • DDR4 3333*(*OC)/ 3110*/ 3000*/ 2750*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133
  • * Please refer to MSI Compatibility reports for more information of compatible memory
Specs
Reviews (1)

Learn more about the MSI X99A MPOWER

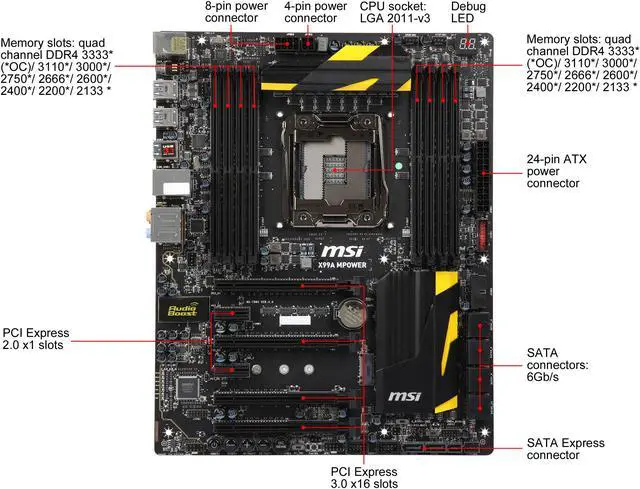

Model
Brand MSI
Series X99A MPOWER COMES IN NORMAL MSI BOX NOT RETAIL BOX
Model X99A MPOWER
Supported CPU
CPU Socket Type LGA 2011-v3
CPU Type Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipsets
Chipset Intel X99
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 8x288pin (DDR4)
Memory Standard DDR4 3333*(*OC)/ 3110*/ 3000*/ 2750*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133
* Please refer to MSI Compatibility reports for more information of compatible memory
Maximum Memory Supported 128GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 4 x PCIe 3.0 x16 slots (PCI_E1,3,5,6), support up to 3-way mode
- 1-way mode: x16/x0/x0/x0
- 2-way mode: x16/x16/x0/x0*, 16/x8/x0/x0**
- 3-way mode: x16/x16/x0/x8*, x8/x8/x8/x0**
* For the CPU that supports 40 PCIe lanes
** For the CPU that supports 28 PCIe lanes
PCI Express x1 2 x PCIe 2.0 x1 slots (PCI_E2,4)
Storage Devices
Serial ATA (SATA) 10 x SATA 6Gb/s ports (2 x ports reserved for SATA Express port)*
- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 ports only support IDE mode and AHCI mode
- Supports Intel Smart Response Technology (Windows 7/8/8.1)
SATA Express 1 x SATA Express port
M.2 1 x M.2 port, supports M.2 SATA 6Gb/s module* or M.2 PCIe module up to 32Gb/s speed**
- M.2 port supports 4.2cm/6cm/8cm length module
- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10
* The SATA Express port/ SATA5~6 ports will be unavailable when installing the M.2 SATA interface module in the M.2 port
** Intel RST does not support PCIe M.2 SSD with Legacy ROM
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I210-AT
Max LAN Speed 1Gbps

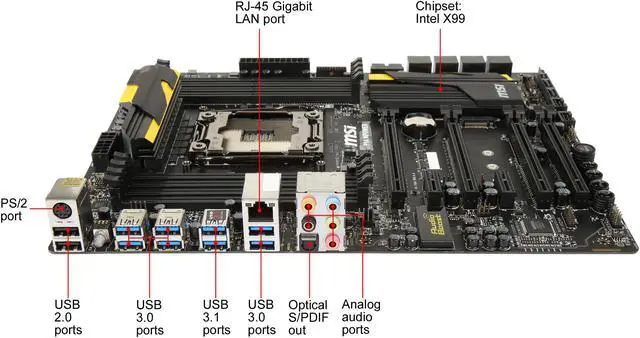

Rear Panel Ports

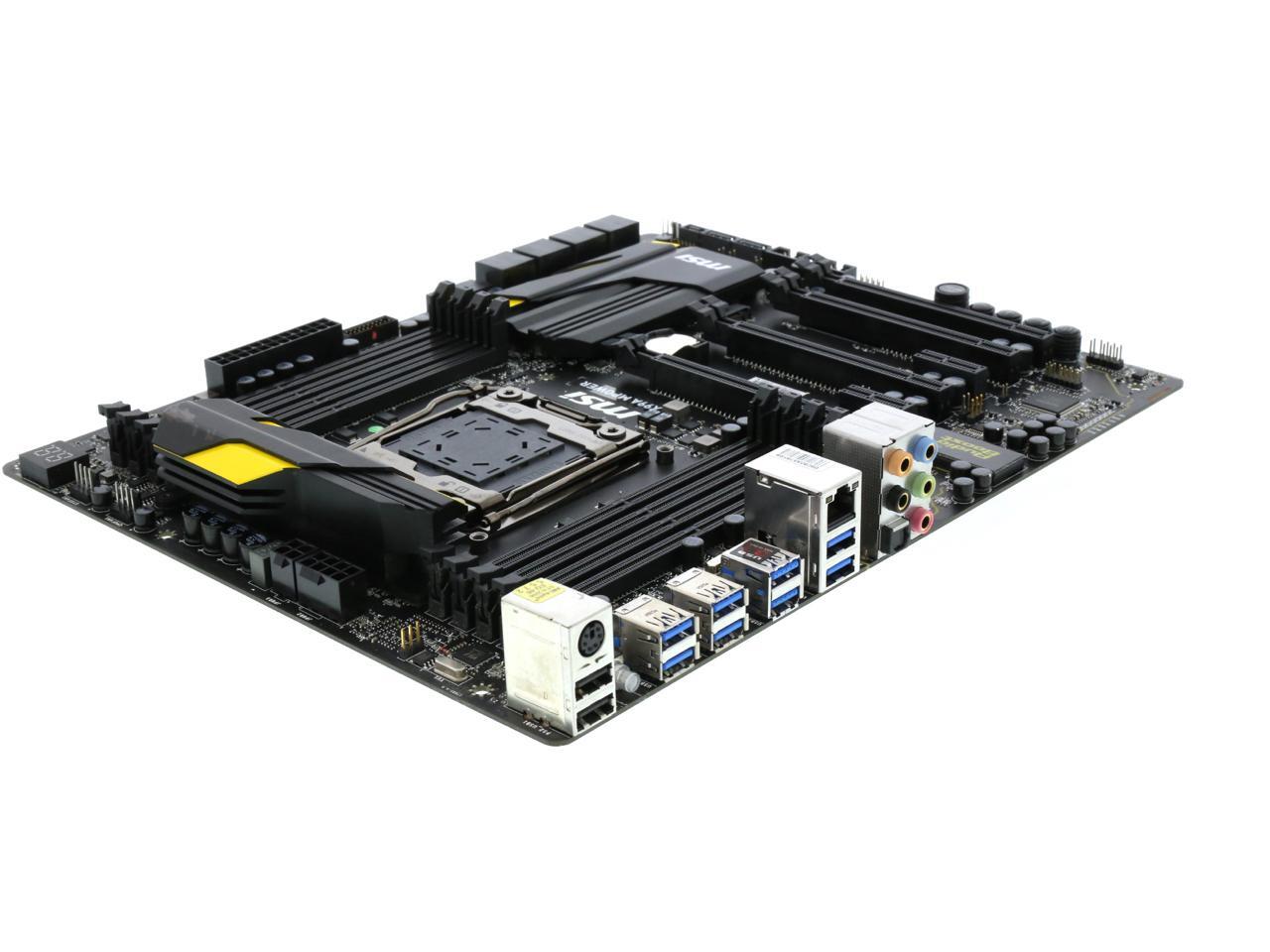

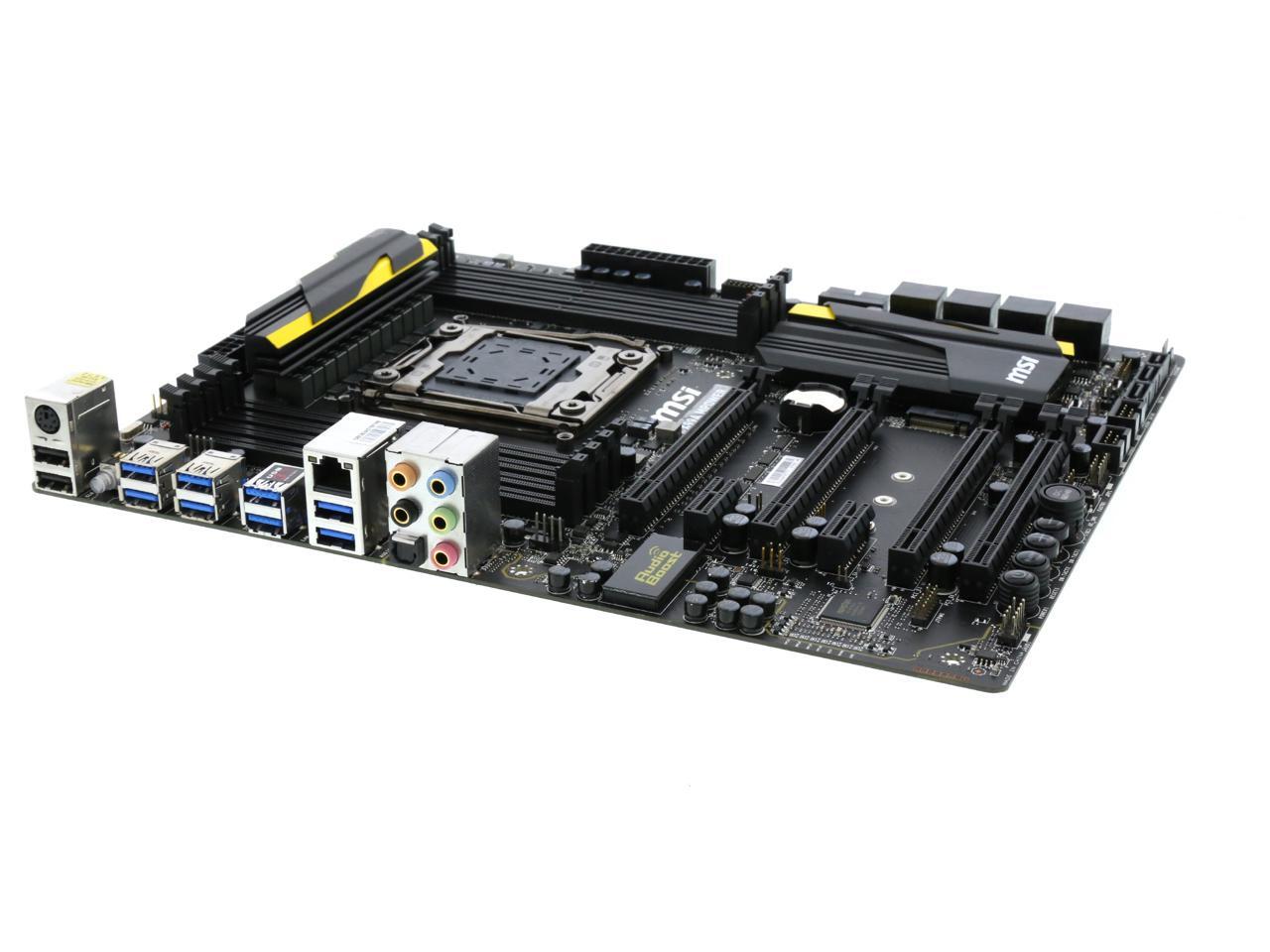

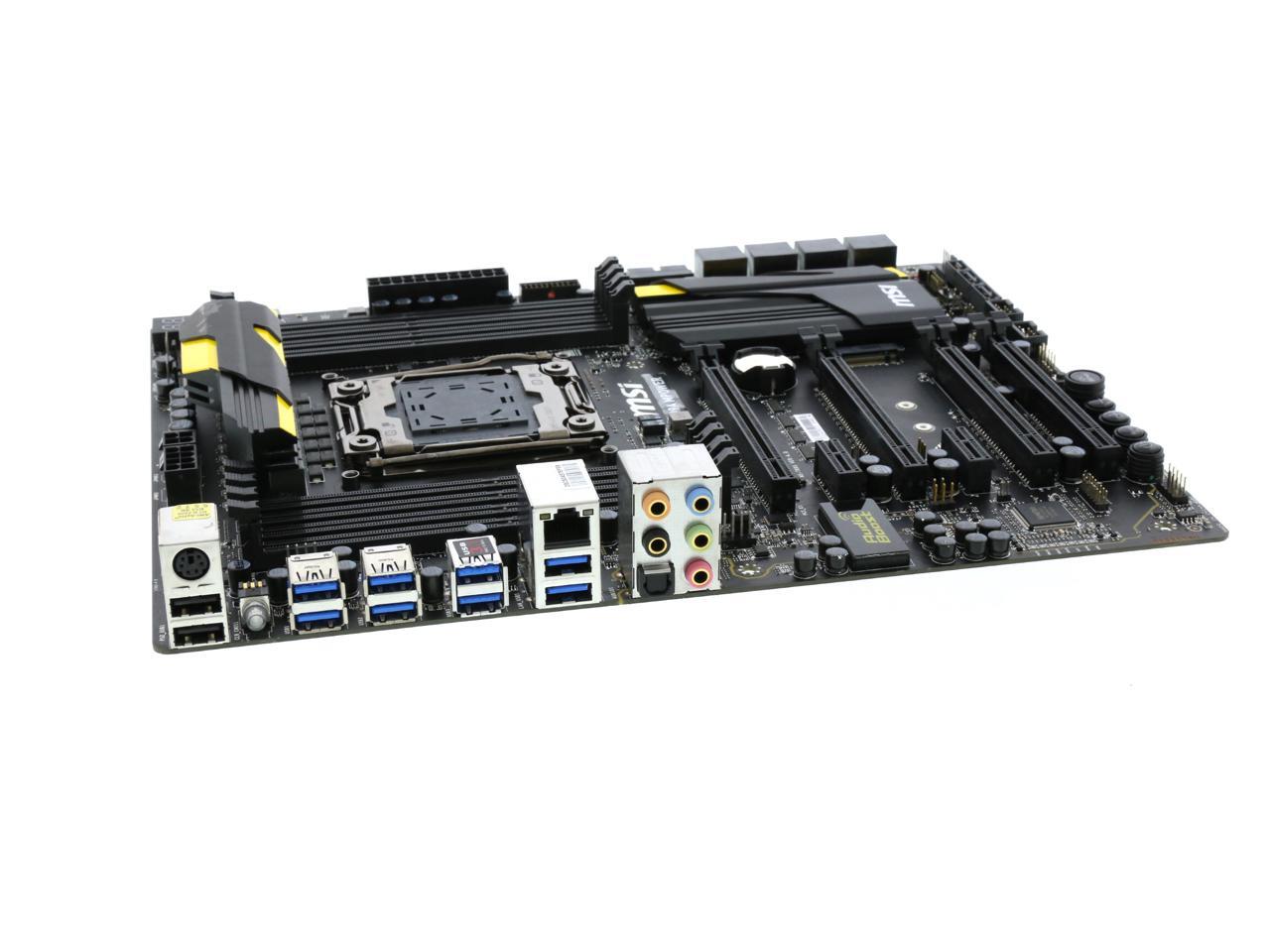

Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 2 Type-A / 6 x USB 3.0
PS/2 1 x PS/2 keyboard/mouse port
RJ45 1 x RJ45
USB 3.1 2 x USB 3.1
USB 3.0 6 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 1 x 5 in 1 OFC audio jack
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
Other Connectors 2 x 4-pin CPU fan connectors
3 x 4-pin system fan connectors
1 x Clear CMOS jumper
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x GO2BIOS button
1 x Power button
1 x Reset button
2 x Base Clock control buttons
1 x OC Genie button
1 x Multi-BIOS switch
1 x OC Genie mode switch
1x Slow mode booting switch
1x Slow mode booting jumper
1 x 2-Digit Debug Code LED
Physical Spec
Form Factor ATX

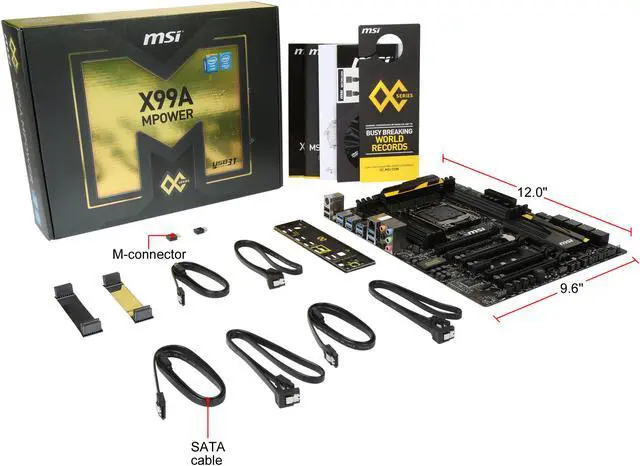

Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Features
Features Supports New Intel Core i7 processors Extreme Edition in LGA 2011-3 socket

Supports Quad Channel DDR4-3333(OC) Memory

USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection

Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32Gb/s

SATA Express + USB 3.1 + SATA 6Gb/s

Multi-GPU: NVIDIA Quad SLI & AMD Quad CrossFire Support

OC Engine: For More Flexible BCLK Adjustments

OC Certified: Military Class Burn-in Test Passed

Enhanced Thermal Design

Easy to Disable the VGA Card

Guard-Pro: Improved Protection and Power Efficiency

Military Class 4: Top Quality & Stability

OC Essentials: Convenient Set Of Overclocking Tools While Breaking World Records

Intel Gigabit LAN: Always connected with Intel Gigabit LAN networking

OC Genie 4: Overclock in 1 Second

Click BIOS 4: Easily Fine-tune Your System
Additional Information
First Listed on Newegg September 26, 2017
