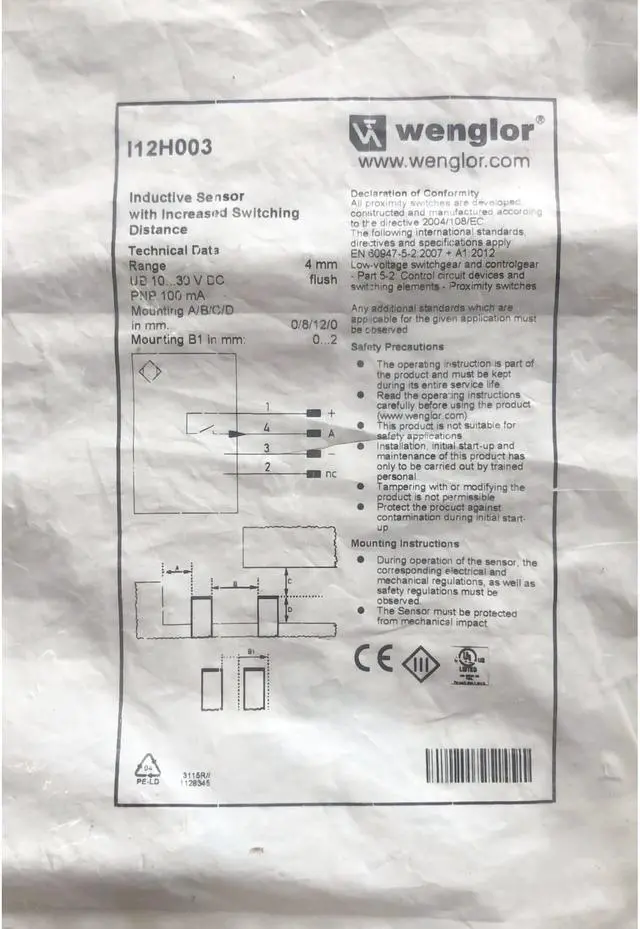

Wenglor Inductive Sensors I12H003 PNP
- Wenglor Inductive Sensors I12H003 PNP
- Inductive Data
+
+
Overview
Specs
Reviews
Wenglor Inductive Sensors I12H003 PNP
Inductive Data
Switching Distance 4 mm
Correction Factors Stainless Steel V2A/CuZn/Al 1,04/0,57/0,54
Mounting flush
Mounting A/B/C/D in mm 0/8/12/0
Mounting B1 in mm 0...2
Switching Hysteresis < 10 %
Electrical Data
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 6 mA
Switching Frequency 1150 Hz
Temperature Drift < 10 %
Temperature Range -40...80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III
Mechanical Data
Housing Material CuZn, nickel-plated
Degree of Protection IP67
Connection M12 × 1; 3-pin
Safety-relevant Data
MTTFd (EN ISO 13849-1) 3706,54 a
Function
Error Indicator yes
Output
PNP NO yes
Inductive Data
Switching Distance 4 mm
Correction Factors Stainless Steel V2A/CuZn/Al 1,04/0,57/0,54
Mounting flush
Mounting A/B/C/D in mm 0/8/12/0
Mounting B1 in mm 0...2
Switching Hysteresis < 10 %
Electrical Data
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 6 mA
Switching Frequency 1150 Hz
Temperature Drift < 10 %
Temperature Range -40...80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III
Mechanical Data
Housing Material CuZn, nickel-plated
Degree of Protection IP67
Connection M12 × 1; 3-pin
Safety-relevant Data
MTTFd (EN ISO 13849-1) 3706,54 a
Function
Error Indicator yes
Output
PNP NO yes
