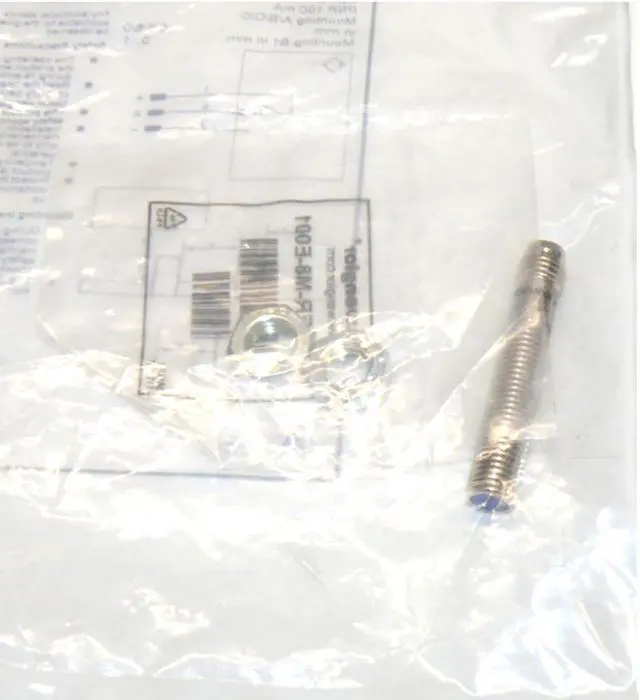

Wenglor Proximity Switch Sensor I08H021 PNP New
- Wenglor Proximity Switch Sensor I08H021 PNP New
+
+
Overview
Specs
Reviews
Wenglor Proximity Switch Sensor I08H021 PNP New
Switching Distance 6 mm
Correction Factors Stainless Steel V2A/CuZn/Al 1,11/0,58/0,57
Mounting non-flush

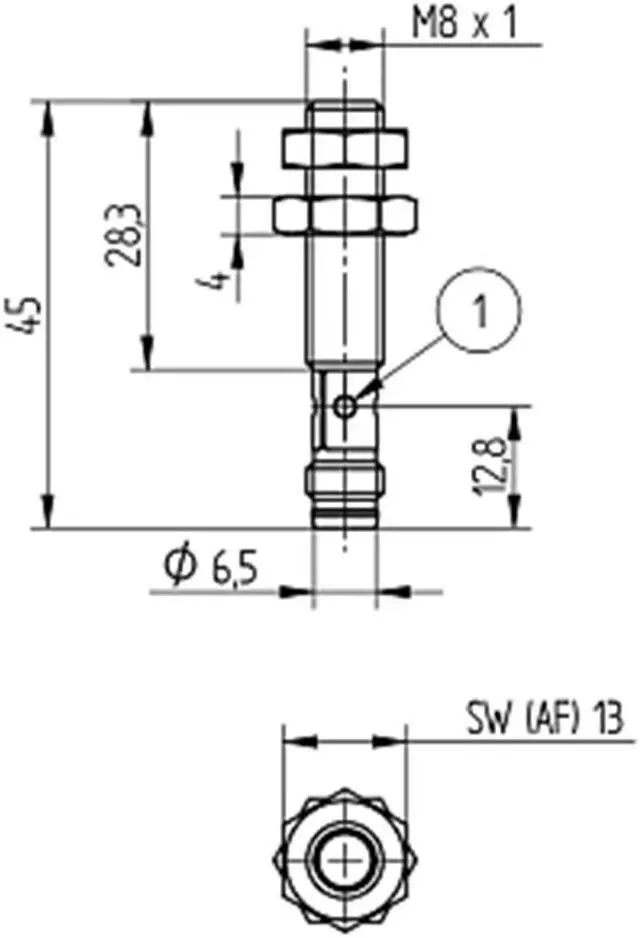

Mounting A/B/C/D in mm 8/22/18/12
Mounting B1 in mm 0...7
Switching Hysteresis < 10 %
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 11 mA
Switching Frequency 430 Hz
Temperature Drift < 10 %
Temperature Range -40...80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III
Housing Material CuZn, nickel-plated
Degree of Protection IP67
Connection M8 × 1; 3-pin
PNP NO yes
Error Indicator yes
MTTFd (EN ISO 13849-1) 3706,54 a
Switching Distance 6 mm
Correction Factors Stainless Steel V2A/CuZn/Al 1,11/0,58/0,57
Mounting non-flush
Mounting A/B/C/D in mm 8/22/18/12
Mounting B1 in mm 0...7
Switching Hysteresis < 10 %
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 11 mA
Switching Frequency 430 Hz
Temperature Drift < 10 %
Temperature Range -40...80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III
Housing Material CuZn, nickel-plated
Degree of Protection IP67
Connection M8 × 1; 3-pin
PNP NO yes
Error Indicator yes
MTTFd (EN ISO 13849-1) 3706,54 a
