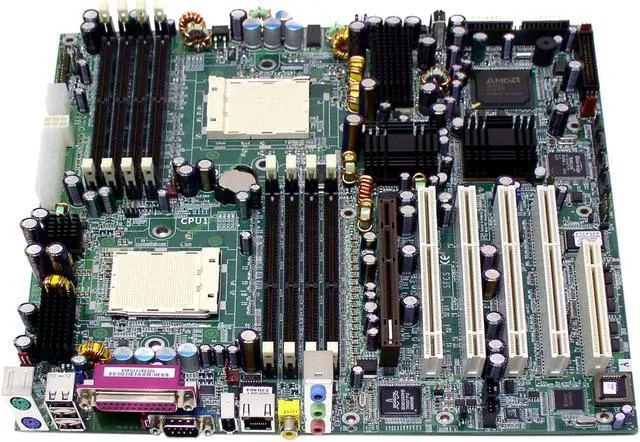

TYAN S2885ANRF SSI EEB 3.0 Server Motherboard Dual 940 AMD 8131 + 8151

(11) Write a Review
  • Dual 940
  • AMD 8131 + 8151
  • 8 x 184Pin
Specs
Reviews (11)

Learn more about the TYAN S2885ANRF

Model
Brand TYAN
Model S2885ANRF
Supported CPU
CPU Socket Type Dual 940
CPU Type AMD Opteron
Chipsets
North Bridge AMD 8131 + 8151
South Bridge AMD 8111
Memory
Number of DDR Slots 8 x 184Pin
DDR Standard DDR 400 (PC 3200)
Maximum Memory Supported 16GB
ECC Supported Yes
Registered Yes
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Slots 1 x PCI Slot
Storage Devices
SATA 4 x SATA 1.5Gb/s
SATA RAID 0/1/0+1
Additional RAID Controller Sil 3114
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset AD1981B
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Broadcom 5703C
LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 3 x USB 1.1
IEEE 1394 1 x IEEE 1394a
Audio Ports 3 Ports
Onboard Ports
Onboard USB 2 x USB 1.1
Onboard 1394 1 x 1394a
Features
Features Total of six 3-pin fan headers with tachometer monitoring
Four fan headers with (PWM) speed control
One 2-pin Chassis Intrusion header
Temperature, voltage and fan monitoring
Dimensions
Form Factor SSI EEB 3.0
Dimensions (W x L) 12" x 13"
Packaging

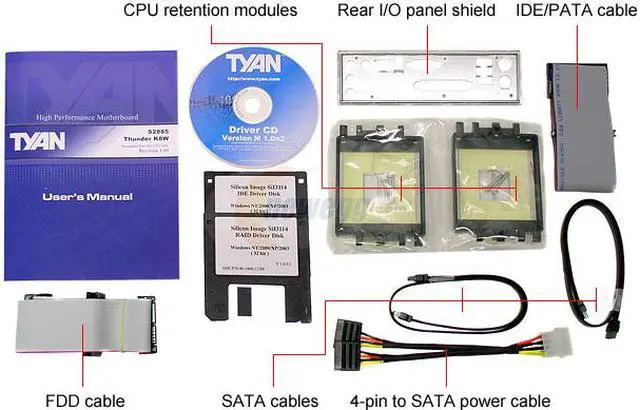

Package Contents S2885ANRF
User Manual
Software Disk
2 x Driver Floppy Disk
Rear I/O Panel Shield
IDE Cable
FDD Cable
2 x SATA Cable
Power Cable
2 x CPU Clip
Additional Information
First Listed on Newegg November 05, 2003

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
