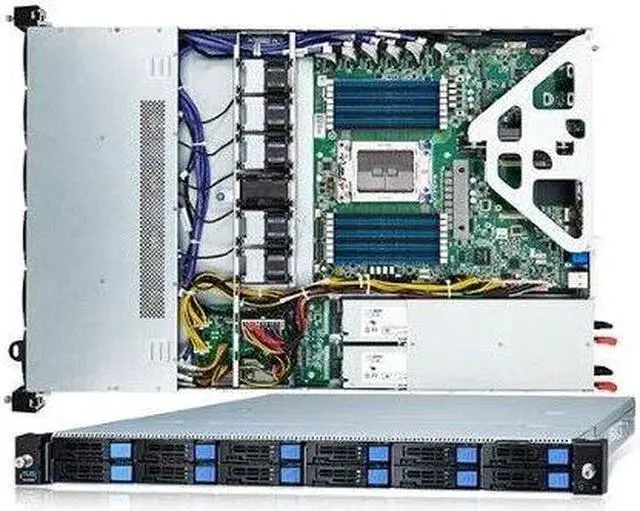

Learn more about the TYAN B8036G68AE12HR
General| Brand | TYAN |
|---|
| Model | B8036G68AE12HR |
|---|
| Form Factor | 1U Rackmount |
|---|
CPU Supported| CPU Type | Supports AMD EPYC 7002/7003 Series Processor |
|---|
| CPU Socket | Socket SP3 |
|---|
| Installed CPU | No CPU Installed |
|---|
| Max Processors | 1 |
|---|
Memory Supported| Memory Slots | 16 x 288Pin |
|---|
| Installed Memory Size | No Memory Installed |
|---|
| Max Memory Supported | Up to 2,048GB (128GB x 16) / LRDIMM DDR4 3200 w/ ECC up to 4,096GB (256GB x 16) / 3DS DDR4 3200 w/ ECC up to 4,096GB (256 x 16) |
|---|
| Memory Type Supported | DDR4 3200 |
|---|
| ECC Supported | Yes |
|---|
Storage Supported| Installed HDD | No Storage Installed |
|---|
Graphics| GPU/VPU | Aspeed AST2500 |
|---|
Expansion Slots| PCI Express | (1) PCIe Gen.4 x16 slot (FH/HL)
(1) PCIe Gen.4 x16 slot (HH/HL) |
|---|
Communications| First LAN | Broadcom BCM5720 |
|---|
| Max. LAN Speed | 10 Gigabit |
|---|
Expansion Bays| Hot-Swap Bays | (12) 2.5" hot-swap NVMe HDD/SSDs with (4) 2.5" hot-swap SATA 6Gb/s |
|---|
Panel Ports| COM | (1) DB-9 port (COM1) + (1) header (COM2) |
|---|
| VGA | (1) D-Sub 15-pin |
|---|
| Rear USB | (1) USB3.1 Gen.1 port (Type-A) / (2) USB3.1 Gen.1 ports (via Cable) / (2) USB3.1 Gen.1 ports (@ rear) |
|---|
| RJ45 | (2) GbE ports + (1) GbE dedicated for IPMI |
|---|
Power Supply| Max. Power | 850 Watts 80 plus Platinum
Redundancy 1+1 |
|---|
Dimensions & Weight| Dimensions | 1.69" x 17.26" x 26.77" |
|---|
| Weight | 23.50 lbs. |
|---|
Additional Information| First Listed on Newegg | February 22, 2026 |
|---|
