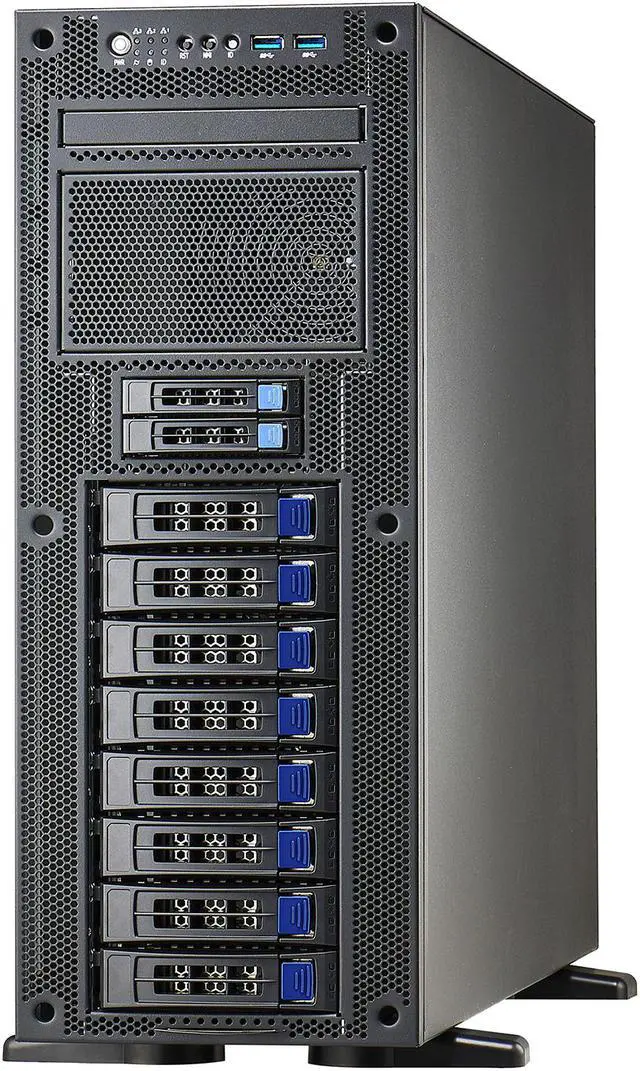

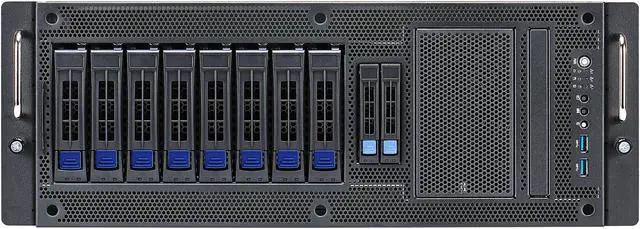

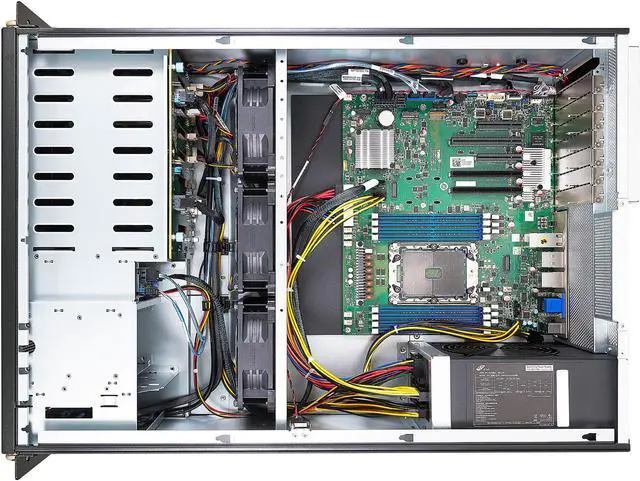

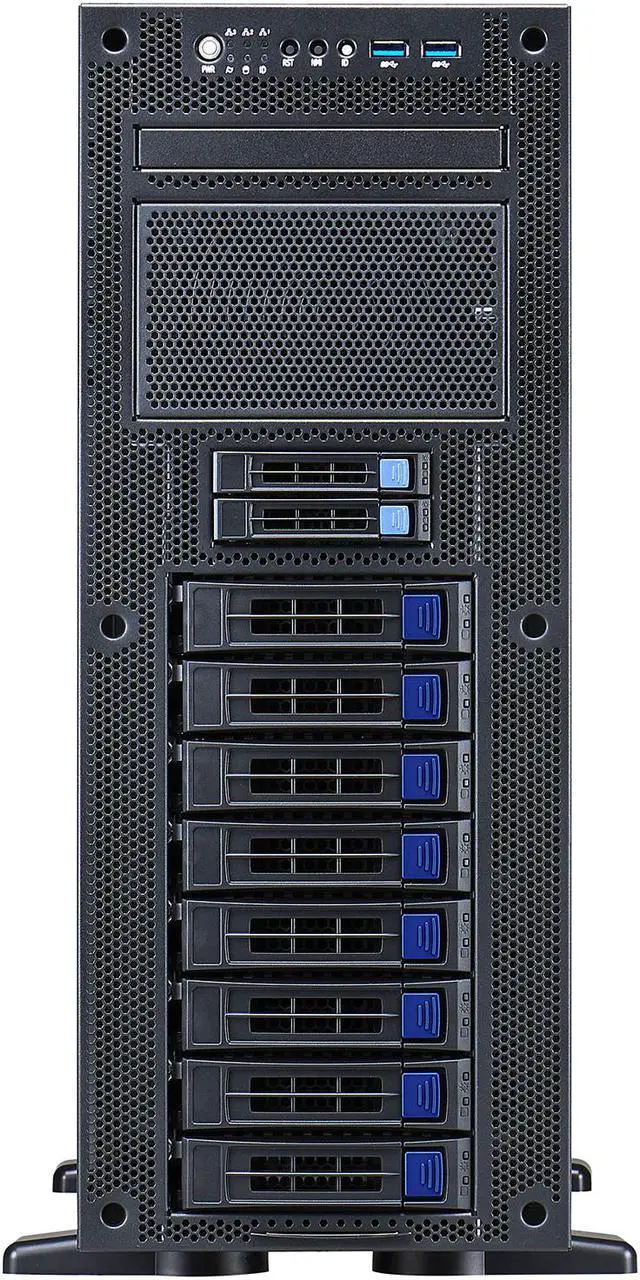

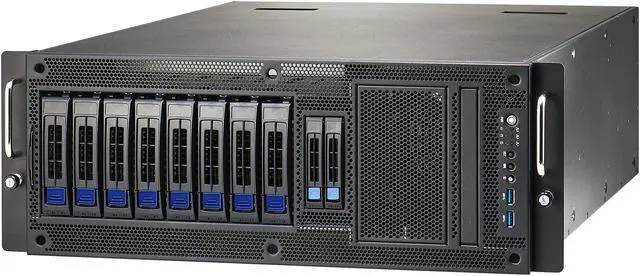

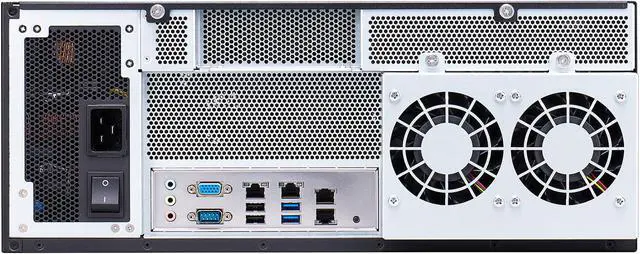

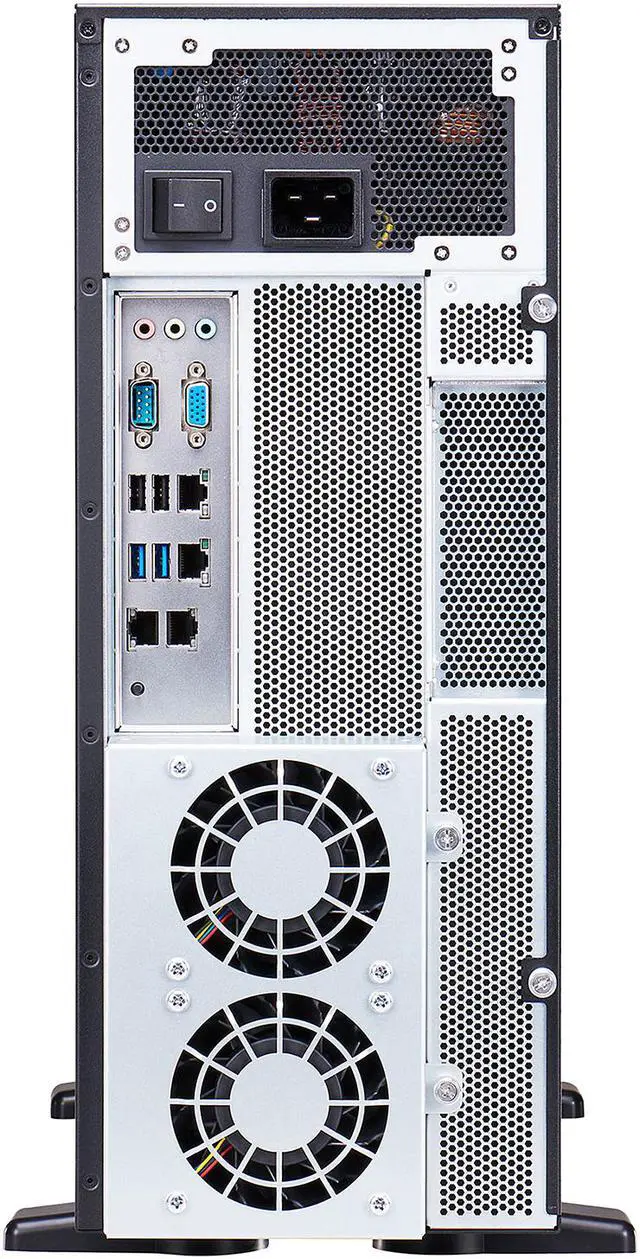

TYAN B5642F65TV8E2H-G 4U Tower Server Barebone, Single Socket 3rd Generation Intel Skylake Xeon Based GPU 4U Rackmount & Pedestal Server
- Single Socket 3rd Generation Intel Icelake Xeon based GPU 4U rackmount & pedestal server.
- Dimensions: H176mm x W438mm x D650mm (25.5")
- Intel Ice Lake-SP Xeon processor w/ TDP up to 270W
- Memory
- (8) DDR4 DIMM slots (8 memory channels)
- Supporting up to 2TB RDIMM/LRDIMM DDR4-3200
- PCIe Expansion Slots
- Slot 1: PCIe Gen 4.0 x0 or x8 (MUX with Slot 2)
- Slot 2: PCIe Gen 4.0 x16 or x8 (MUX with Slot 1)
- Slot 3: PCIe Gen 4.0 x4
- Slot 4: PCIe Gen 4.0 x16
- Slot 5: PCIe Gen 4.0 x16
- Network
- (2) 1000Base-T LAN Ports (Intel i210)
- (1) 1000Base-T Dedicated IPMI Port (Realtek TRL8211 PHY)
- Storage
- (8) hot-swap 3.5" SATA 6G Drive Bays
- (2) hot-swap 2.5" PCIe Gen 3.0 x4 U.2 NVMe & SATA 6G Drive Bays
- (2) PCIe Gen 4.0 2280/22110 NVMe M.2 ports
- AST2500 BMC with iKVM, IPMI, and Redfish support
- 2,000W ATX Power Supply, 80+ Platinum
- Optional Rackmount Rail Kit & Chassis Ears
Specs
Reviews
Learn more about the TYAN B5642F65TV8E2H-G
| Brand | TYAN |
|---|---|
| Model | B5642F65TV8E2H-G |
| Form Factor | 4U Tower |
| CPU Type | Supports 3rd Gen Intel Xeon Scalable Processor |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | Intel C621A |
|---|
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Up to 1,024GB RDIMM/ 2,048GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
| Memory Type Supported | DDR4 RDIMM/LRDIMM 3200 |
| Channel Supported | 8 Channel |
| Installed HDD | No Storage Installed |
|---|---|
| SATA RAID | RAID 0/1/10/5 (Intel RSTe) |
| SAS | (2) Mini-SAS HD (8-ports) |
| GPU/VPU | Aspeed AST2500 |
|---|
| PCI Express | (1) PCIe Gen.4 x8 slot (#4 w/x4 link) / (1) PCe Gen.4 x8 slot (#2 via MUX) / (1) PCIe Gen.4 x16 slot (#3 w/x8 link) / (2) PCIe Gen.4 x16 slots (#5,#6) |
|---|
| First LAN | Intel I210 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | (2) 2.5" Hot-Swap NVMe HDD/SSDs / (8) 3.5" Hot-swap HDD/SSDs |
|---|
| COM | (1) DB-9 COM port |
|---|---|
| VGA | (1) D-Sub 15-pin port |
| Rear USB | (2) USB2.0 ports (@ rear) / (2) USB3.0 ports (@ rear) / (2) USB3.0 ports (via cable) |
| RJ45 | (1) GbE ports + (1) GbE dedicated for IPMI |
| Rear Audio Ports | (1) 2x5-pin header / (1) 3 holes Audio Jack connector |
| Temperature | Operating Temp.: 0°C ~ 40°C (32°F~ 104°F) Non-operating Temp.: -40°C ~ 70°C (-40°F ~ 158°F) |
|---|---|
| Humidity | 90%, non-condensing at 35°C |

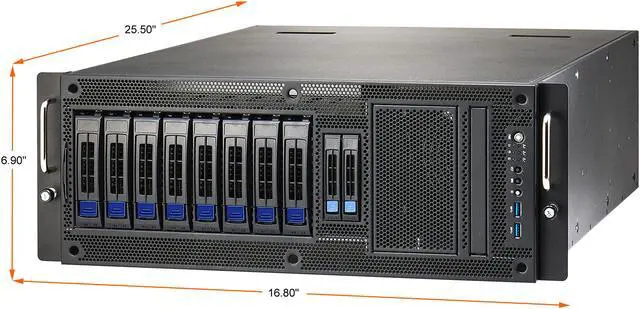

| Dimensions | 6.90" x 16.80" x 25.50" |
|---|
| First Listed on Newegg | May 18, 2022 |
|---|
