TURCK Ni75U-Q80-AP6X2-H1141 1625855 Inductive sensor PNP
- TURCK Ni75U-Q80-AP6X2-H1141 1625855 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK Ni75U-Q80-AP6X2-H1141 1625855 Inductive sensor PNP
Order number: 1625855
Rectangular, height 40 mm
Active face on top
Plastic, PBT-GF30-V0
4 LEDs for optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-attenuation
Partially embeddable
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin DE
Weight 367 g
Technical Data
Design Rectangular

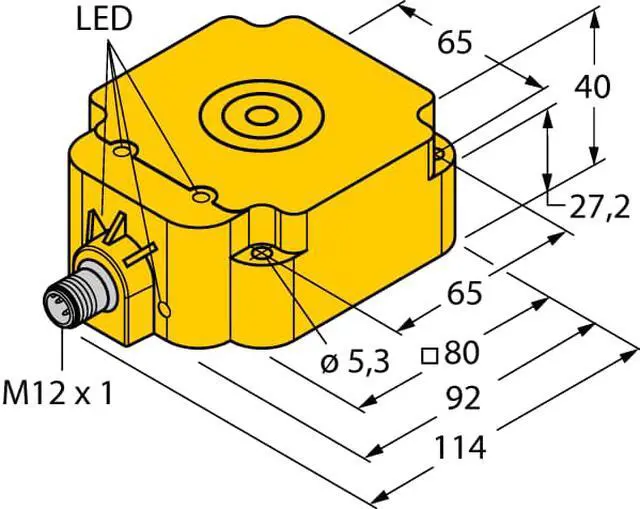

Construction size Rectangular, Q80, 92 x 80 x 40 mm
Rated switching distance 75
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Yellow
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 1625855
Rectangular, height 40 mm
Active face on top
Plastic, PBT-GF30-V0
4 LEDs for optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-attenuation
Partially embeddable
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin DE
Weight 367 g
Technical Data
Design Rectangular
Construction size Rectangular, Q80, 92 x 80 x 40 mm
Rated switching distance 75
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Yellow
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
