TURCK NI75U-CP80-VN4X2 1540810 Inductive sensor NPN
- TURCK NI75U-CP80-VN4X2 1540810 Inductive sensor NPN
+
+
Overview
Specs
Reviews
TURCK NI75U-CP80-VN4X2 1540810 Inductive sensor

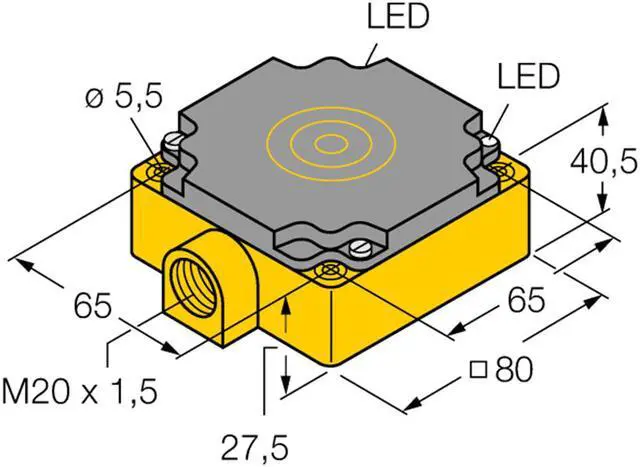

NPN Order number: 1540810 Rectangular, height 41 mm Plastic, PBT-GF30-V0 Factor 1 for all metals Resistant to magnetic fields Large coverage Extended temperature range High switching frequency DC 4-wire, 10…65 VDC Changeover contact, NPN output Terminal chamber Country of origin DE Weight 268 g Technical Data Design Rectangular Construction size Rectangular, CP80, 80 x 80 x 41 mm Rated switching distance 75 Operating voltage DC Switching element function Complementary contact Output function NPN Electrical connection Terminal chamber Housing material Plastic Housing quality PBT-GF30-V0 Mounting Non-flush Special features uprox®+, -Factor 1, -Resistant to magnetic fields
NPN Order number: 1540810 Rectangular, height 41 mm Plastic, PBT-GF30-V0 Factor 1 for all metals Resistant to magnetic fields Large coverage Extended temperature range High switching frequency DC 4-wire, 10…65 VDC Changeover contact, NPN output Terminal chamber Country of origin DE Weight 268 g Technical Data Design Rectangular Construction size Rectangular, CP80, 80 x 80 x 41 mm Rated switching distance 75 Operating voltage DC Switching element function Complementary contact Output function NPN Electrical connection Terminal chamber Housing material Plastic Housing quality PBT-GF30-V0 Mounting Non-flush Special features uprox®+, -Factor 1, -Resistant to magnetic fields
