TURCK NI6U-EG08-AP6X-V1131 4635801Inductive sensor PNP
Order number: 4635801

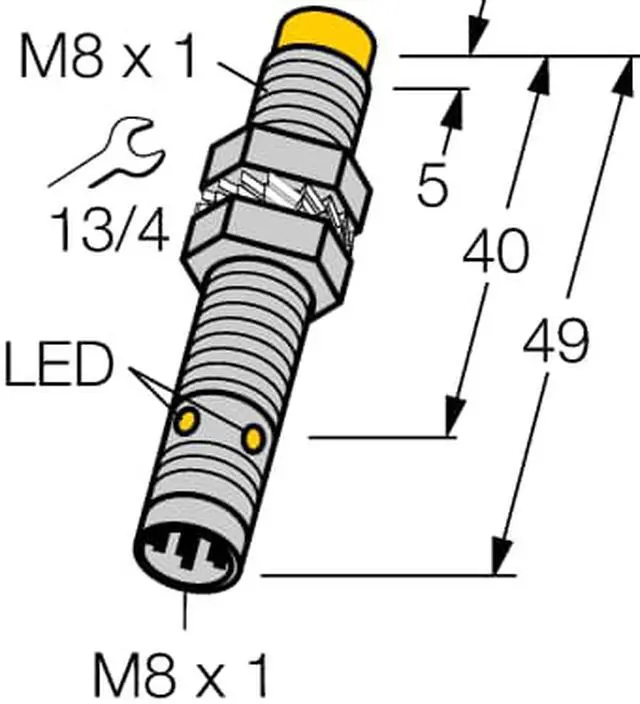

Threaded barrel, M8 x 1
Stainless steel, 1.4427 SO
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
High switching frequency
Integrated protection against pre-attenuation
Little metal-free spaces
DC 3-wire, 10…30 VDC
NO contact, PNP output
M8 x 1 male connector
Country of origin CH
Weight 18 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M8 × 1
Rated switching distance 6
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M8 × 1
Housing material Stainless steel
Housing quality 1.4427 SO
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 4635801
Threaded barrel, M8 x 1
Stainless steel, 1.4427 SO
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
High switching frequency
Integrated protection against pre-attenuation
Little metal-free spaces
DC 3-wire, 10…30 VDC
NO contact, PNP output
M8 x 1 male connector
Country of origin CH
Weight 18 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M8 × 1
Rated switching distance 6
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M8 × 1
Housing material Stainless steel
Housing quality 1.4427 SO
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
