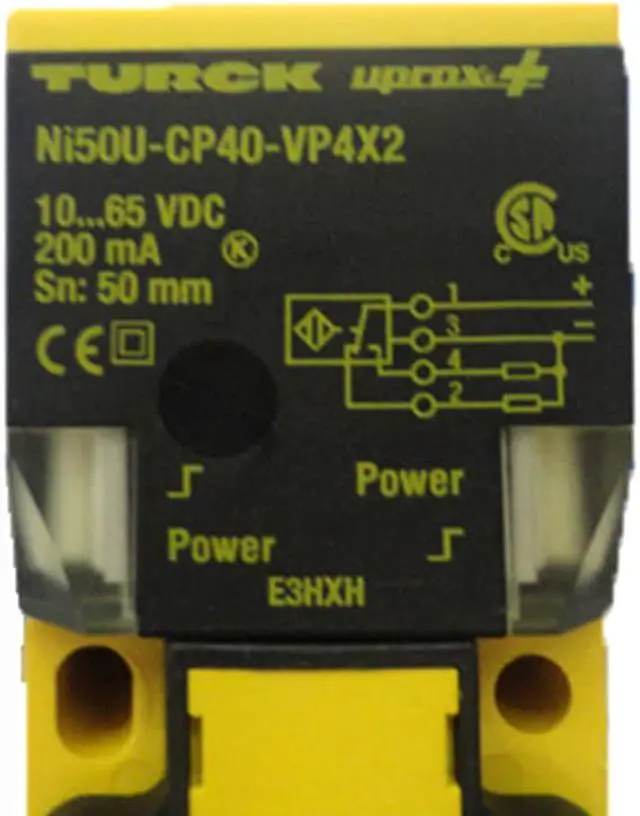

TURCK NI50U-CP40-VP4X2 1538303 Inductive sensor PNP

TURCK NI50U-CP40-VP4X2 1538303 Inductive sensor PNP
Order number: 1538303
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-attenuation
Partially embeddable
DC 4-wire, 10…65 VDC
Changeover contact, PNP output
Terminal chamber



Country of origin DE
Weight 204 g
Technical Data
Design Rectangular

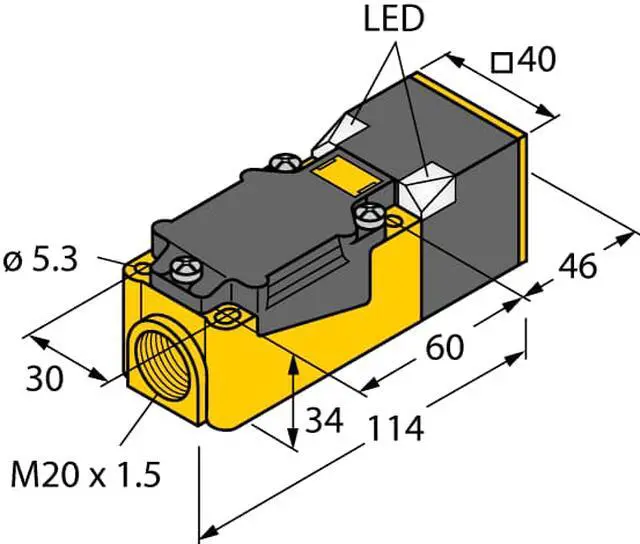

Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 50
Operating voltage DC
Switching element function Complementary contact
Output function PNP
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
