TURCK Ni50U-CP40-AP6X2 1625831 Inductive sensor PNP
- TURCK Ni50U-CP40-AP6X2 1625831 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK Ni50U-CP40-AP6X2 1625831 Inductive sensor PNP
Order number: 1625831
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-attenuation
Partially embeddable
DC 3-wire, 1030 VDC
NO contact, PNP output
Terminal chamber
Country of origin DE
Weight 203 g
Technical Data
Design Rectangular

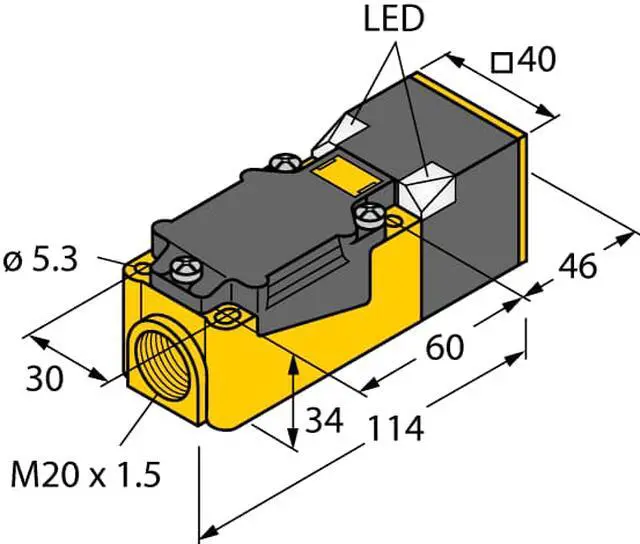

Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 50
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
Order number: 1625831
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Resistant to magnetic fields
Auto-compensation protects against pre-attenuation
Partially embeddable
DC 3-wire, 1030 VDC
NO contact, PNP output
Terminal chamber
Country of origin DE
Weight 203 g
Technical Data
Design Rectangular
Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 50
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
