TURCK NI4U-EG08-AN6X-V1131 4600630 Inductive sensor NPN

TURCK NI4U-EG08-AN6X-V1131 4600630 Inductive sensor NPN
Order number: 4600630

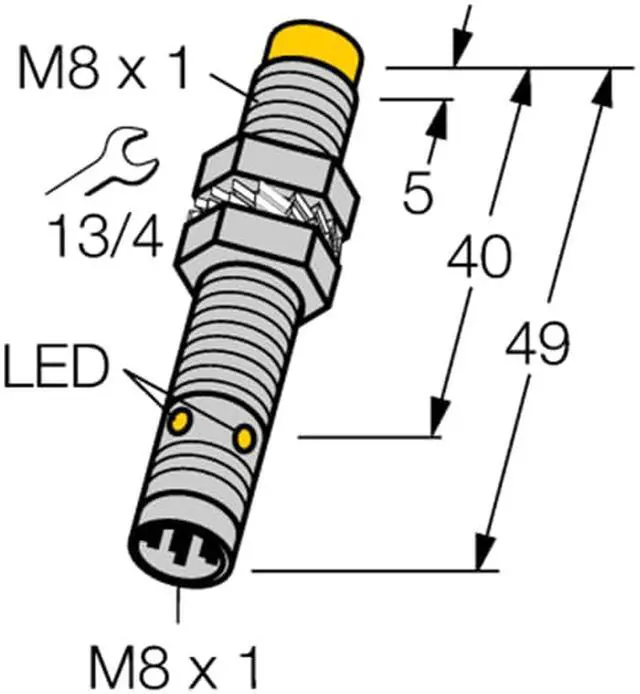

Threaded barrel, M8 x 1
Stainless steel, 1.4427 SO
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 1030 VDC
NO contact, NPN output
M8 x 1 male connector

Country of origin CH
Weight 18 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M8 × 1
Rated switching distance 4
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M8 × 1
Housing material Stainless steel
Housing quality 1.4427 SO
Mounting Non-flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
