TURCK NI40U-CP40-AP6X2 1623600 Inductive sensor PNP

TURCK NI40U-CP40-AP6X2 1623600 Inductive sensor

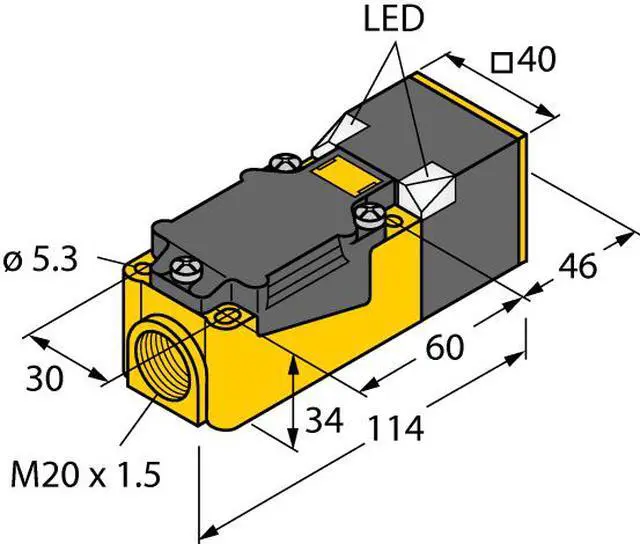

PNP Order number: 1623600 Rectangular, height 40 mm Variable orientation of active face in 9 directions Plastic, PBT-GF30-V0 High luminance corner LEDs Optimum view on supply voltage and switching state from any position Factor 1 for all metals Increased switching distance Protection class IP68 Large coverage Resistant to magnetic fields Extended temperature range High switching frequency DC 3-wire, 10…30 VDC NO contact, PNP output Terminal chamber Country of origin DE Weight 203 g Technical Data Design Rectangular Construction size Rectangular, CP40, 114 x 40 x 40 mm Rated switching distance 40 Operating voltage DC Switching element function NO contact Output function PNP Electrical connection Terminal chamber Housing material Plastic Housing quality PBT-GF30-V0 Housing surface Black Mounting Non-flush Special features uprox®+, -Sn +, -Factor 1
