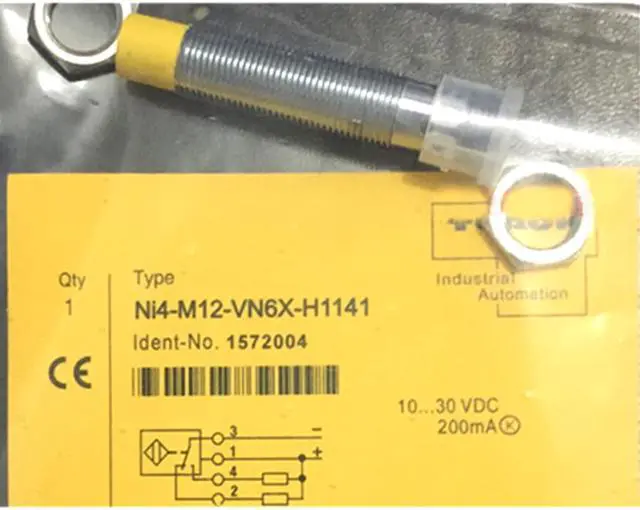

TURCK Ni4-M12-VN6X-H1141 1633103 Inductive sensor NPN
- TURCK Ni4-M12-VN6X-H1141 1633103 Inductive sensor NPN
+
+
Overview
Specs
Reviews
TURCK Ni4-M12-VN6X-H1141 1633103 Inductive sensor NPN
Order number: 1633103

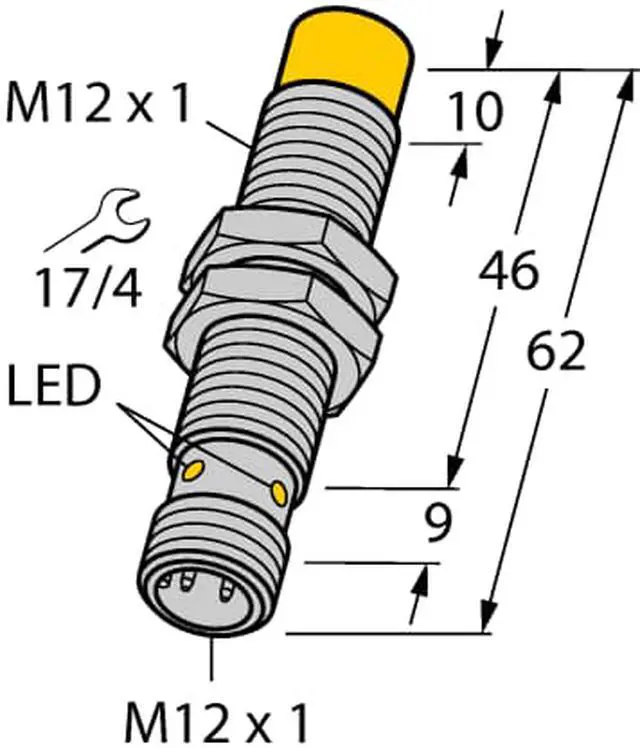

M12 × 1 threaded barrel
Long version
Chrome-plated brass
DC 4-wire, 1030 VDC
Changeover contact, NPN output
M12 x 1 male connector
Country of origin DE
Weight 30 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M12 × 1
Rated switching distance 4
Operating voltage DC
Switching element function Complementary contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Order number: 1633103
M12 × 1 threaded barrel
Long version
Chrome-plated brass
DC 4-wire, 1030 VDC
Changeover contact, NPN output
M12 x 1 male connector
Country of origin DE
Weight 30 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M12 × 1
Rated switching distance 4
Operating voltage DC
Switching element function Complementary contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
