TURCK NI35U-CK40-ADZ30X2-T 4280443 Inductive sensor

TURCK NI35U-CK40-ADZ30X2-T 4280443 Inductive sensor
Order number: 4280443
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Only use the included plastic clip BS4-CK40
Factor 1 for all metals
Increased switching distance
Protection class IP68
Large coverage
Resistant to magnetic fields
Extended temperature range
High switching frequency
AC 2-wire, 20…250 VDC
DC 2-wire, 10…300 VDC
NO contact
Cable connection

Country of origin DE
Weight 190 g
Technical Data
Design Rectangular

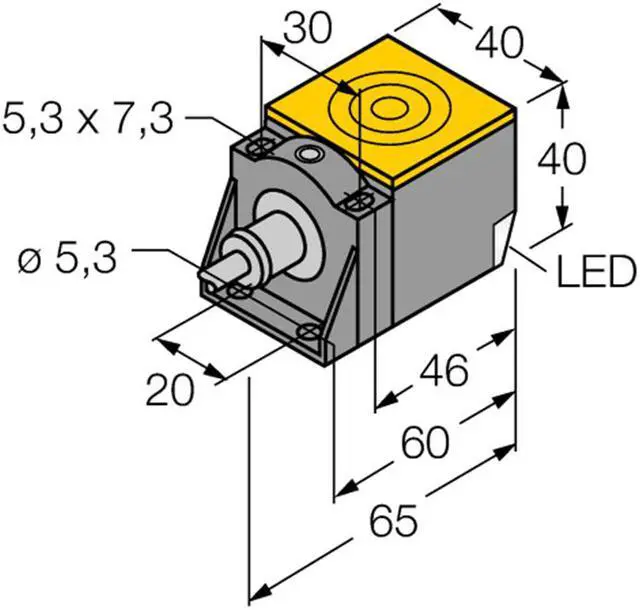

Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 35
Operating voltage AC/DC
Switching element function NO contact
Electrical connection Cables
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+,-Sn +,-Factor 1
