TURCK Ni35-CP40-FZ3X2 13403 Inductive sensor
- TURCK Ni35-CP40-FZ3X2 13403 Inductive sensor
+
+
Overview
Specs
Reviews

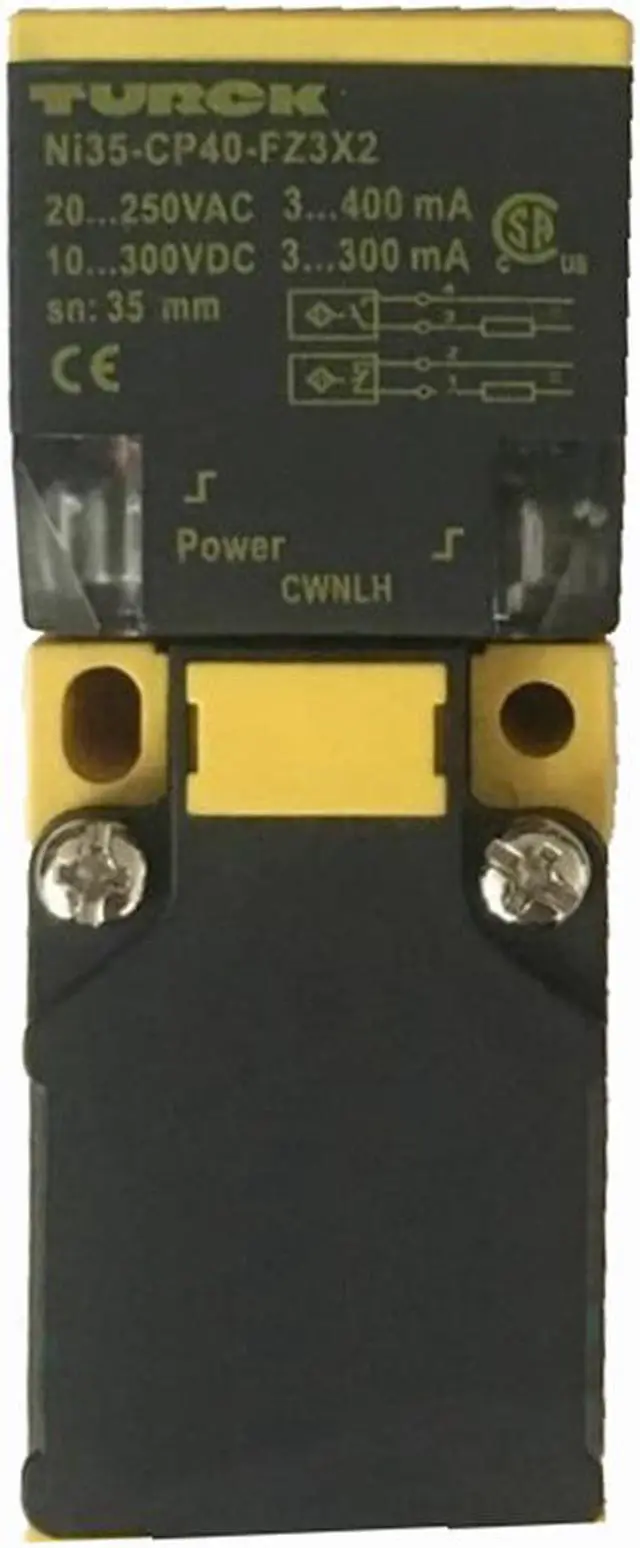

TURCK Ni35-CP40-FZ3X2 13403 Inductive sensor
Order number: 13403
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
AC 2-wire, 20…250 VDC
DC 2-wire, 10…300 VDC
NC/NO programmable
Terminal chamber
Country of origin DE
Weight 226 g
Technical Data
Design Rectangular

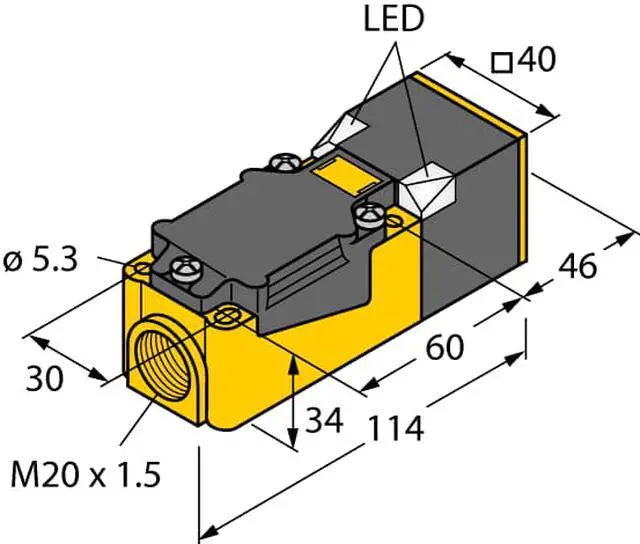

Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 35
Operating voltage AC/DC
Switching element function Connection programmable
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Order number: 13403
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
AC 2-wire, 20…250 VDC
DC 2-wire, 10…300 VDC
NC/NO programmable
Terminal chamber
Country of origin DE
Weight 226 g
Technical Data
Design Rectangular
Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 35
Operating voltage AC/DC
Switching element function Connection programmable
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
