TURCK NI35-CK40-AP6X2-H1141 1626400 Inductive sensor PNP
Order number: 1626400
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Large sensing range
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin DE
Weight 171 g
Technical Data
Design Rectangular

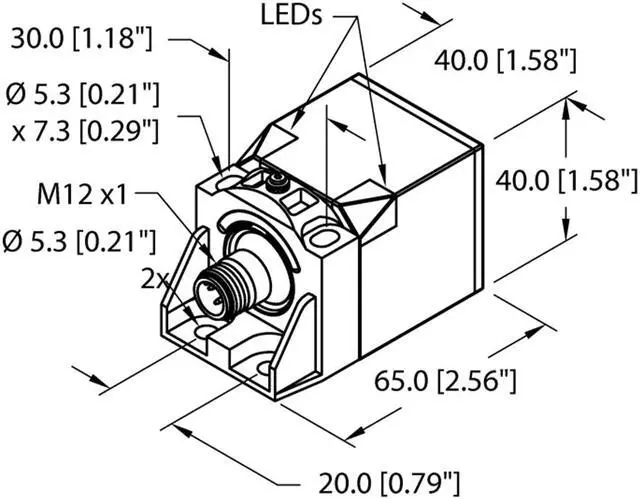

Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 35
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Non-flush
Special features Sn +
